MIDSECTION
5-9
1-/ 2-Cylinder
Installation
1. lnstall the tiller steering assembly.
2. Connct throttle cable(s) (or throttle shaft).
3. Adjust screw
(12)
by tightening or loosening it to
obtain proper grip turning resistance.
9.9/15/18 Linkage Adjustment
Adjustment of Throttle Mechanism
CAUTION
Make this adjustment only after fitting the power
unit to the lower unit.
CAUTION
Apply grease on sliding parts and ball joints of
the advancer arm bushing.
CAUTION
Adjust link rods 5-60L and 5-65L as shown in
figure [8] prior to adjusting ignition timing.

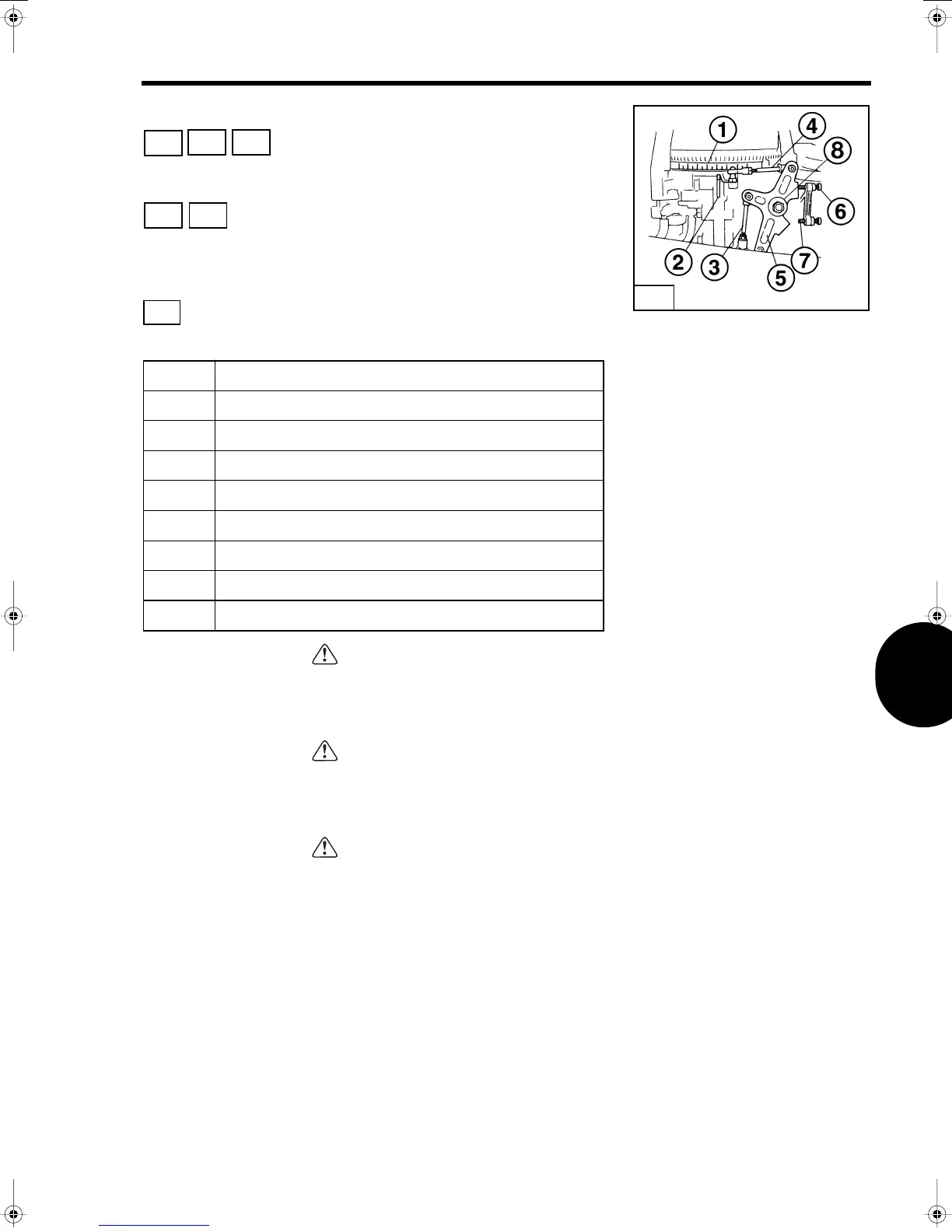

Item Description
1. Timing Mark
2. Ignition Timing Inspection Line
3. Link Rod 5-65L
4. Link Rod 5-60L
5. Advancer Arm
6. Stopper Bolt (Fully-open)
7. Stopper Bolt (Fully-closed)
8. M8 Nylon Nut
2
3 4
2 3
7
T2002
7
To Next Page
