TOHATSU 2 Stroke Cylinder Series User Manual

SECTION 7
7-60
1-/ 2-Cylinder

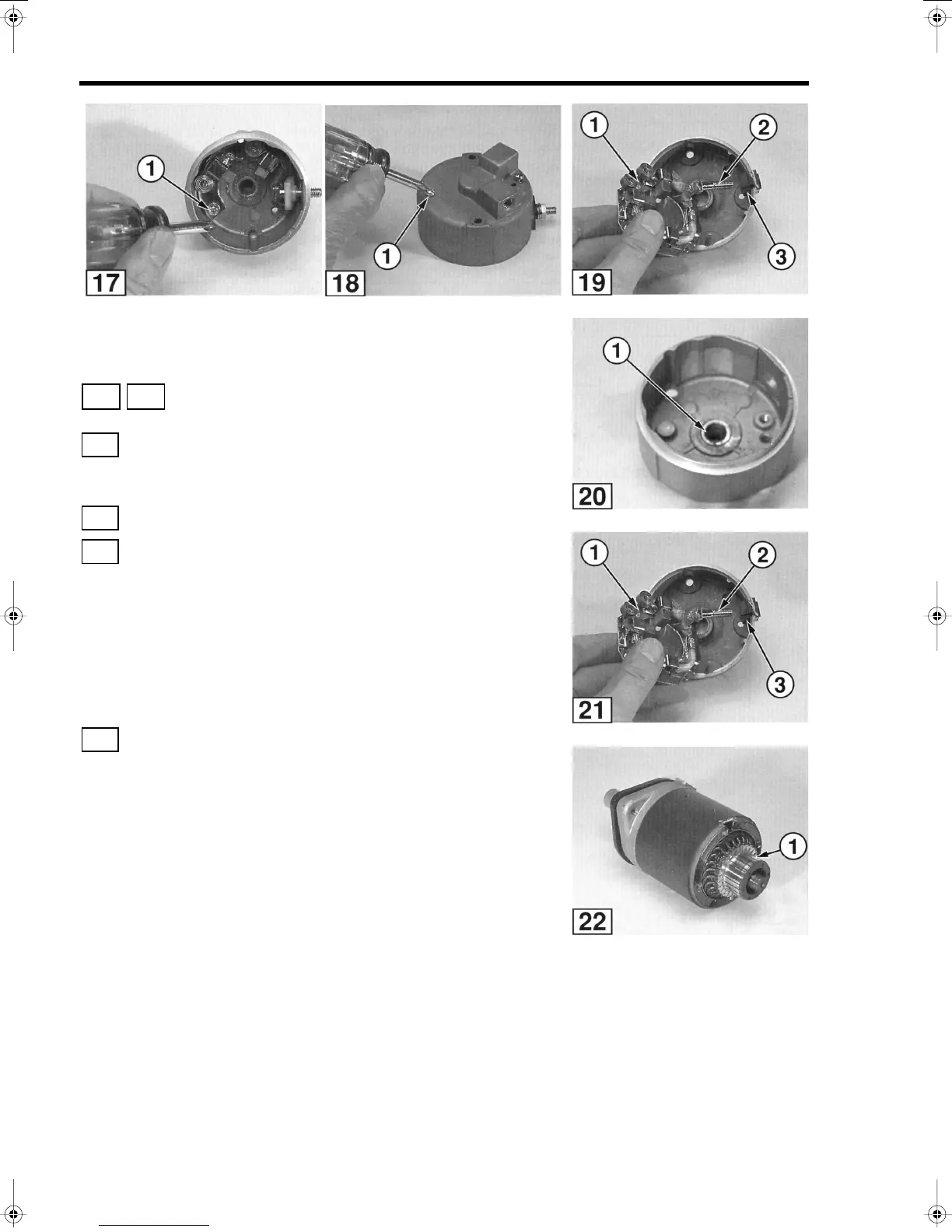

Remove Brush Assembly
1. Remove screws (1) .
Remove brush assembly
(1) carefully guiding the starter
motor terminal
(2) through the bushing (3) .
Install Brush Assembly
1. Apply genuine grease to bearing cup (1) .
2. Install brush assembly
(1) . Make sure that the starter motor
terminal
(2) is fully seated in the bushing (3) .
Assemble Starter Motor
NOTE
Bolts for models 25 / 30 / 40 may not be available as
separate parts. Check current Parts Catalog for
availability.
1. Clean commutator (1) with fine emery cloth.
T1526
17 18
19
20
21
22
T1530
T1531
T1530
T1535
T1529
