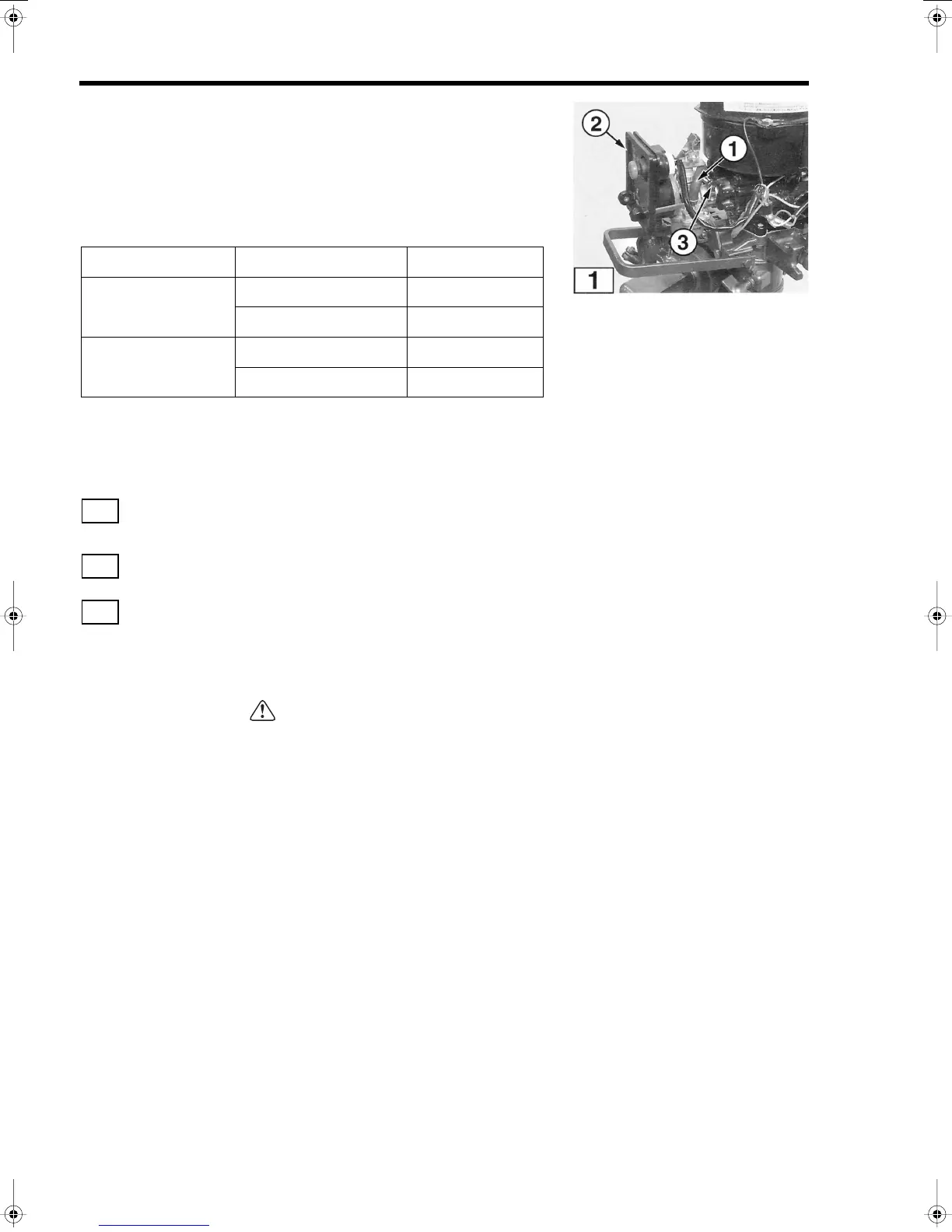

1-/ 2-Cylinder
CARBURETORS
Two basic types of carburetors are used; the round slide valve type
used on the 2.5 and 3.5 horsepower engines, and the butterfly valve
type used on 5 horsepower and up.
Slide Carburetor Specifications
Removal
1. Remove motor cover.
2. Turn off fuel supply fuel cock and remove fuel hose
(1) from
carburetor.
3. Remove carburetor cover (2) .
4. Loosen clamp bolt
(3) and remove carburetor.
Disassembly
CAUTION
Use the following precautions during carburetor
disassembly:
• Use correct size screwdrivers to avoid damaging
the carburetor jets.
Model Item Specifications
2.5A / 3.5A / 3.5B
Main Jet #92
Jet Needle Clip Groove 2nd from bottom
2.5A
2
/ 3.5A
2
/ 3.5B
2
Main Jet #86
Jet Needle Clip Groove 2nd from bottom
1
1
1
