SECTION 7
7-12
1-/ 2-Cylinder
Charging System

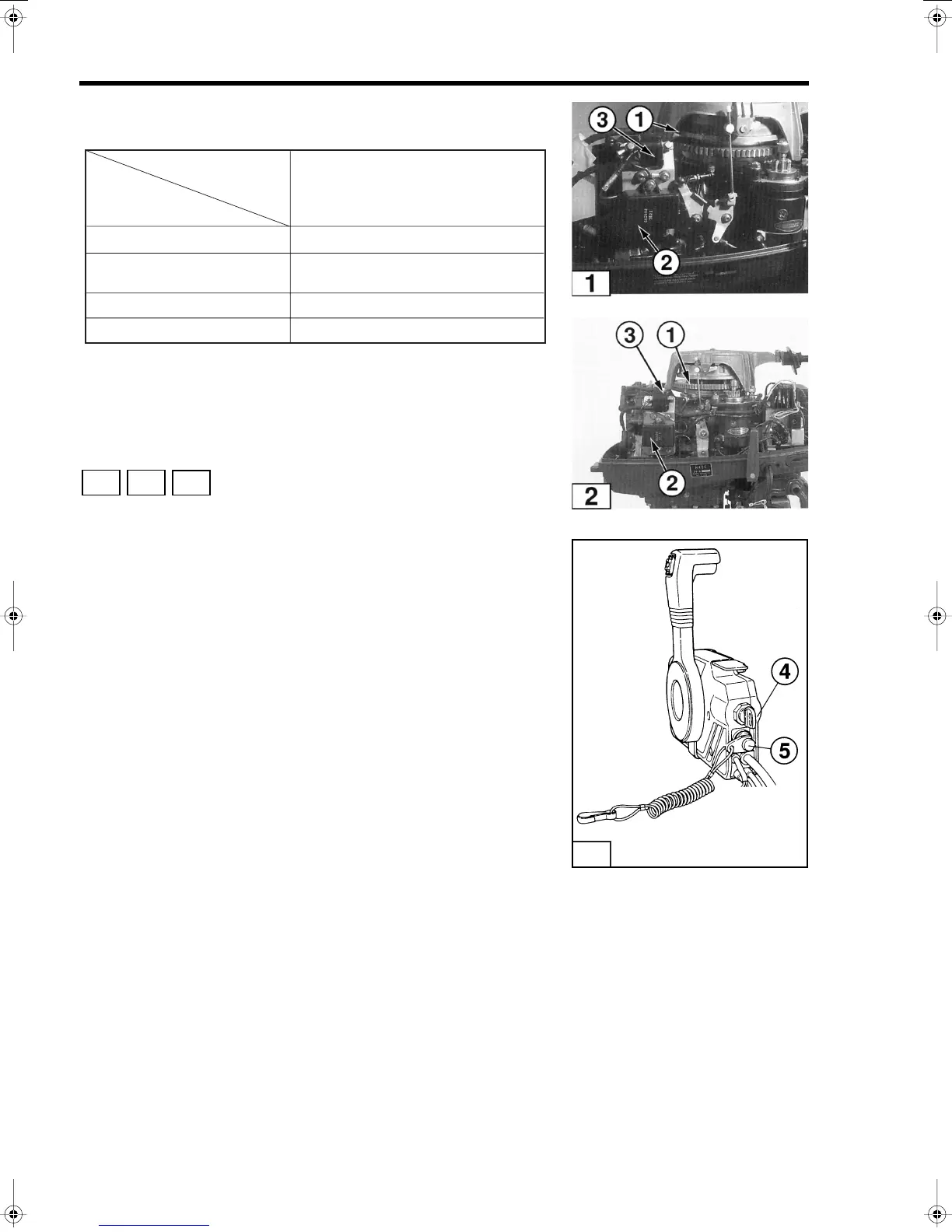

DESCRIPTI0N OF OPERATION
Ignition System
The ignition system consists ofthe magneto
(1)
,
Capacitive Discharge (CD) unit
(2)
, ignition coil
(3)
, main key switch
(4)
and emergency stop switch
(5)
. The purpose
of this system is to provide an electric spark inside each cylinder at the
precise moment needed by the combustion chamber.
Blown fuse
Shorted or faulty
alternator coil
Faulty recitier/regulator
Faulty charge circuit wiring
CHECKS
SYMPTOM
•
•
•
•
Battery does not maintain
charge or overcharges
1 2
3
T1770
