POWERHEAD
4-17
1-/ 2-Cylinder
Assembly — 2.5
/
3.5

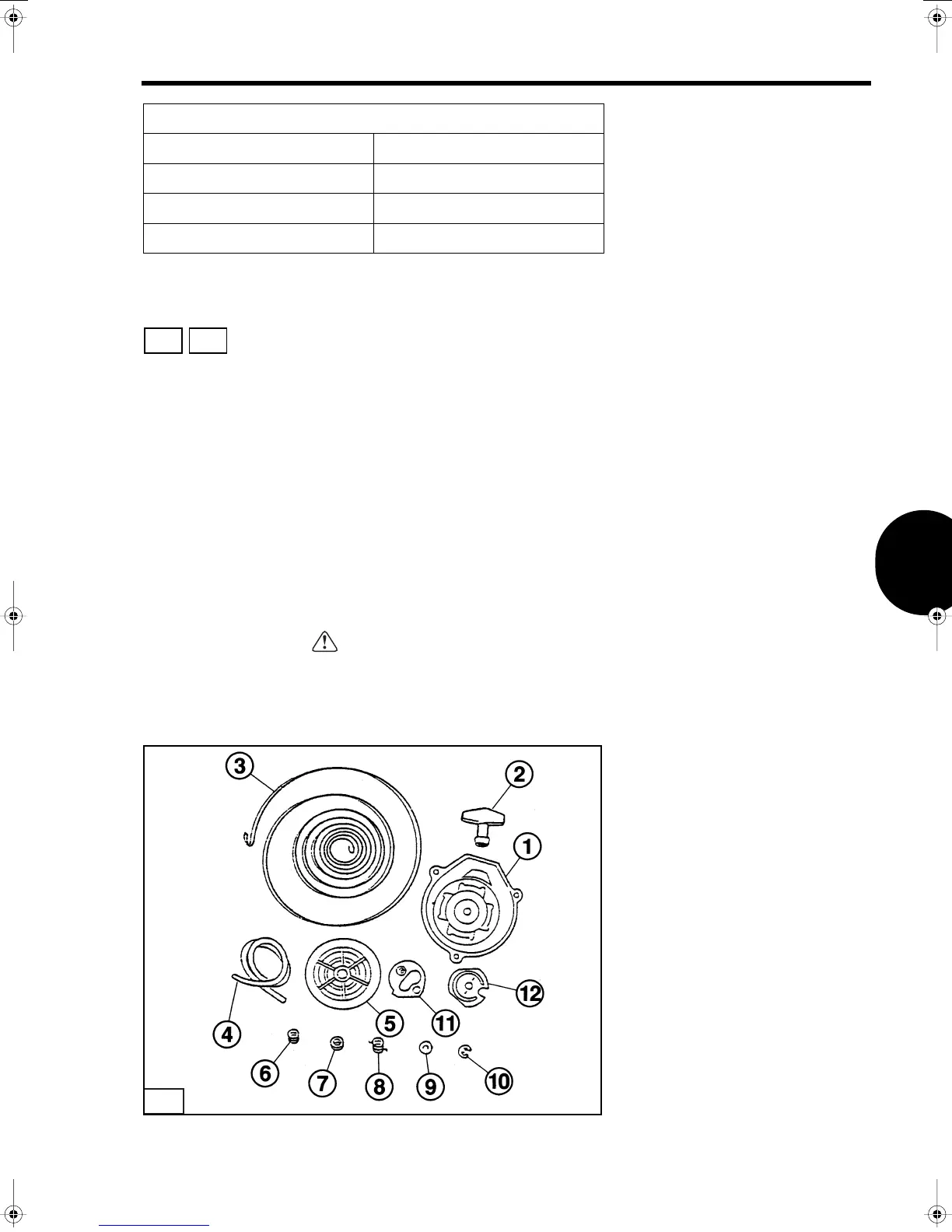

For assembling, use the procedure reverse to the
disassembly while observing the following notes.
• When setting the starter spring, fix the outer end to the location
when the reel is attached, and then wind it counterclockwise in
the unit.
• Wind the rope counterclockwise as viewed from the reel side. Run
the rope through the starter case hole, and wind the rope two
times and fix the starter handle.
• When attaching the ratchet, be careful of the direction.
• Adjust the starter spring tension after completing the assembling,
by putting the rope into the notch of the reel and turning it
counterclockwise. Give preliminary winding of four turns.
Starter rope pulling out load:
15 to 25 N (1.5 to 2.5 kg) when pulled out by 30 cm
CAUTION
Apply cold-resistant grease to the starter guides,
starter shaft, ratchet and ratchet bushing (where
used) prior to installation.
Ratchet Load Requirements
5 / 8 / 9.8: 600 to 800 grams
9.9 / 15 / 18: 300 to 500 grams
25 / 30: 300 to 500 grams
40: 300 to 500 grams
15 16
T1566
15
To Next Page
