FUEL SYSTEM
3-17
1-/ 2-Cylinder
FUEL PUMP
CAUTION
Before servicing the fuel pump, disconnect the
fuel hose from the engine to prevent excessive
fuel spillage.
NOTE
Fuel for the 2.5 and 3.5 engines is gravity fed to the
carburetor. There is no fuel pump to be serviced on
these engines.
Disassembly
NOTE
Match mark parts before disassembly and reference
the illustrations in the Inspection procedure to
ensure proper orientation of internal components.
NOTE
Models 5, 8, 9.8, 9.9, 15 and 18 are equipped with
carburetor-mounted fuel pump. Disconnect fuel
hoses from pump, remove the mounting screws and
fuel pump. Gently separate the pump components
and continue with Cleaning and Inspection
procedures.

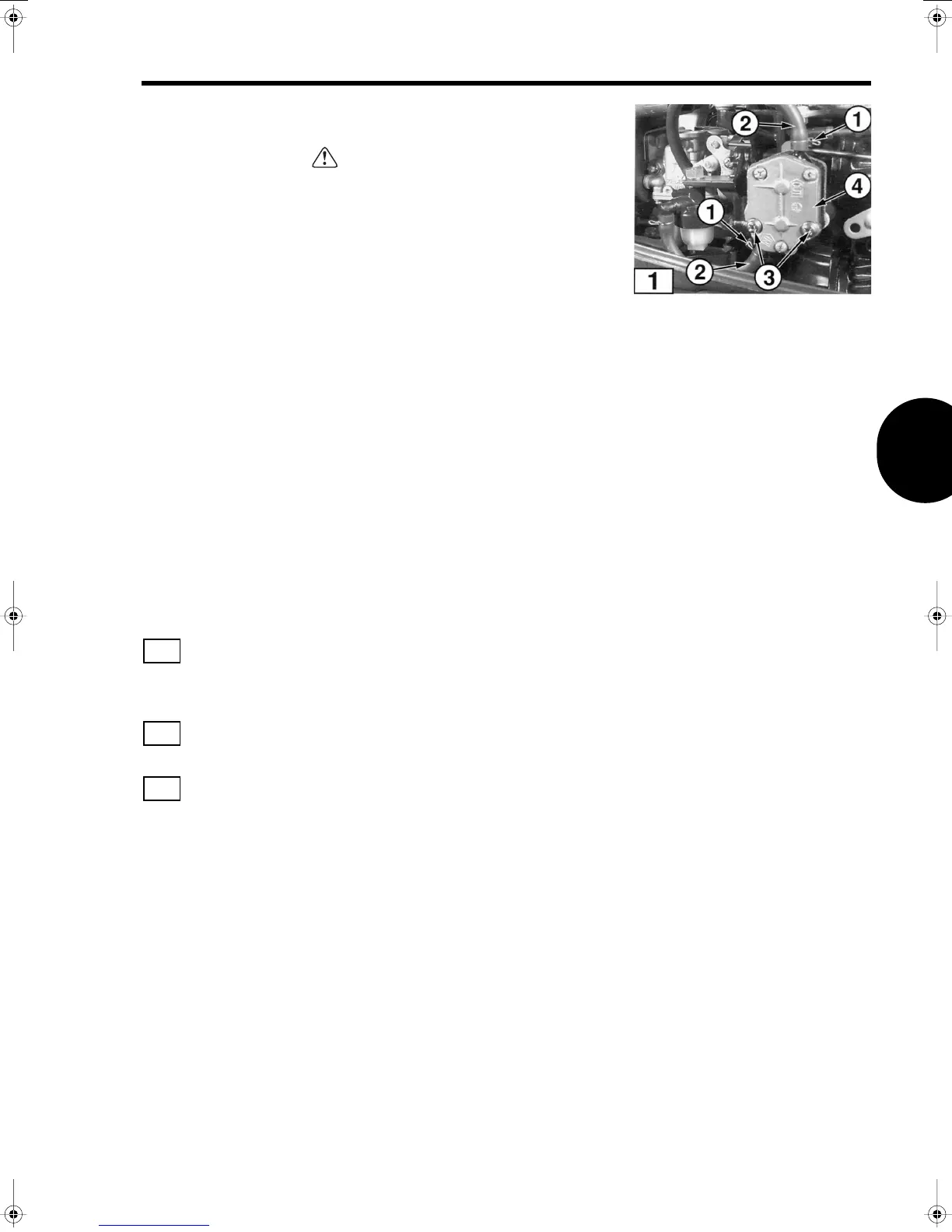

1. Expand and move clips
(1)
on fuel hose(s)
(2)
.
2. Disconnect fuel hoses from fuel pump.
3. Loosen pump mounting screws
(3)
and remove fuel pump
(4)
and gasket from crankcase.
4. Remove fuel pump cover screws
(5)
and cover
(6)
. Gently
separate the pump components.
1
1
2
T1118
