SECTION 7
7-66
1-/ 2-Cylinder

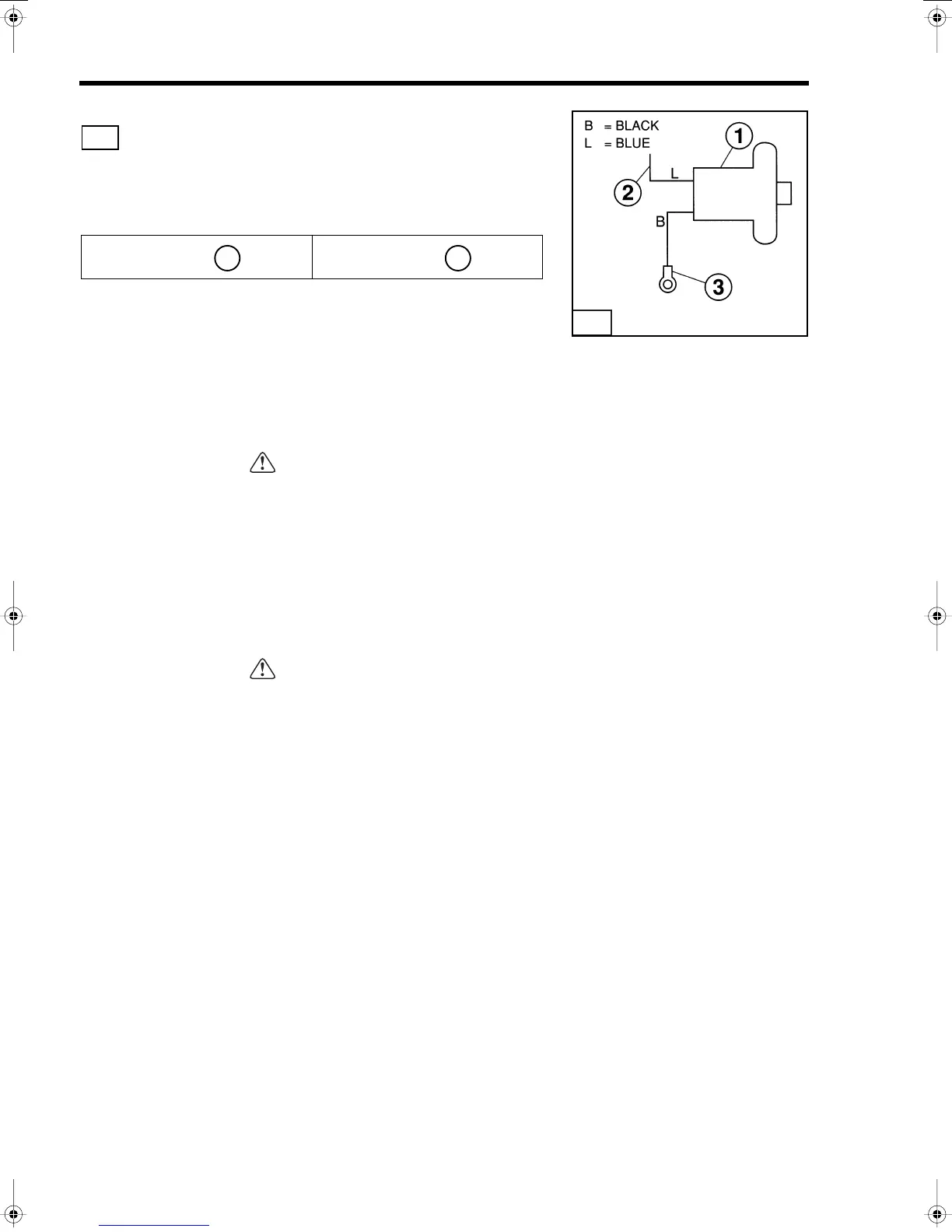

Choke Solenoid Test
1. Disconnect terminals
(2)
and
(3)
.
2. Set analog multimeter for continuity. Check for continuity between
a clean chassis ground and one of these terminals (test one terminal
at a time):
If meter shows continuity in any of these tests, replace choke
solenoid
(1)
.
3. Check for continuity between terminals
(2)
and
(3)
. lf meter does
not show continuity, replace choke solenoid.
CHARGING SYSTEM
CAUTION
Avoid electrical shock:
• Do not handle spark gap tester leads during
performance testing.
• Do not touch ignition coils, exciter coil, pulser
coils, or alternator coils while the engine is
cranking or running.
CAUTION
Use proper precautions when performing tests
with the engine cover removed. Do not wear
loose clothing or jewelry. Keep hair, hands, and
clothing away from the flywheel and other
moving parts.
Terminal Terminal
36
2 3
T1551
36
To Next Page
