4 Replacement Procedures 4.2 Battery pack
4.2 Battery pack
Removing the battery pack
The following describes the procedure for removing the battery pack (See Figure 4-1).
CAUTION: Take care not to short circuit the terminals when removing the battery pack.
Similarly, do not drop, knock, scratch, disassemble, twist, or bend the battery
pack.
1. Turn off the power of the computer.
2. Disconnect the AC adapter and all external devices from the computer.
3. Turn the computer upside down.
4. Release the battery lock.
5. Slide the battery latch in the direction of arrow and pull up the battery pack
assembly.
6. Separate the battery cover and battery pack while releasing the hooks of the battery
cover.
Battery pack assembly
Battery cover
Battery lock
Battery latch
Battery pack

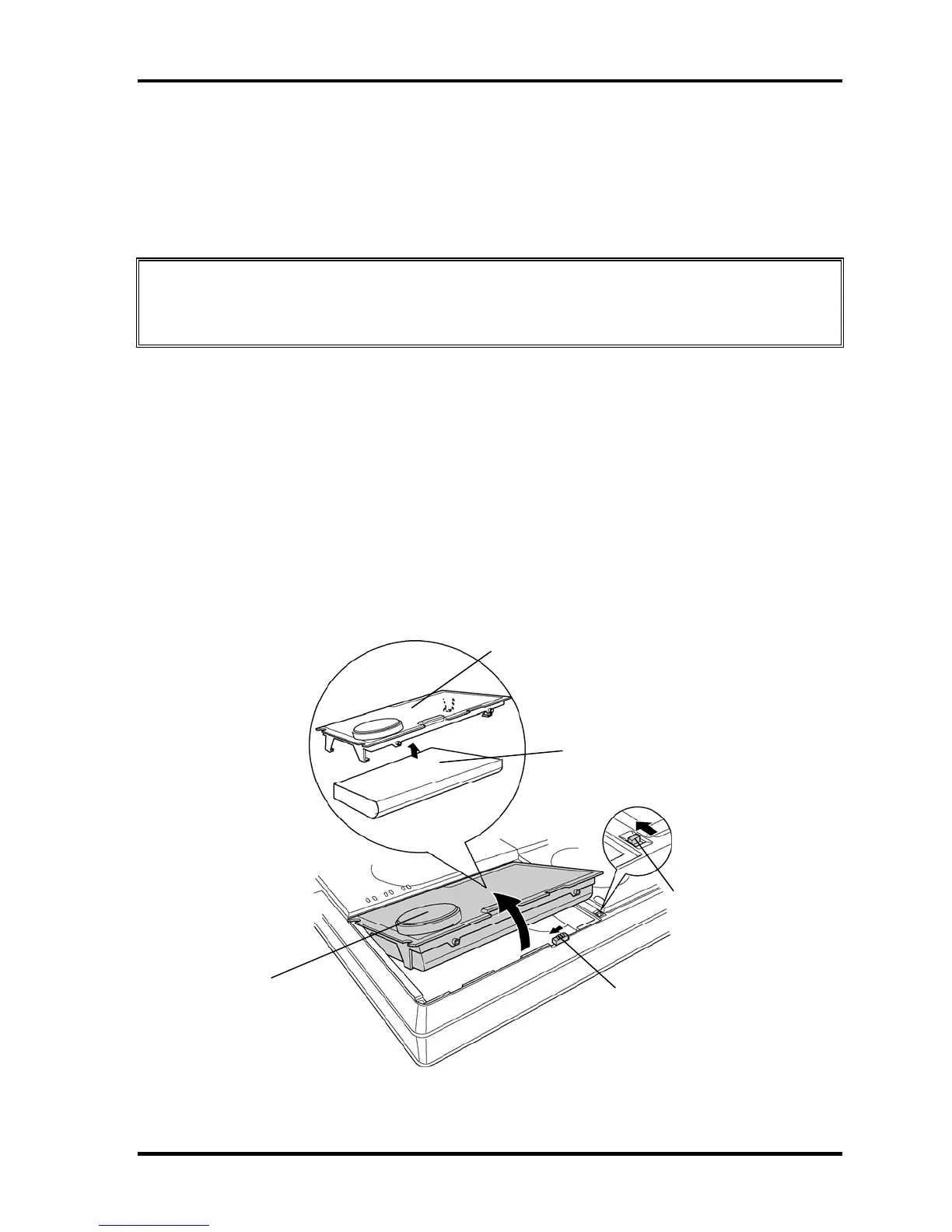

Figure 4-1 Removing the battery pack
4-8 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
