4.27 GPU heat sink 4 Replacement Procedures
4.27 GPU heat sink
Removing the GPU heat sink
The following describes the procedure for removing the GPU heat sink (See Figure 4-40).
1. Remove the following screws securing the GPU holder and GPU heat sink.
• M2.0×4B BIND screw ×3
2. Remove the GPU holder and GPU heat sink.
NOTE: When removing the GPU holder, be sure to remove the screws in the reverse
order of the number marked on the holder.
When removing the GPU heat sink, be careful no to bend the earth spring.
GPU holde
r
M2.0x4B BIND
GPU heat sink
Earth sprin
g

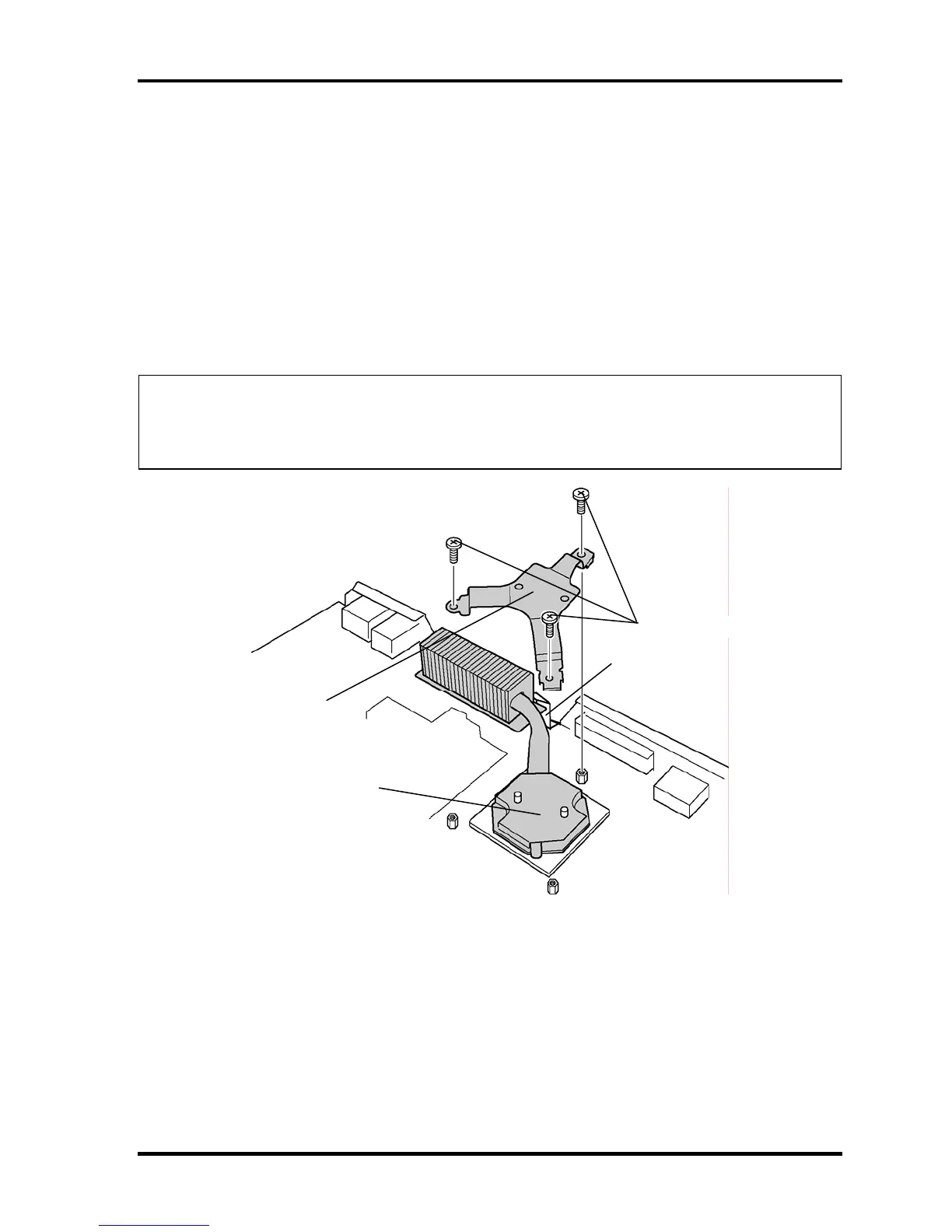

Figure 4-40 Removing the GPU heat sink
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-63
