4.15 Fingerprint sensor board 4 Replacement Procedures
4.15 Fingerprint sensor board
Removing the Fingerprint sensor board
The following describes the procedure for removing the fingerprint sensor board (See Figure
4-22).
1. Push the latch and slide the fingerprint sensor holder in the direction of arrow in the
following figure to remove it.
2. Remove the fingerprint sensor board from the cover assembly.
3. Disconnect the fingerprint sensor cable from the connector CN9540 on the
fingerprint sensor board.
Fingerprint sensor holder
Fingerprint sensor board
CN9540
Fingerprint sensor cable
Latch

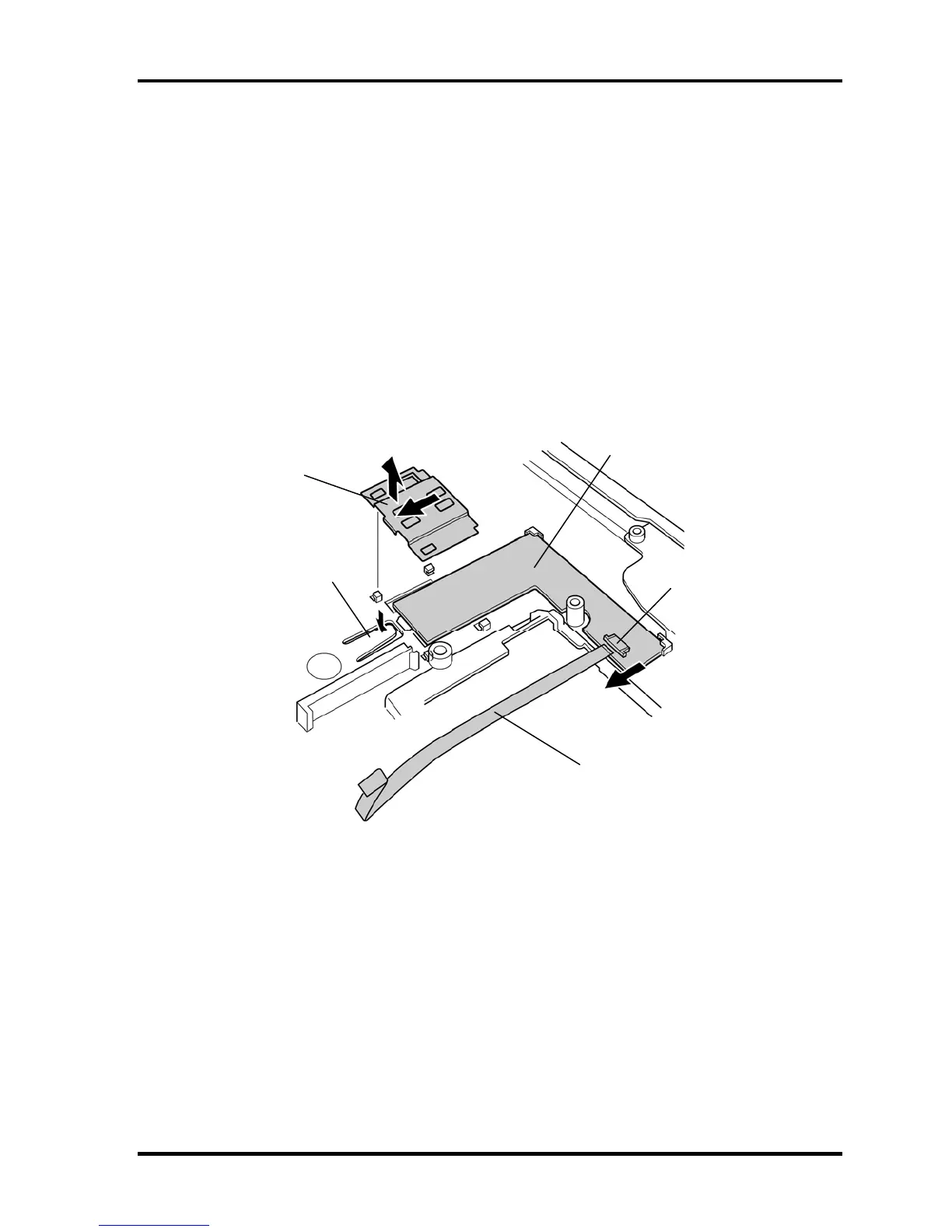

Figure 4-22 Removing the fingerprint sensor board
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-37
