Toshiba Qosmio G30 Maintenance Manual

4.9 MDC 4 Replacement Procedures
4.9 MDC
Removing the MDC
The following describes the procedure for removing the MDC (See Figure 4-13).
1. Remove the following screws securing the MDC.
• M2.0×4B BIND screw ×2
2. Pull the MDC straight up and disconnect the MDC from the connector CN3010 on
the system board.
3. Disconnect the modem cable from the connector on the MDC.
M2.0x4B BIND
MDC
CN3010
Modem cable

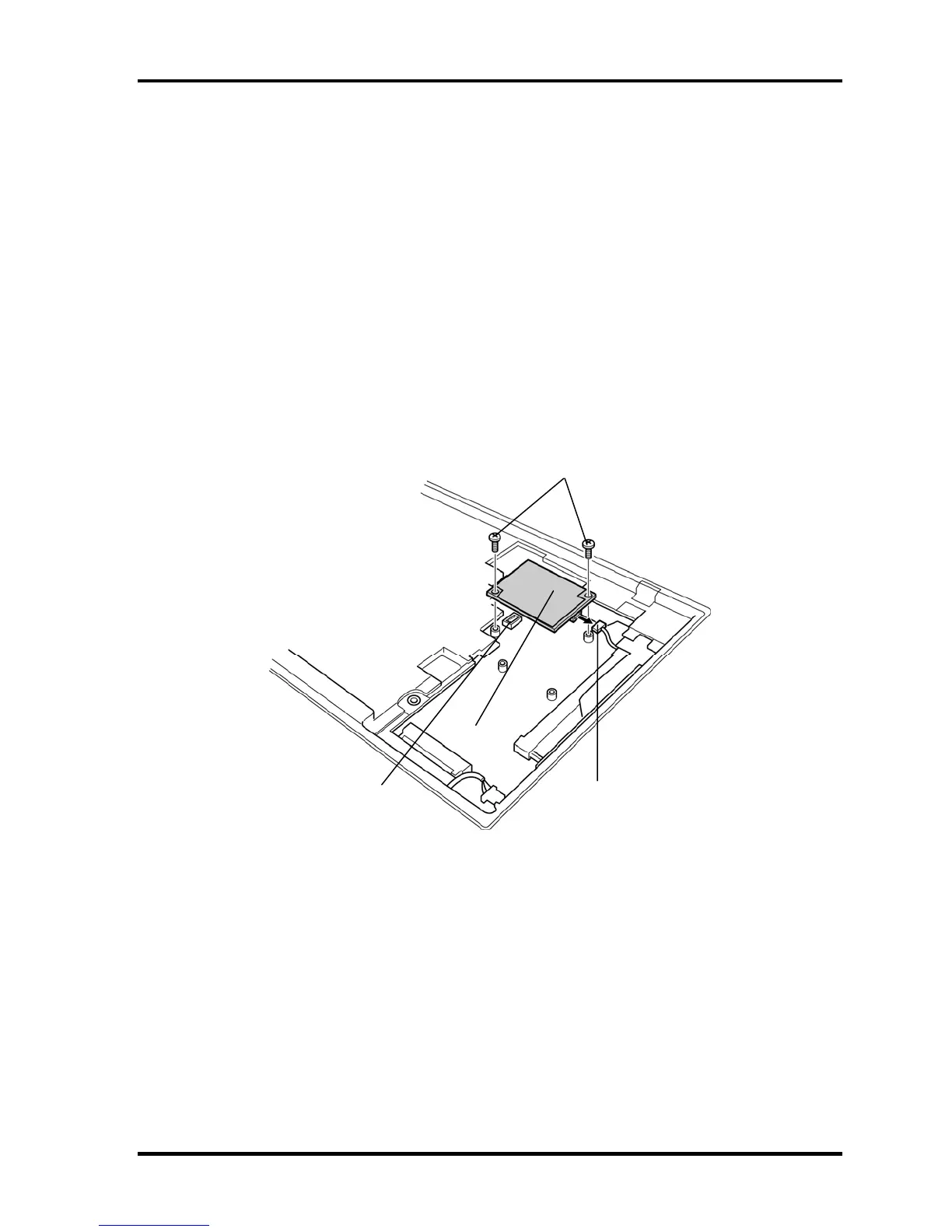

Figure 4-13 Removing the MDC
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-25
