Toshiba Qosmio G30 Maintenance Manual

Appendix B Board Layout Appendices
B.3 JK board (FCTJK*)
<Front layout>
<Back layout>

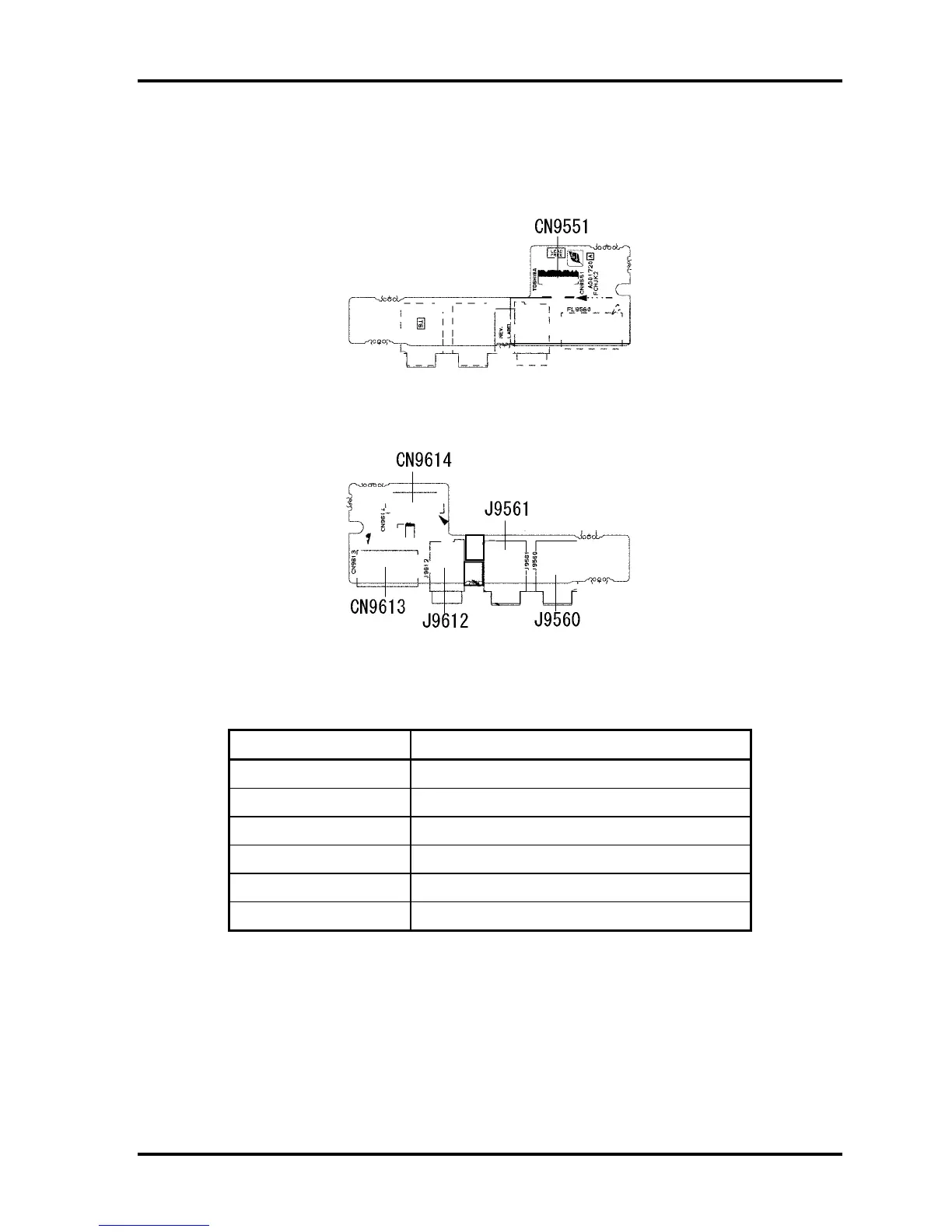

Figure B-3 JK board layout
Table B-3 JK board connectors
Number Name
CN9551 System board I/F connector
J9560 IR blaster 1 connector
J9561 IR blaster 2 connector
CN9613 S-Video connector
J9612 AV-in connector
CN9614 TV-in connector
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] B-5
