4 Replacement Procedures 4.12 Touch pad
4
4.12 Touch pad
Removing the touch pad
The following describes the procedure for removing the touch pad (See Figure 4-18 and 4-
19).
1. Remove the following screw on the back side of the cover assembly.
• M2.5×6S Tapping screw ×1
2. Remove the touch pad assembly while sliding it.
M2.5×6S Tapping
Touch pad assembly

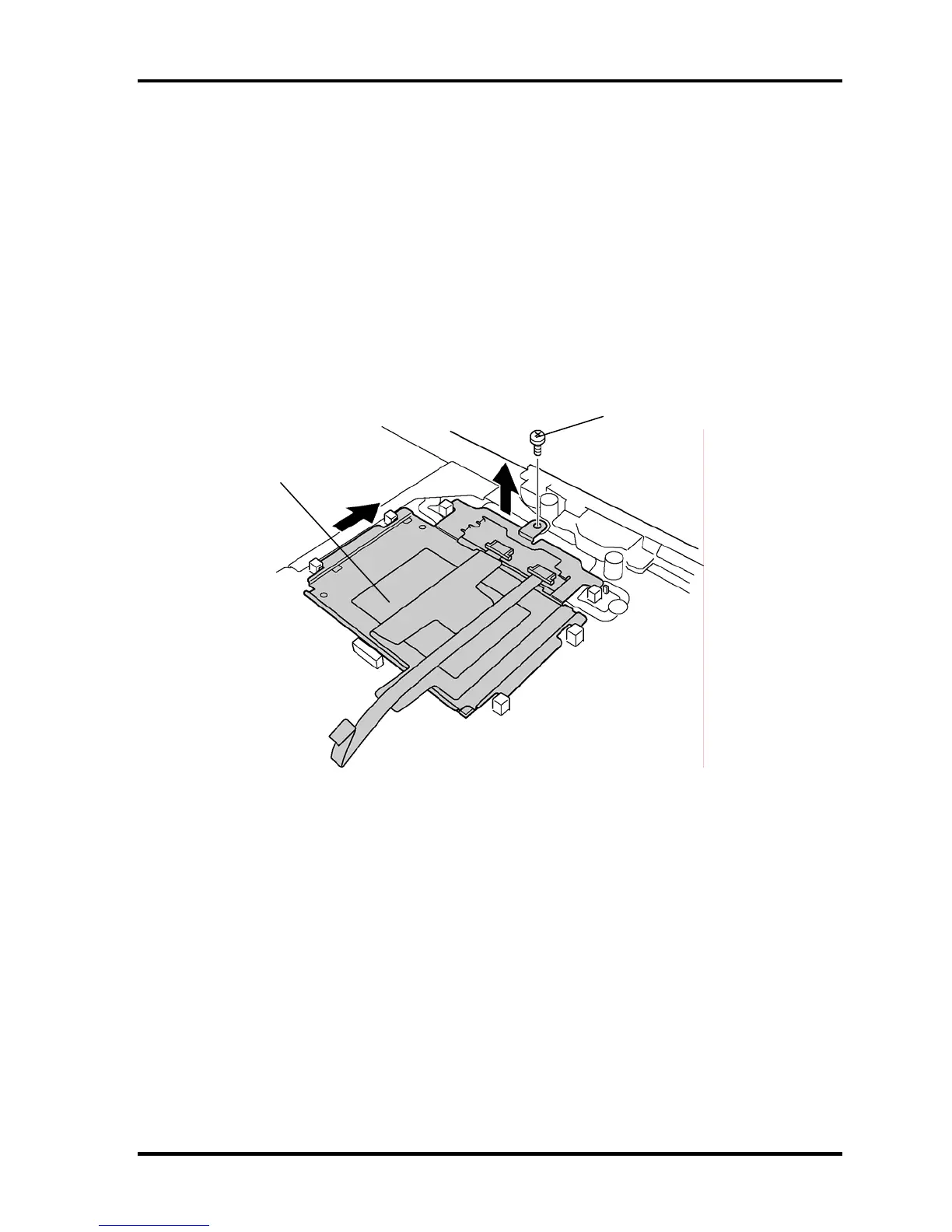

Figure 4-18 Removing the touch pad
3. Peel off the double-sided tape portion between the insulators and disconnect the
touch pad cable from the TP board.
4. Turn up the insulator and disconnect the button cable from the touch pad assembly.
5. Disconnect the button cable from the TP board.
6. Turn over the touch pad assembly and remove the following screw and TP board.
• M1.8×3S S-THIN HEAD screw ×1
4-32 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
