Toshiba Qosmio G30 Maintenance Manual

4.28 Analog TV tuner 4 Replacement Procedures
4.28 Analog TV tuner
Removing the Analog TV tuner
The following describes the procedure for removing the analog TV tuner (See Figure 4-41).
1. Remove the following screws securing the analog TV tuner.
• M2.0×4B BIND screw ×2
2. Open the left and right latches and remove the analog TV tuner from the connector
CN2400 on the system board.
M2.0x4B BIND
A
nalog TV tuner
CN2400
Latch
Latch

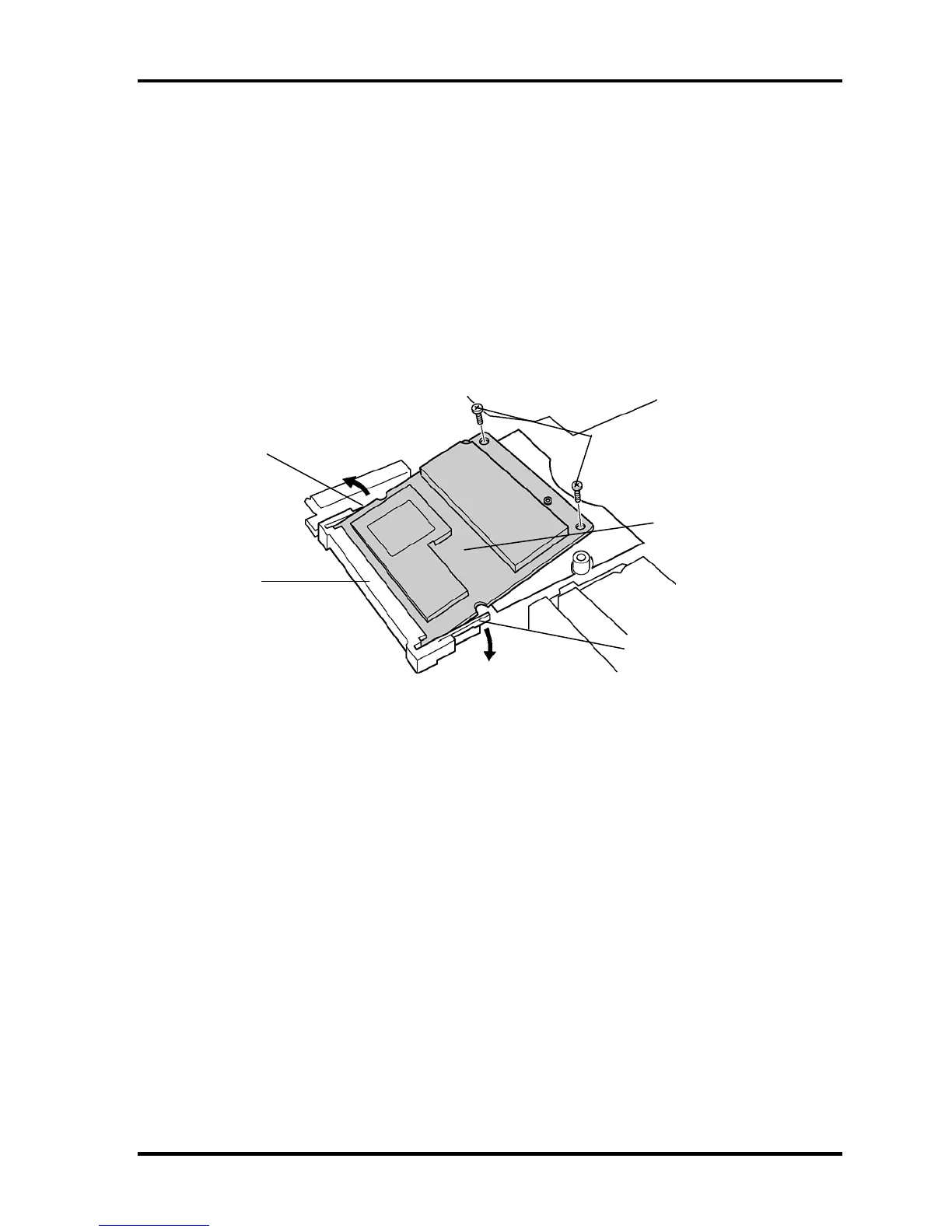

Figure 4-41 Removing the analog TV tuner
Installing the analog TV tuner
The following describes the procedure for installing the analog TV tuner (See Figure 4-41).
1. Insert the analog TV tuner into the connector CN2400 on the system board slantwise
and press it to connect firmly.
2. Secure the analog TV tuner with the following screws.
• M2.0×4 B BIND screw ×2
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-65
