4.31 LCD cable 4 Replacement Procedures
4.31 LCD cable
Removing the LCD cable
The following describes the procedure for removing LCD cable (See Figure 4-47).
1. Remove the following screw securing the LCD cable holder (cover assembly side)
and remove the LCD cable holder plate from the cover assembly.
• M2.5×6S Tapping screw ×1
2. Remove the hinge cap (L) from the cover assembly.
3. Remove the LCD cable from the slot of the cover assembly.
M2.5x6S Tapping
LCD cable holder plate
LCD cable
Hinge cap (L)

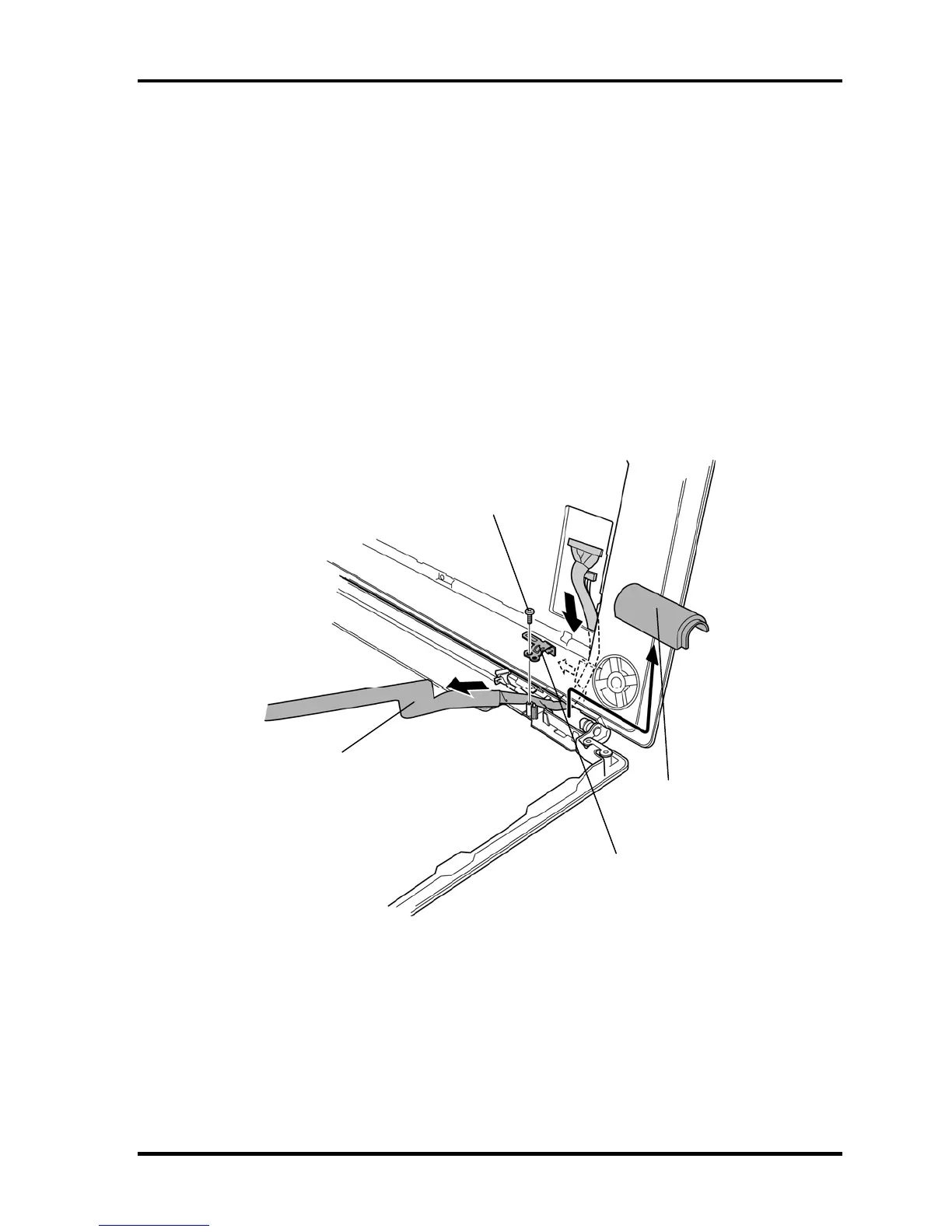

Figure 4-47 Removing the LCD cable
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-73
