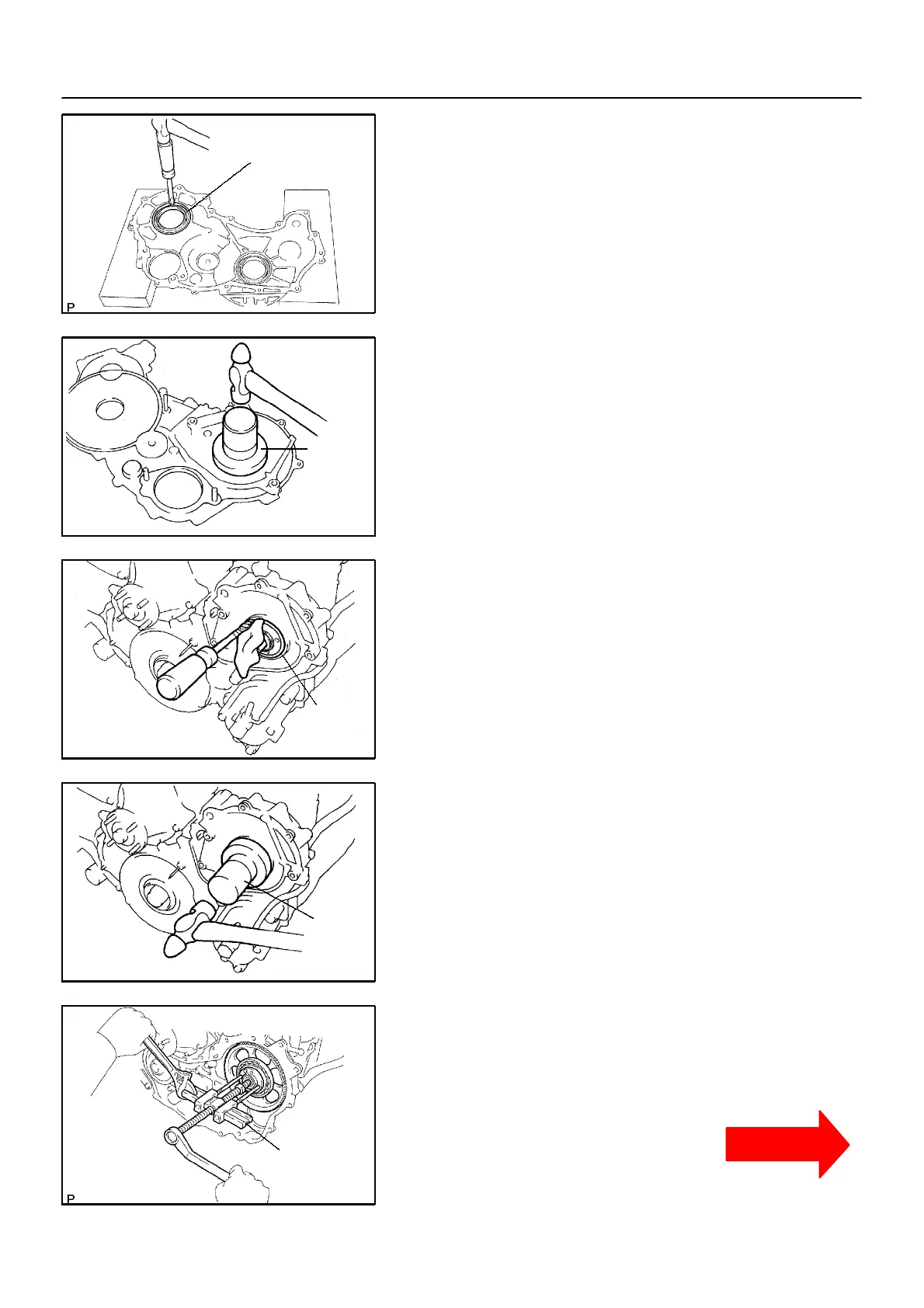

2 . RE P L ACE I NJ E CTI O N P UMP DRI V E G E AR O I L S E AL
(a) If the timing gear cover is removed from cylinder block:
(1) Using a screwdriver and hammer, tap out the oil
seal.
(2) Using SST and a hammer, tap in a new oil seal until
its surface is flush with the timing gear cover edge.
SST 09223 -- 78010
(3) Apply MP grease to the oil seal lip.
(b) If the timing gear cover is installed to the cylinder block:
(1) Using a screwdriver, pry out the oil seal.
NOTICE:
Be careful not to damage the injection pump drive gear.
Tape the screwdriver tip.
(2) Apply MP grease to the oil seal lip.
(3) Using SST and a hammer, tap in a new oil seal until
its surface is flush with the timing gear cover edge.
SST 09223 -- 78010
3 . RE P L ACE I NJ E CTI O N P UMP DRI V E G E AR BE ARI NG
(a) Using SST, remove the bearing.
SST 09950 -- 40010 (09951 -- 04010, 09952 -- 04010,
09953 -- 04020, 09954 -- 04010, 09955 -- 04041)
