114
Maintenance and Adjustment

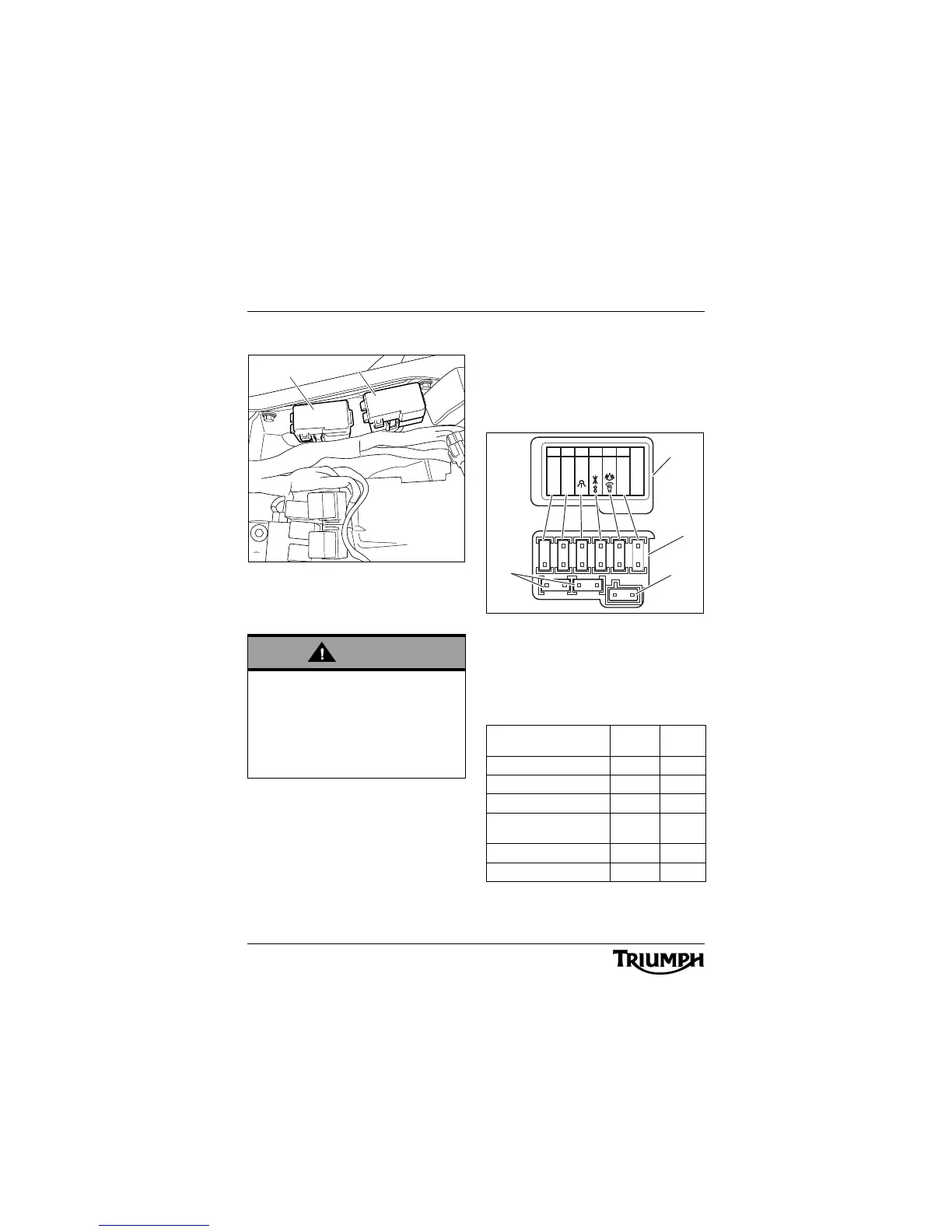

Fuse Boxes
1. Front fuse box
2. Rear fuse box
The two fuse boxes are located beneath the
seat.
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the tables to establish which fuse has
blown.
The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box cover, as shown. Spare fuses are
located at right angles to the main fuses and
should be replaced if used.
Front Fuse Box
1. F u s e b o x
2. Fuse box cover
3. Spare fuses
Note:
•For motorcycles without ABS, fuse
positions 1 and 2 will be empty.
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
Circuit Protected Position Rating
(Amps)
ABS 1 20
ABS 2 20
Licence plate light 3 5
Rear light, direction
indicators, side lights
410
Alarm, instrument lights 5 5
Empty 6 -
