85
Maintenance and Adjustment

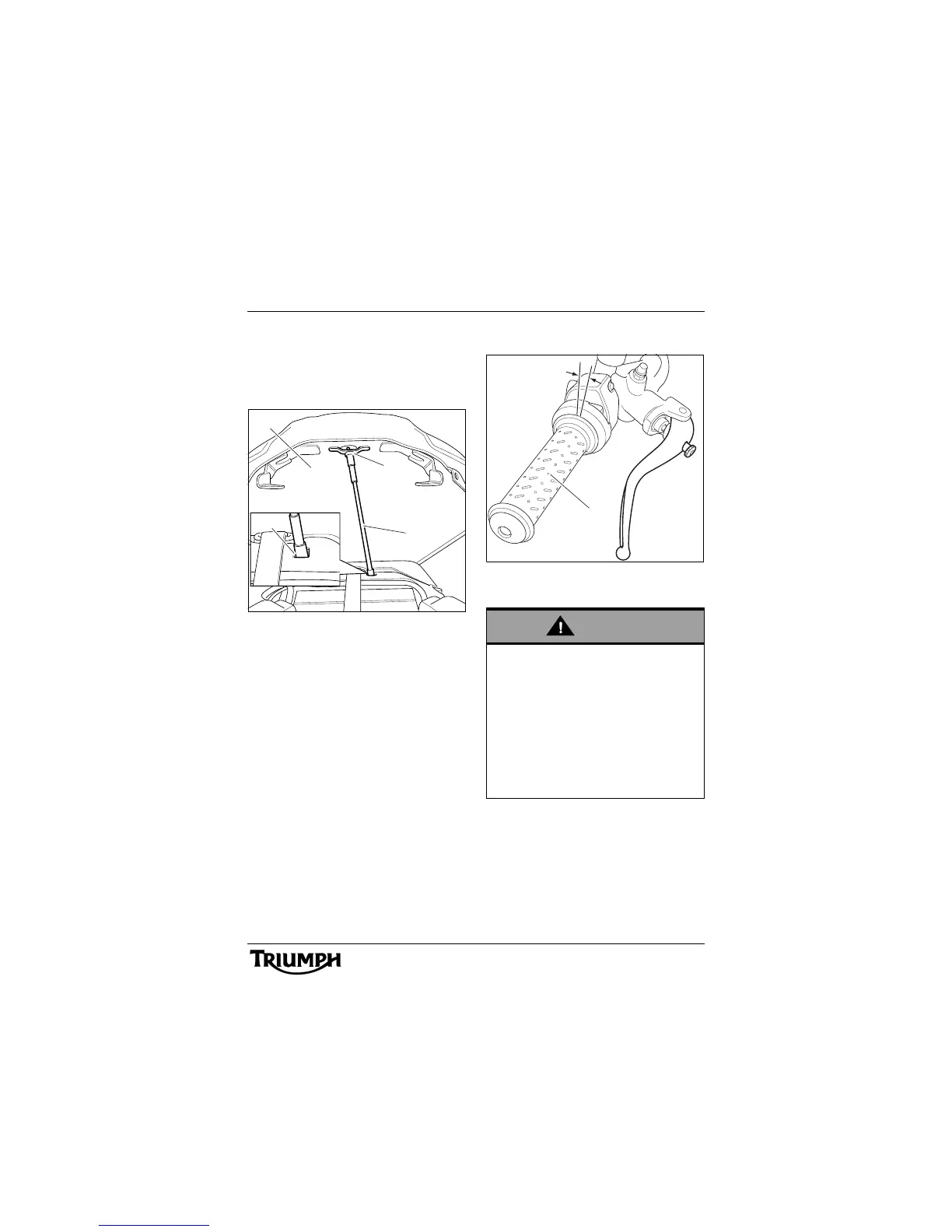

Pivot the fuel tank upwards at the front.
While holding the fuel tank in the raised
position, locate the fuel tank prop into the
support points on the air box and the fuel
tank.
1. Fuel tank prop
2. Fuel tank
3. Supporting point, fuel tank
4. Supporting point, air box
Lowering
While holding the fuel tank, remove the fuel
tank prop and lower the fuel tank. Refit the
front fixings and tighten to 4Nm.
Refit the front panel and tighten the fixings to
2Nm.
Securely fit the fuel tank support to its
location on the seat.
Refit the seat (see page 49).
Throttle Control
1. Throttle grip
2. Correct setting 2 - 3 mm
The throttle grip controls the throttle valves
in the throttle bodies. If the throttle cables
are incorrectly adjusted, either too tight or
too loose, the throttle may be difficult to
control and performance will be adversely
affected.
Check the throttle grip free play in
accordance with scheduled maintenance
requirements and make adjustments as
necessary.
