Triumph Speed Triple Handbook

84
Maintenance and Adjustment

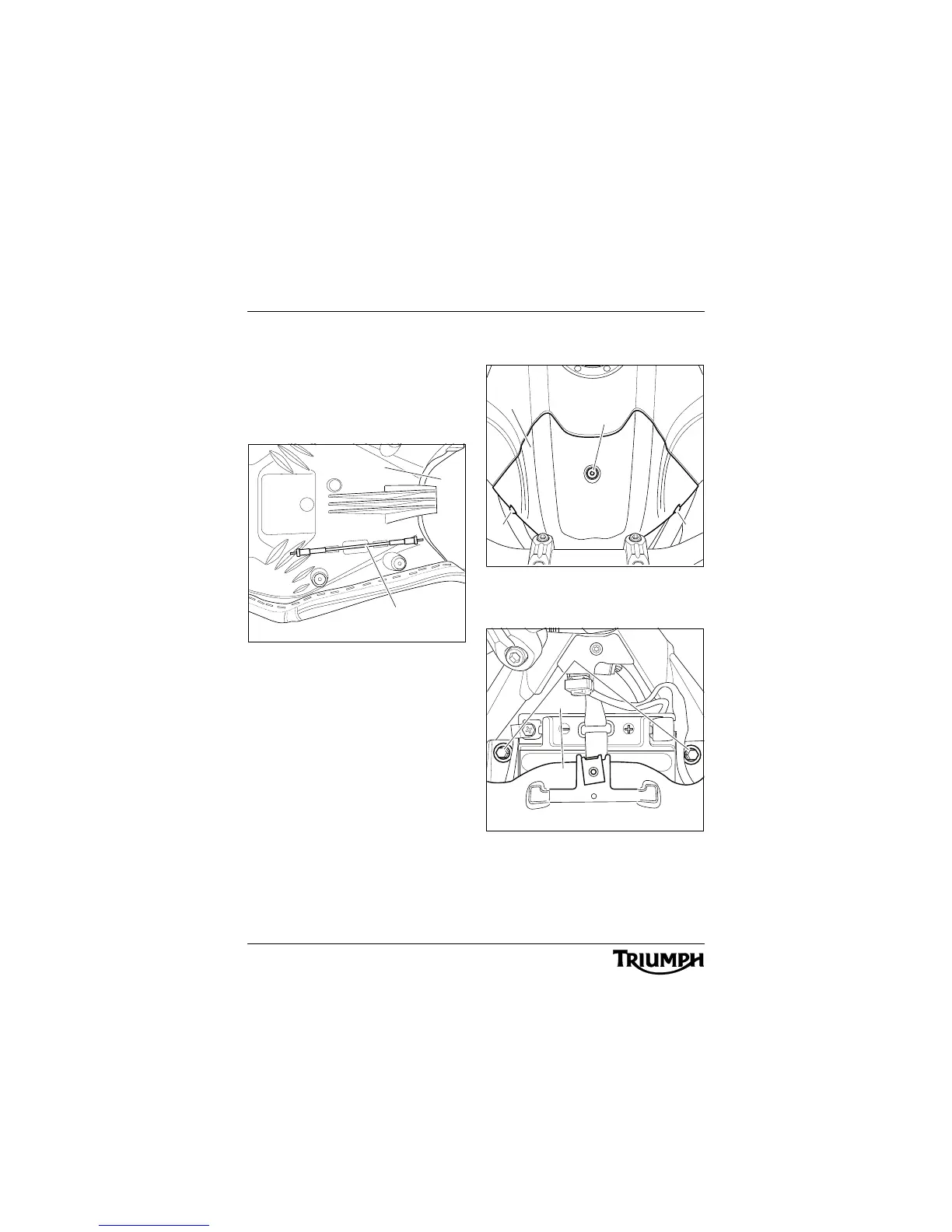

Fuel Tank
Raising
Remove the seat (see page 49) and remove
the fuel tank prop from its location on the
seat base. Store the seat as described on
page 49.
1. S e a t
2. Fuel tank prop
Release the three fixings and remove the
front panel from the fuel tank.
1. Front panel
2. Fixings
Remove the front fixings for the fuel tank.
1. F i x i n g s
2. Fuel tank
1
cgfp 1
2
cgfo
2
1
22
cgff
2
1

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
