General Information
Gear Change Lights
The gear change lights provide a visual
indication of when to change gear. The gear
change lights are all coloured blue.

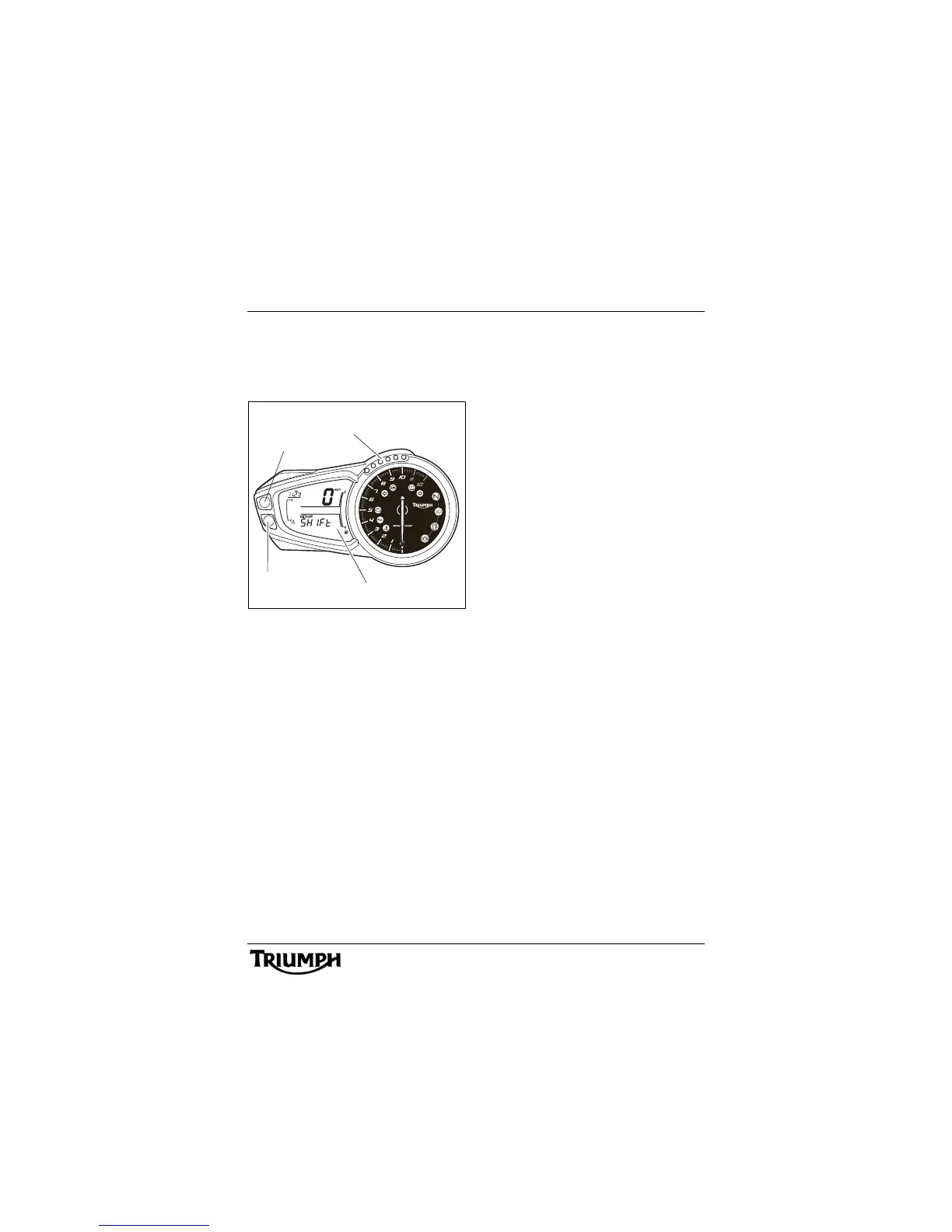

1. Display screen
2. Gear change lights
3. Button A
4. Button B
Gear Change Light Modes
The gear change lights have four
programmable operating modes as
described below:
• 3 LED mode: The first three lights
illuminate when the set limit is
reached, and remain illuminated
until the engine speed drops below
the set limit.
• 6 LED mode: All six lights illuminate
when the set limit is reached, and
remain illuminated until the engine
speed drops below the set limit.
• OFF mode: The gear change lights
are turned OFF.
• SE mode: The lights will
progressively illuminate in 250 rpm
increments until the set limit is
reached. At the set limit all six lights
will be illuminated.
Setting Gear Change Light Limits
The gear change lights will not operate below
3,500 rpm to avoid the lights operating at
idle.
To change the gear change light modes, with
the motorcycle stationary and in neutral turn
the ignition to the ON position.
Press and release button 'A' until set up is
visible in the display screen then press
button 'B'.
Press and release button 'A' until SHIFt is
visible then press button 'B'. The current
mode will be displayed and the
corresponding gear change lights will
illuminate.
Press and release button 'A' until the desired
gear change light mode is visible then press
button 'B'. The display will scroll through in
the following order:
• SE (Scale mode);
• 3 (3 LED mode);
• 6 (6 LED mode);
• OFF (Gear change lights off).
