Maintenance and Adjustment

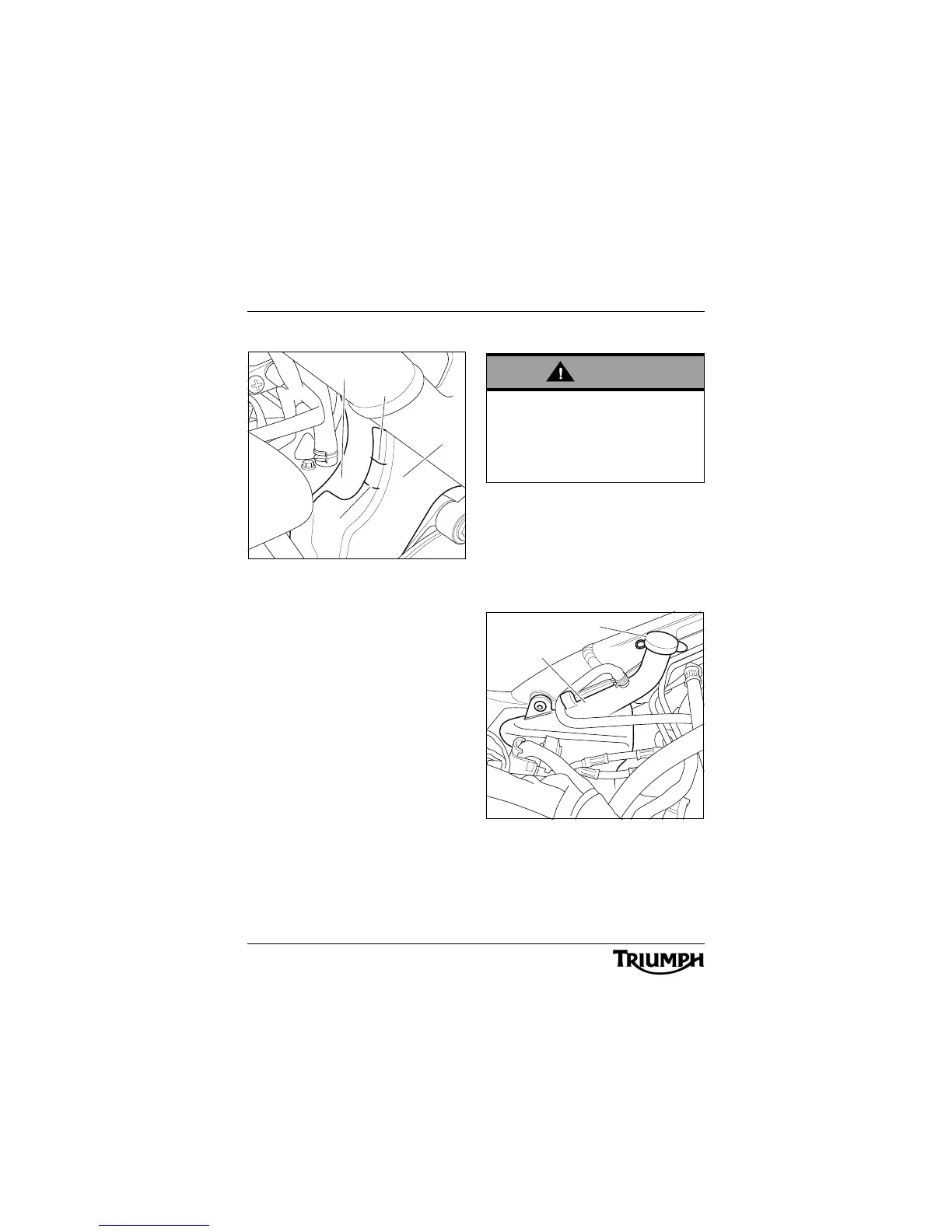

Coolant Level Inspection
1. Expansion tank cover
2. MAX mark
3. MIN mark
4. Expansion tank
Position the motorcycle on level ground and
in an upright position.
The coolant level within the expansion tank
can be inspected on the left hand side of the
motorcycle without removing any covers.
Check the coolant level in the expansion
tank. The coolant level must be between the
MAX and MIN level marks moulded into the
expansion tank cover. If the coolant is below
the minimum level, the coolant level must be
adjusted.
Coolant Level Adjustment
Allow the engine to cool.
To access the expansion tank, raise and
support the fuel tank (see page 84).
Remove the cap from the expansion tank
and add coolant mixture through the filler
opening until the level reaches the MAX
mark on the expansion tank cover.
1. Expansion tank
2. Tank cap
Refit the cap.
Lower and secure the fuel tank (see
page 85).
1
2
3
cgfa
4
Do not remove the radiator pressure cap
when the engine is hot. When the engine
is hot, the coolant inside the radiator will be
hot and also under pressure. Contact with
this hot, pressurised coolant will cause
scalds and skin damage.
