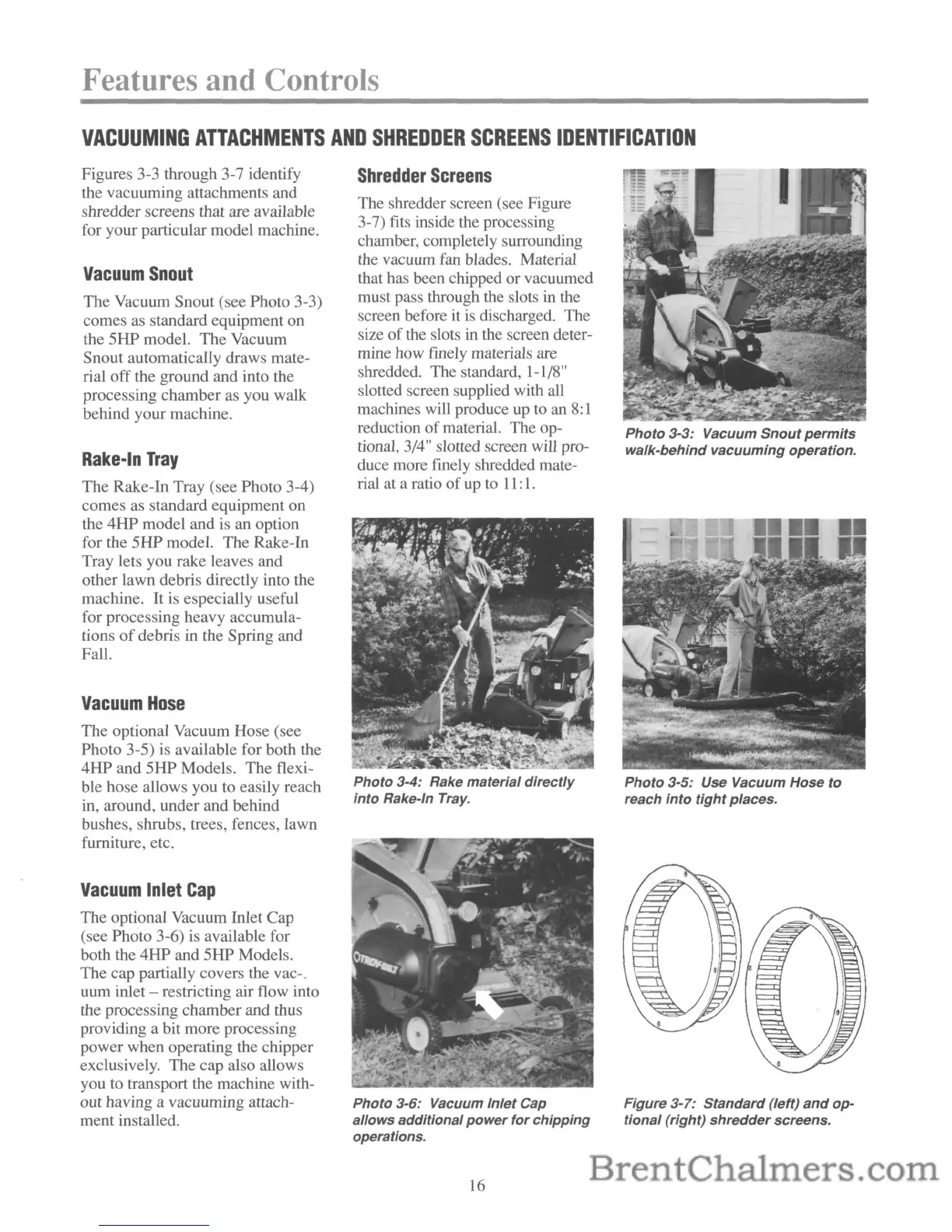

Features and Controls
VACUUMING
ATTACHMENTS
AND
SHREDDER
SCREENS
IDENTIFICATION
Figures 3-3 through 3-7 identify
the vacuuming attachments and
shredder screens that are available
for your particular model machine.
Vacuum
Snout
The Vacuum Snout (see Photo 3-3)
comes
as
standard equipment on
the 5HP model. The Vacuum
Snout automatically draws mate-
rial off the ground and into the
processing chamber as you walk
behind your machine.
Rake-In
Tray
The Rake-In Tray (see Photo 3-4)
comes
as
standard equipment on
the 4HP model and is an option
for the
5HP
model. The Rake-In
Tray lets you rake leaves and
other lawn debris directly into the
machine. It is especially useful
for processing heavy accumula-
tions
of
debris in the Spring and
Fall.
Vacuum
Hose
The optional Vacuum Hose (see
Photo 3-5) is available for both the
4HP and 5HP Models. The flexi-
ble hose allows you to easily reach
in, around, under and behind
bushes, shrubs, trees, fences, lawn
furniture, etc.
Vacuum
Inlet
Cap
The optional Vacuum Inlet Cap
(see Photo 3-6) is available for
both the 4HP and 5HP Models.
The cap partially covers the vac-.
uum inlet - restricting air flow into
the processing chamber and thus
providing a bit more processing
power when operating the chipper
exclusively. The cap also allows
you to transport the machine with-
out having a vacuuming attach-
ment installed.
Shredder
Screens
The shredder screen (see Figure
3-7) fits inside the processing
chamber, completely surrounding
the vacuum fan blades. Material
that has been chipped or vacuumed
must pass through the slots
in
the
screen before it is discharged. The
size
of
the slots in the screen deter-
mine how fmely materials are
shredded. The standard, 1-1/8"
slotted screen supplied with all
machines will produce
up
to
an
8:
1
reduction
of
material. The op-
tional, 3/4" slotted screen will pro-
duce more fmely shredded mate-
rial at a ratio
of
up
to
11:
1.
Photo 3-4: Rake material
directly
into
Rake-In Tray.
3-6: Vacuum
Inlet
Cap
allows additional
power
for
chipping
operations.
16
Photo 3-3: Vacuum
Snout
permits
walk-behind
vacuuming
operation.
3-5: Use Vacuum Hose to
reach
into
tight
places.
Figure
3·7:
Standard
(left)
and
op-
tional
(right)
shredder
screens.
