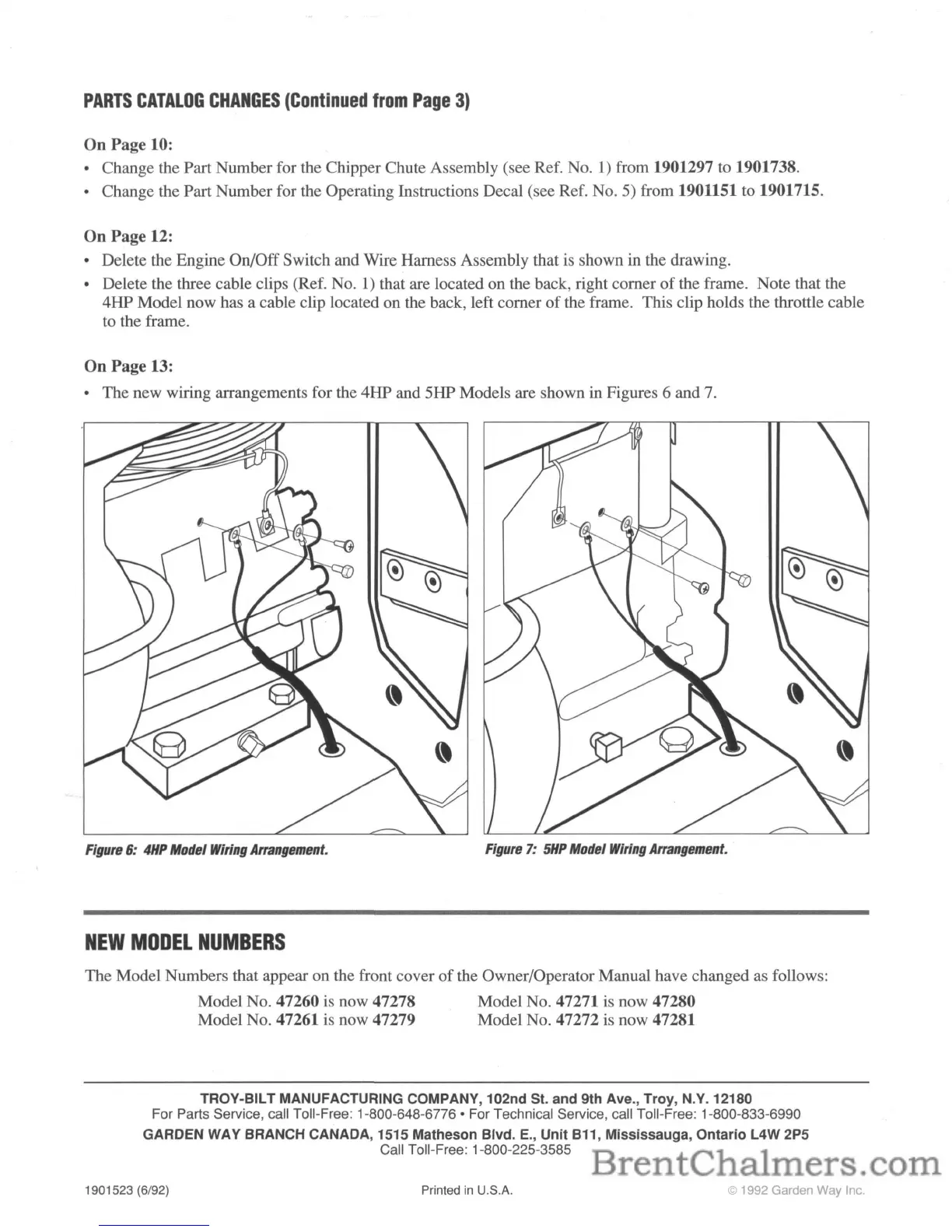

PARTS
CATALOG
CHANGES
(Continued
from
Page
3)
On
Page
10:
• Change the Part Number for the Chipper Chute Assembly (see Ref.
No.1)
from 1901297 to 1901738.
• Change the Part Number for the Operating Instructions Decal (see Ref.
No.5)
from 1901151 to 1901715.
On
Page
12:
• Delete the Engine On/Off Switch and Wire Harness Assembly that is shown in the drawing.
• Delete the three cable clips (Ref.
No.1)
that are located on the back, right comer
of
the frame. Note that the
4HP Model now has a cable clip located on the back, left comer
of
the frame. This clip holds the throttle cable
to the frame.
On
Page
13:
• The new wiring arrangements for the 4HP and 5HP Models are shown in Figures 6 and 7.
Figure
6:
4HP
Model
Wiring
Arrangement.
NEW
MODEL
NUMBERS
Figure
7:
5HP
Model
Wiring Arrangement.
The Model Numbers that appear on the front cover
of
the Owner/Operator Manual have changed as follows:
Model No. 47260 is now 47278 Model No. 47271
is
now 47280
Model No. 47261 is now 47279 Model No. 47272 is now 47281
TROY-BILT MANUFACTURING COMPANY, 102nd
51.
and
9th
Ave., Troy, N.Y. 12180
For Parts Service, call Toll-Free: 1-800-648-6776· For Technical Service, call Toll-Free: 1-800-833-6990
GARDEN
WAY
BRANCH CANADA, 1515 Matheson Blvd. E.,
Unit
B11,
Mississauga,
Ontario
L4W
2P5
Call Toll-Free: 1-800-225-3585
1901523 (6/92) Printed
in
U.S.A. © 1992 Garden Way Inc.
