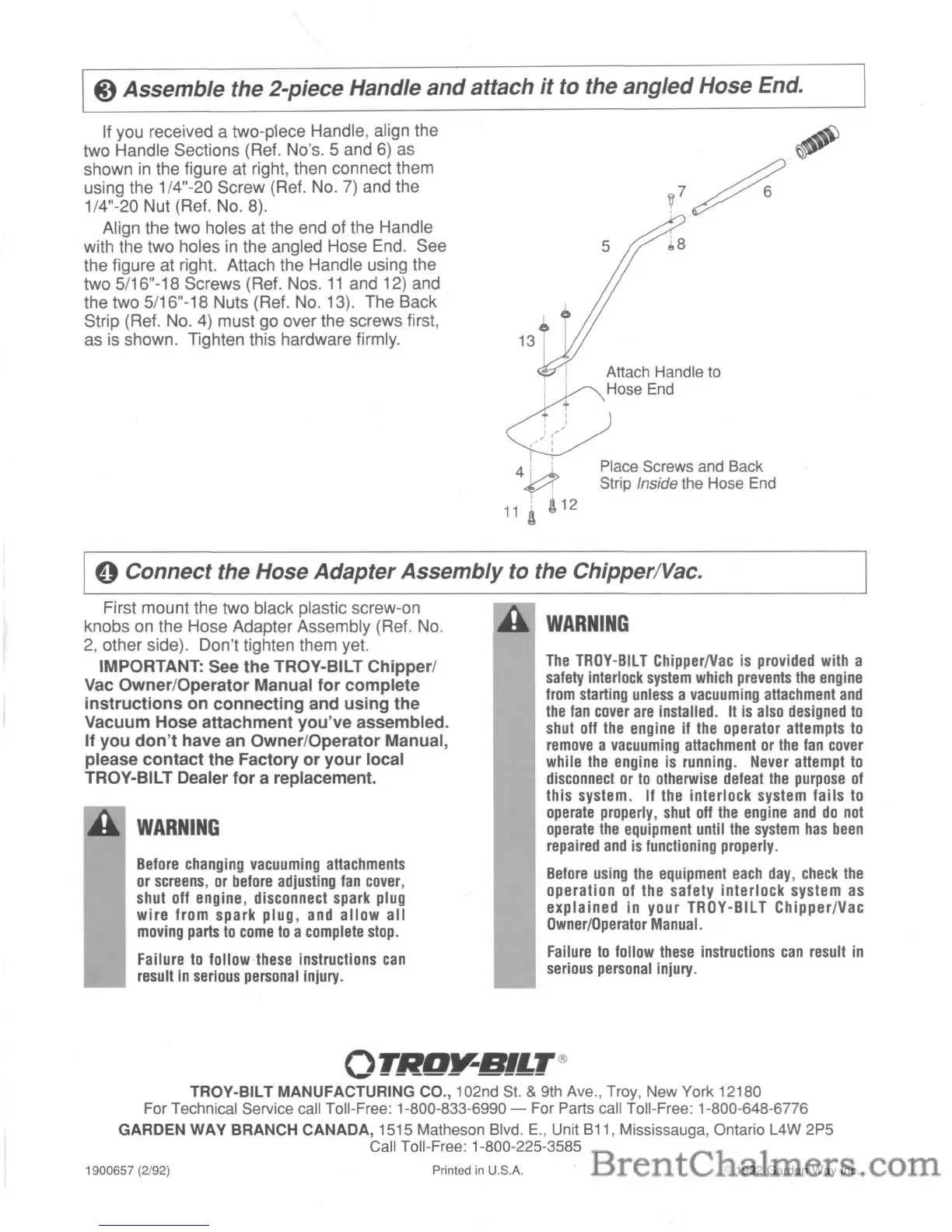

Assemble the 2-piece Handle
and
attach
it
to the angled Hose End.
If
you received a two-p1ece Handle, align the
two Handle Sections (Ref. No's. 5 and
6)
as
shown
in
the figure at right, then connect them
using the 1/4"-20 Screw (Ref.
No.7)
and the
1/4"-20 Nut (Ref.
No.8).
Align the two holes at the end of the Handle
with the two holes
in
the angled Hose End. See
the figure at right. Attach the Handle using the
two 5/16"-18 Screws (Ref. Nos.
11
and 12) and
the two 5/16"-18 Nuts (Ref. No. 13). The Back
Strip (Ref.
No.4)
must go over the screws first,
as is shown. Tighten this hardware firmly.
~8
13
, Attach Handle to
V
'
Hose End
I I
I
/
/ (
,/
:
4 i
~
Place Screws and Back
f":
Strip Inside the Hose End
11
! ! 12
oConnect the Hose Adapter Assembly to the ChipperlVac.
First mount the two black plastic screw-on
knobs on the Hose Adapter Assembly (Ref.
No.
2,
other side). Don't tighten them yet.
IMPORTANT: See the TROY-SILT Chipper/
Vac Owner/Operator Manual
for
complete
instructions
on connecting and using the
Vacuum Hose attachment you've assembled.
If you
don't
have an Owner/Operator Manual,
please
contact
the Factory
or
your
local
TROY-SILT Dealer
for
a replacement.
WARNING
Before
changing
vacuuming
attachments
or
screens,
or
before
adjusting
fan
cover,
shut off engine, disconnect
spark
plug
wire from spark plug,
and
allow all
moving
parts
to
come
to
a
complete
stop.
Failure
to
follow
these
instructions
can
result
in
serious
personal
injury.
WARNING
The
TROY-BILT
Chipper/Vac
is
provided
with
a
safety
interlock
system
which
prevents
the
engine
from
starting
unless
a
vacuuming
attachment
and
the
fan
cover
are
installed. It
is
also
designed
to
shut
off
the
engine
if
the
operator
attempts
to
remove
a
vacuuming
attachment
or
the
fan
cover
while
the
engine
is
running.
Never
attempt
to
disconnect
or
to
otherwise
defeat
the
purpose
of
this system. If
the
interlock system fails
to
operate
properly,
shut
off
the
engine
and
do
not
operate
the
equipment
until
the
system
has
been
repaired
and
is
functioning
properly.
Before
using
the
equipment
each
day,
check
the
operation
of
the
safety interlock system
as
exp
lained
in
you
r
TROY
-BILT
Chip
per/Vac
Owner/Operator
Manual.
Failure
to
follow
these
instructions
can
result
in
serious
personal
injury.
OTRD~B1LT®
TROY-Bll
T MANUFACTURING CO., 102nd St. & 9th Ave., Troy, New York 12180
For Technical Service call Toll-Free: 1-800-833-6990 - For Parts call Toll-Free: 1-800-648-6776
GARDEN WAY BRANCH CANADA, 1515 Matheson Blvd.
E.,
Unit B11, Mississauga, Ontario L4W 2P5
Call Toll-Free: 1-800-225-3585
1900657 (2/92) Printed
in
U.S.A. © 1992 Garden Way Inc.
