Thank you for purchasing a Vacuum Hose Kit (Part Number 1901111) for your TROY-BILT®
ChipperlVac. We know it will perform to your complete satisfaction if assembled and used properly.

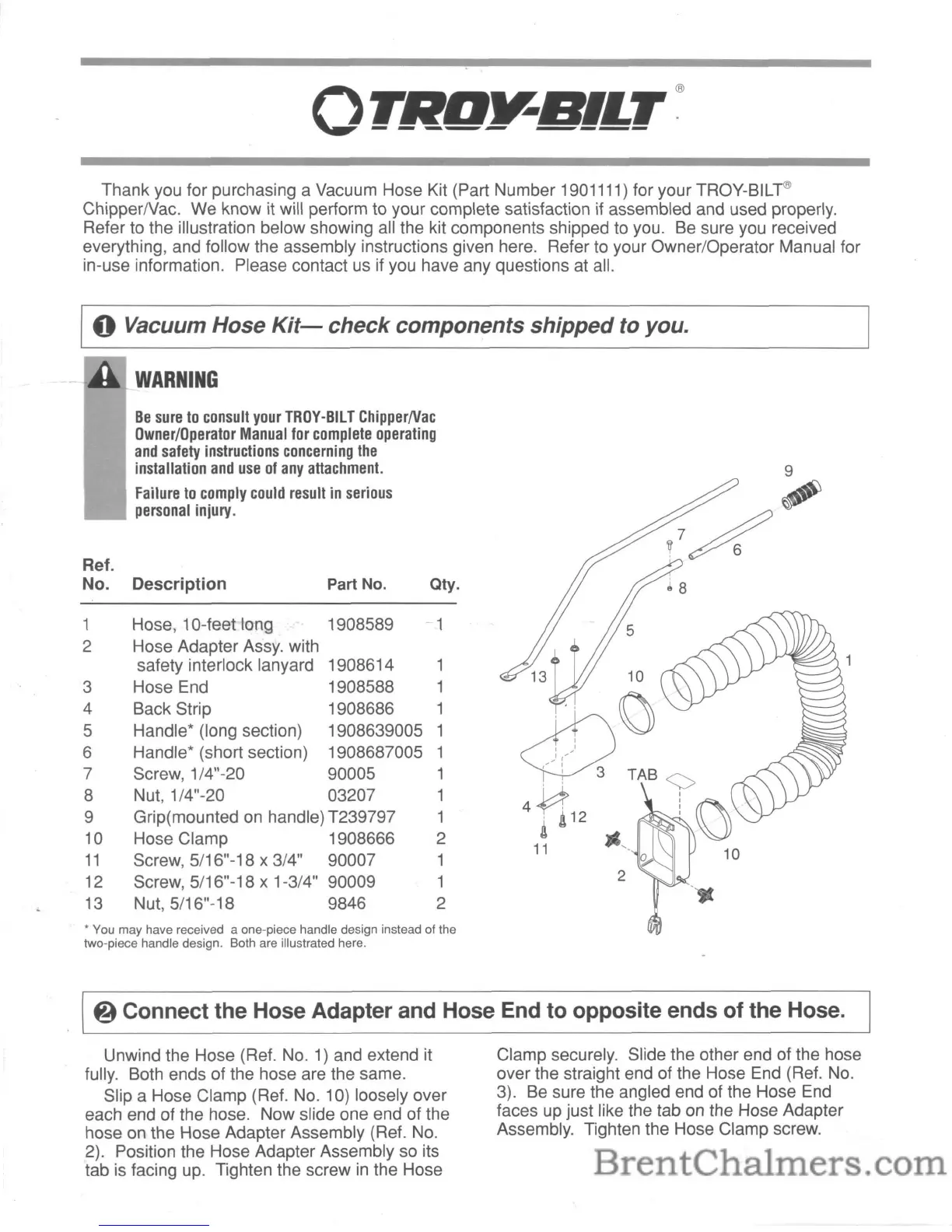

Refer to the illustration below showing all the kit components shipped to you. Be sure you received
everything, and follow the assembly instructions given here. Refer to your Owner/Operator Manual for
in-use information. Please contact us if you have any questions at all.
o Vacuum Hose
Kit-
check components shipped
to
you.
WARNING
Be
sure
to
consult
your
TROY-Bll
T
ChipperNac
Owner/Operator
Manual
for
complete
operating
and
safety
instructions
concerning
the
installation
and
use
of
any
attachment.
Failure
to
comply
could
result
in
serious
personal
injury.
Hose, 10-feet long
1908589-1
Hose Adapter Assy. with
safety interlock lanyard 1908614 1
Hose End 1908588 1
Back Strip 1908686 1
Handle* (long section) 1908639005 1
Handle* (short section) 1908687005 1
Screw, 1/4"-20 90005 1
Nut, 1/4"-20 03207 1
Grip(mounted on handle) T239797 1
Hose Clamp 1908666 2
Screw, 5/16"-18 x 3/4" 90007 1
Screw, 5/16"-18 x 1-3/4" 90009 1
Nut, 5/16"-18 9846 2
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Description
Part No. Qty.
• You may have received a one-piece handle design instead of the
two-piece handle design. Both are illustrated here.
@ Connect the Hose Adapter and Hose End to opposite ends of the Hose.
Unwind the Hose (Ref.
No.1)
and extend it
fully. Both ends of the hose are the same.
Slip a Hose Clamp (Ref. NO.1
0)
loosely over
each end of the hose. Now slide one end of the
hose on the Hose Adapter Assembly (Ref. No.
2). Position the Hose Adapter Assembly so its
tab is facing up. Tighten the screw
in
the Hose
Clamp securely. Slide the other end of the hose
over the straight end of the Hose End (Ref. No.
3). Be sure the angled end of the Hose End
faces up just like the tab
on
the Hose Adapter
Assembly. Tighten the Hose Clamp screw.
