TYM T954 User Manual

5 - 10
MAINTENANCE
J10O516A
J10O517A

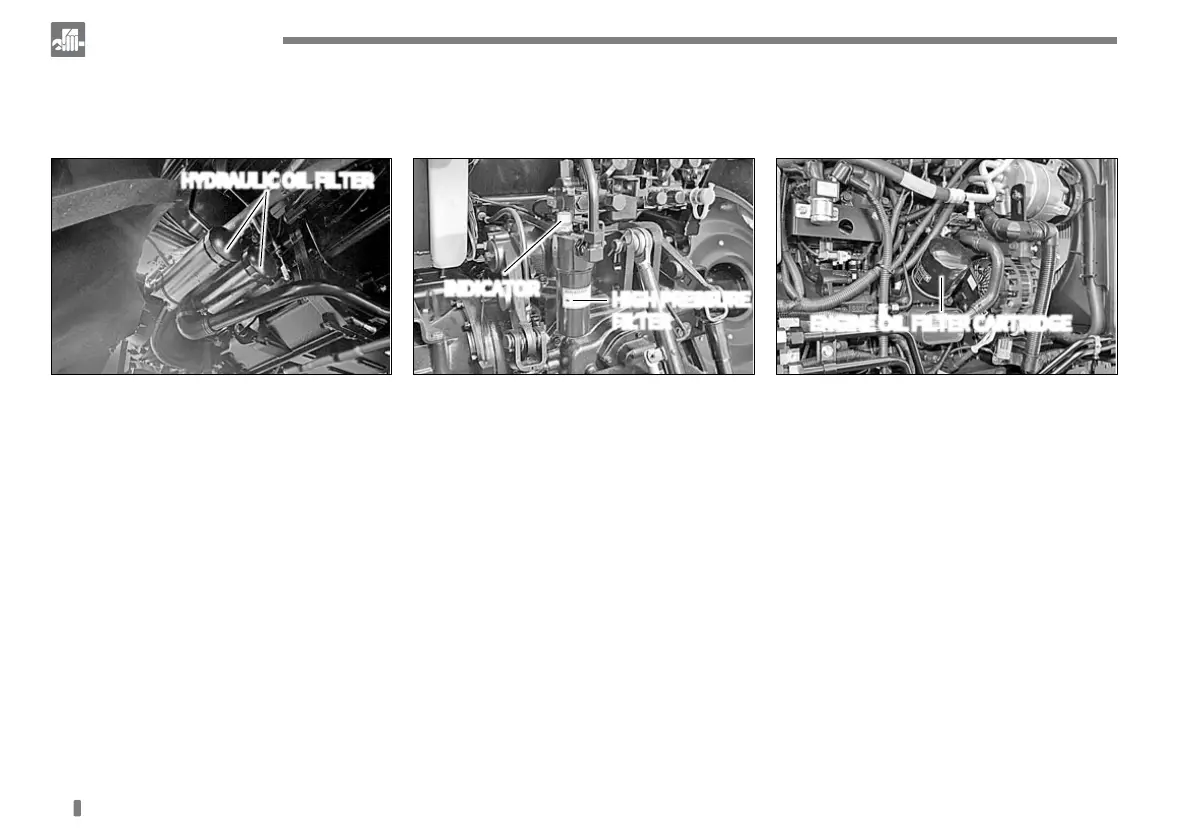

Indicator
High-pressure
lter
Hydraulic oil
lter
Engine oil lter
cartridge
J10O518A
5. REPLACING FILTER AND CARTRIDGE
REPLACING TRANSMISSION
HYDRAULIC OIL FILTER
①
Remove the hydraulic oil lter el
-
ement by turning it counterclock-
wise with a wrench.
②
Apply a thin lm of oil to the O-ring
of a new cartridge and install the
new cartridge by tightening it with
a hand. When its packing touches
the sealing surface, turn it approx.
2/3 turns further with a wrench.
③
Add the specied amount of hy
-
draulic oil.
④
Check the oil level with the dipstick
again. If still insufcient, add more.
► REPLACING AND SERVICING
HIGH-PRESSURE FILTER
①
When the indicator is turned on in
red after the engine is started, the
element needs to be replaced.
②
Stop the engine and turn the
cover counterclockwise with a
spanner to remove it.
③
Pull down the cartridge to remove it.
④
Replace the element.
⑤
Apply a thin film of oil to the
O-ring and push it up to t it.
⑥
Wash the removed cover with
hydraulic oil and install it with a
spanner.
⑦
Start the engine and conrm that
the indicator is turned on in green.
► REPLACING ENGINE OIL FIL-
TER CARTRIDGE
①
Remove the engine oil lter car
-
tridge by turning it counterclock-
wise with a wrench.
②
Apply a thin film of oil to the
O-ring of a new cartridge and in
-
stall the new cartridge by tight-
ening it with a hand. When its
packing touches the sealing sur-
face, turn it approx. 2/3 turns fur-
ther with a wrench.
③
Add the specied amount of en
-
gine oil.
►
