DESCRIPTION OF OPERATION SYSTEM

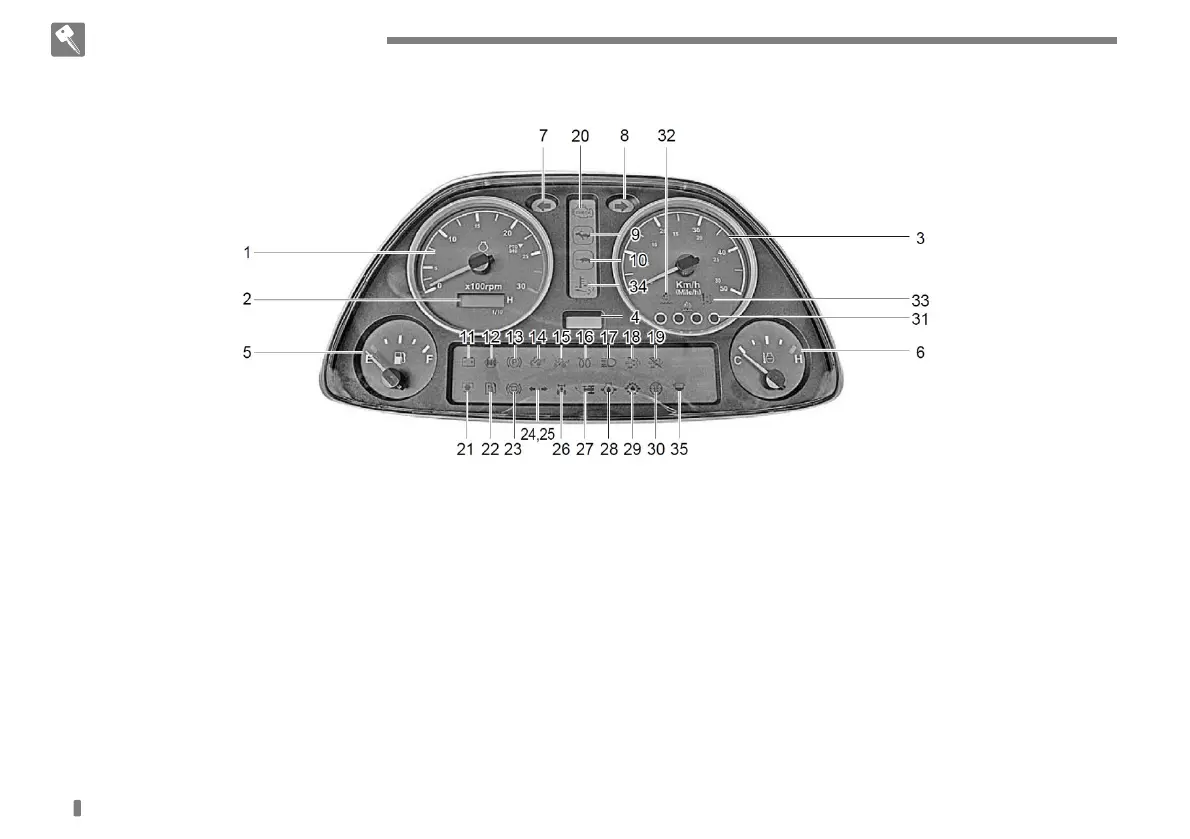

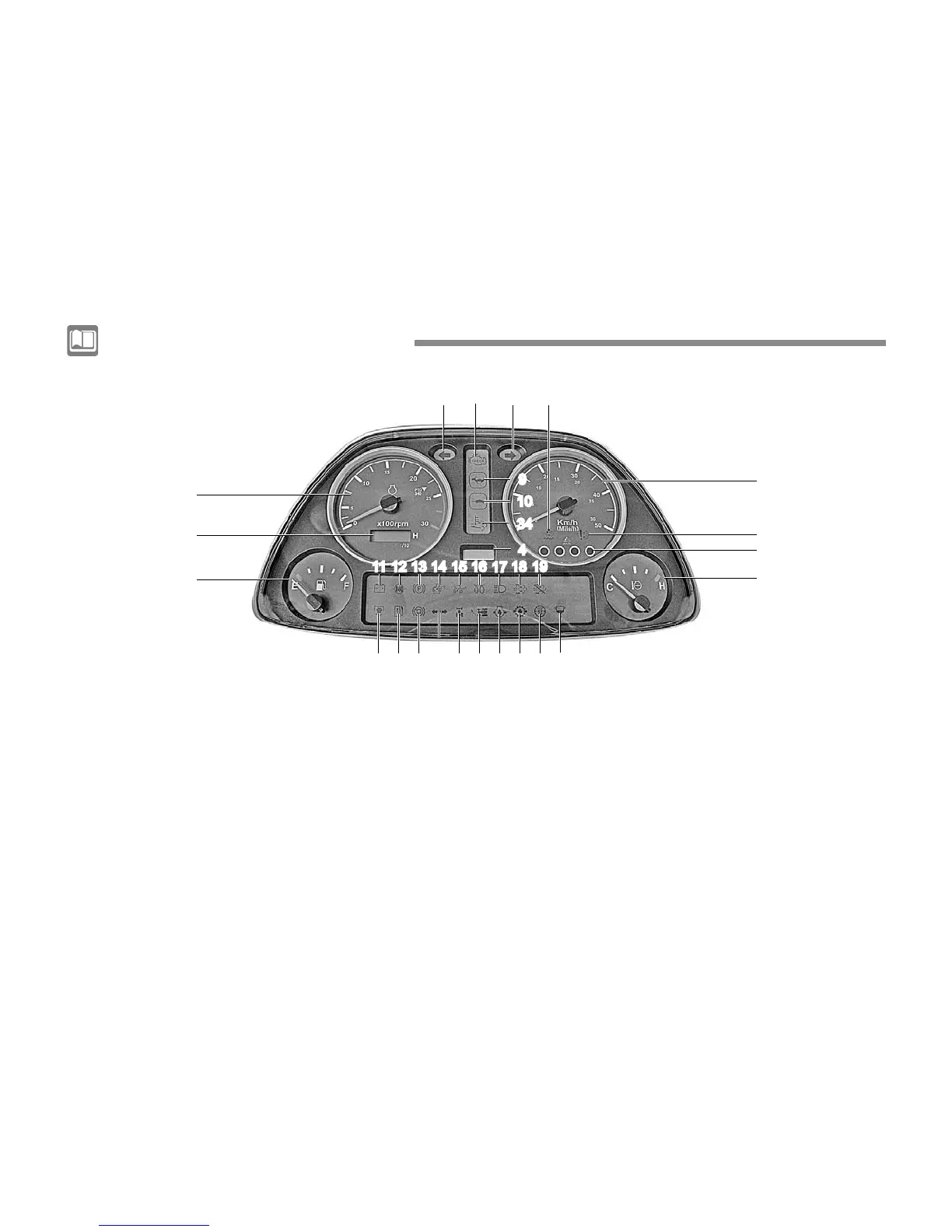

INSTRUMENT CLUSTER►
(1) Tachometer
(2) Hourmeter
(3) Speedometer
(4) Error Display
(5) Fuel Gauge
(6) Coolant Temperature Gauge
(7) Left Turn Signal Indicator
(8) Right Turn Signal Indicator
(9) High Gear Indicator
(10) Low Gear Indicator
(11) Charge Warning Lamp
(12) Differential Lock Indicator
(13) Parking Indicator
(14) Reverse Driving-lifting Indicator
(15) Turning-lifting Indicator
(16) Preheat Indicator
(17) High beam Indicator
(18) DeSOx Activation Indicator
(19) DeSOx Deactivation Indicator
(20) Engine warning lamp
(21) PTO Indicator
(22) Fuel Level Warning Lamp
(23) Trailer Brake Indicator (Spare)
(24) 1st Trailer Turn Signal Indicator (Spare)
(25) 2nd Trailer Turn Signal Indicator (Spare)
(26) 4wd Indicator
(27) Quick Turn Indicator (Optional)
(28) Engine Oil Pressure Warning Lamp
(29) Hydraulic Clutch Low Pressure
Warning Lamp/strainer Clogging
Warning Lamp
(30) Air Cleaner Clogging Warning Lamp
(31) Urea Level Lamp
(32) Urea Level Warning Lamp
(33) SCR Warning Lamp
(34) Automatic DeSOx activated
or Exhaust gas Warning Lamp
(35) Water in Fuel Warning Lamp
J10O309C
7 8
9
10
1
2
5
3
6
4
11 12 13 14 15 16
17
18 19
20
21 22 23
24,25
26 27 28 29 30
31
32
33
34
35
