J10O323A

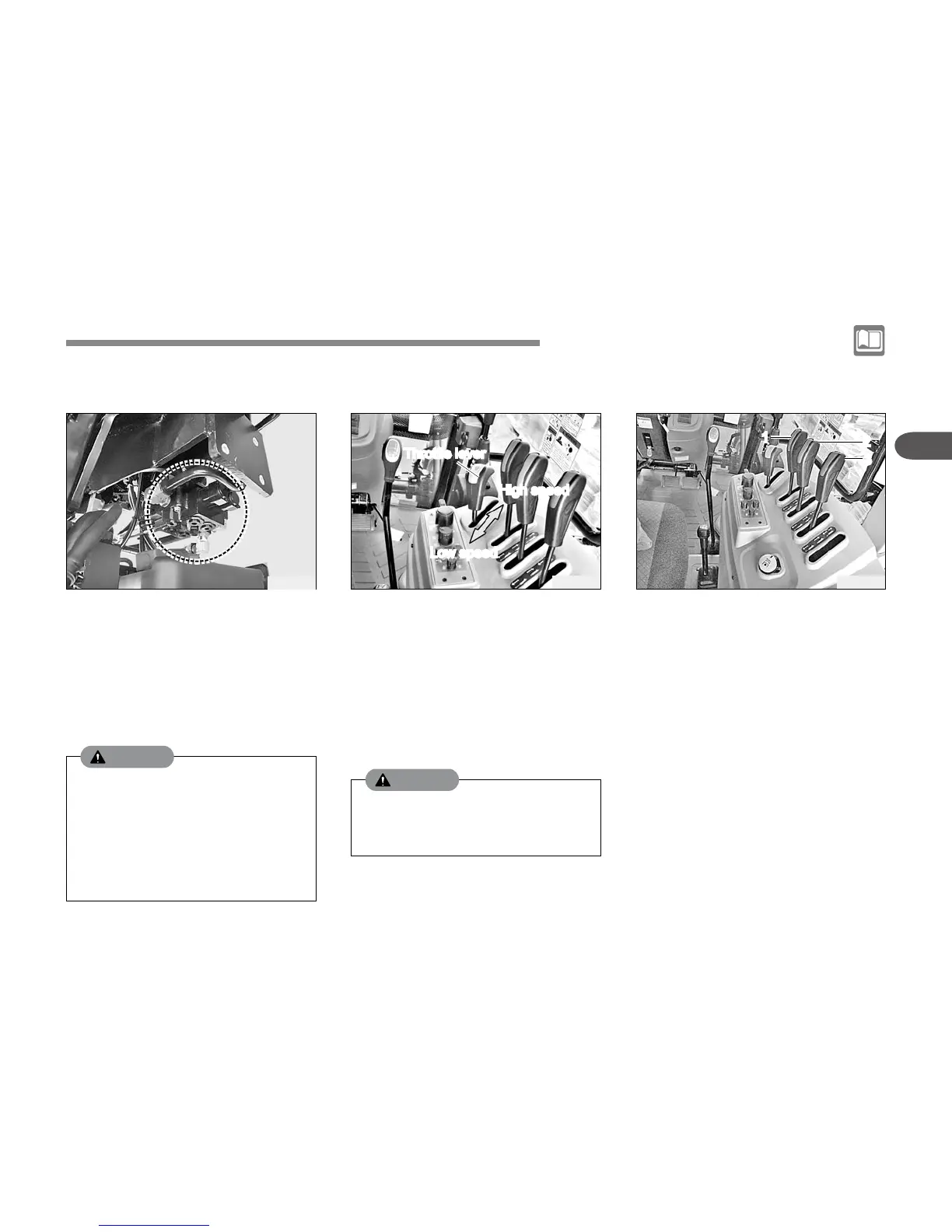

< Loader valve and joystick lever >
The loader valve is installed under
the step on the right side and the
joystick lever is installed on the right
from the driver's seat in the cabin
for easy installation and operation of
a loader.
(9) Throttle lever
Like the throttle pedal, it is used
to control the engine speed. This
lever is operated with a hand
and can be used to fix the en-
gine speed to a certain level.
Pushing: High speed, Pulling:
Low speed
(10)

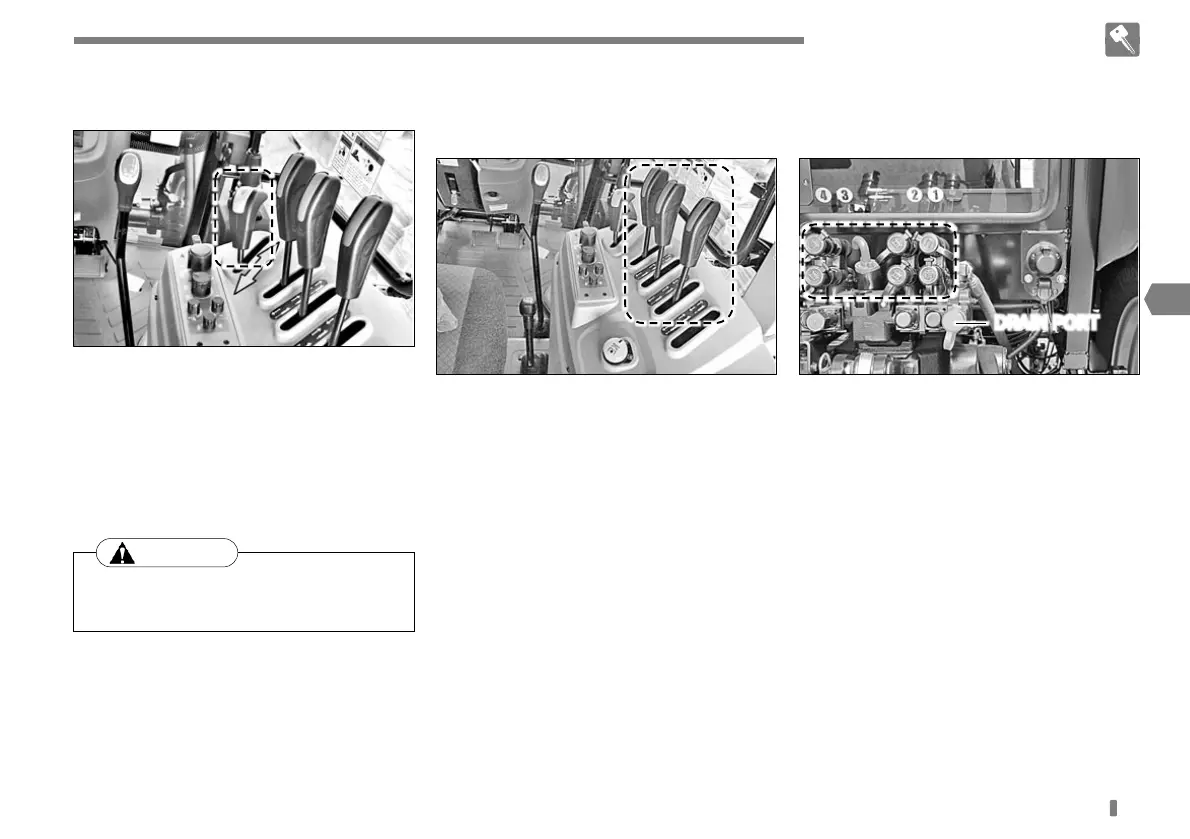

External hydraulic control lever
When using an attachment for
an implement (rotavator, hydrau-
lic plow, etc.), connect its hose to
the proper port among the port A,
B and C according to its use.
Lever 1 operation →
Hydraulic oil applied to valve port 1
Lever 2 operation →
Hydraulic oil applied to valve port 2
Lever 3 operation →
Hydraulic oil applied to valve port 3
J10O325A
1
2
3
Abnormal operation of a loader
can lead to an accident. There-
fore, when connecting the hy-
draulic pipes, set the valve con-
nection according to the operating
directions specified on the label
attached to the joystick lever.
•
WARNING
Avoid using it on a road as it can
cause an accident by high speed
driving.
•
WARNING
J10O324A
Low speed
Throttle lever
High speed
