Universal Robots UR5 Original Instructions

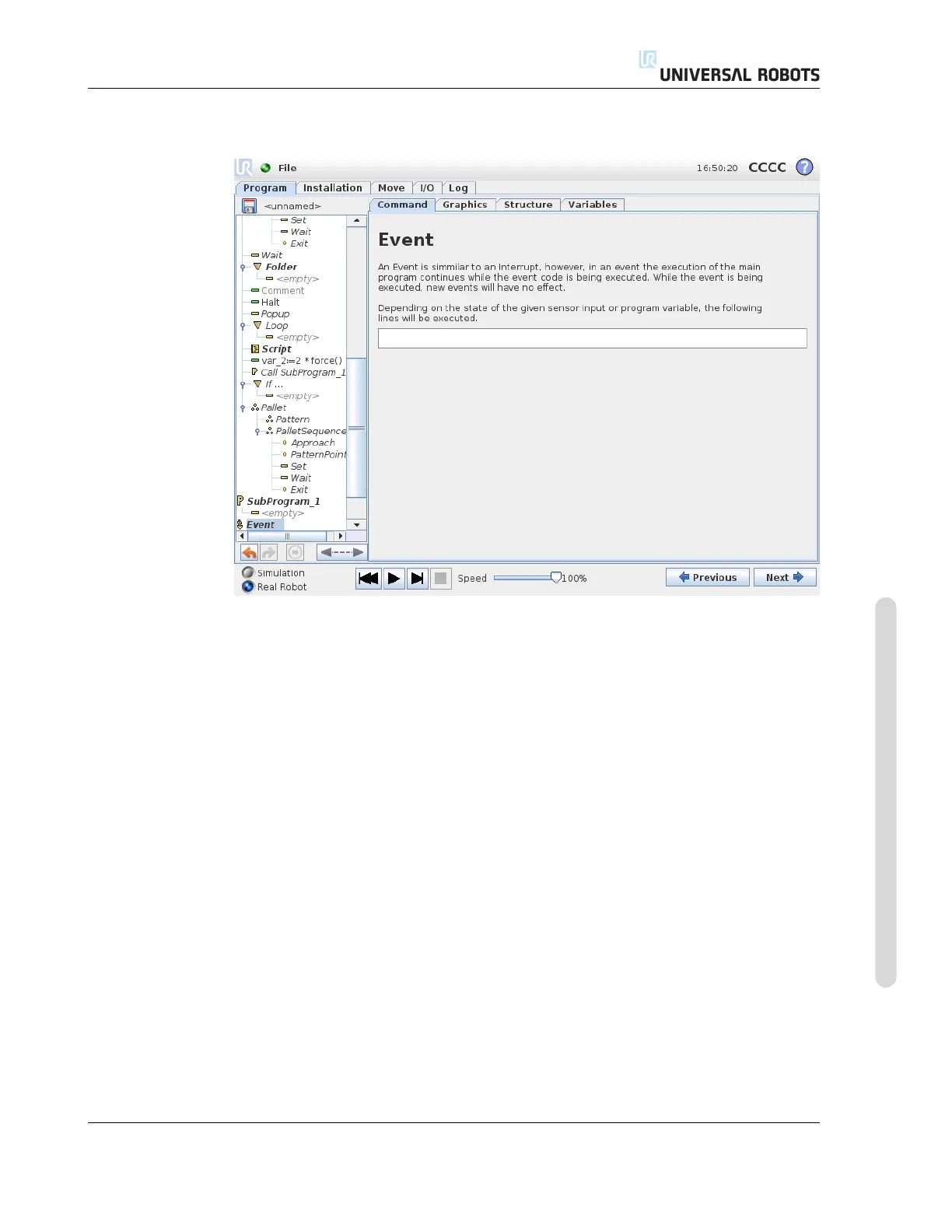

13.20 Command: Event
13.20 Command: Event
An event can be used to monitor an input signal, and perform some action or set a
variable when that input signal goes high. For example, in the event that an output
signal goes high, the event program can wait for 200ms and then set it back to low
again. This can make the main program code a lot simpler in the case on an external
machine triggering on a rising flank rather than a high input level. Events are checked
once every control cycle (8ms).
Version 3.1 (rev. 17782)
Copyright © 2009-2015 by Universal Robots A/S. All rights reserved.
II-69 CB3

Universal Robots UR5 Specifications

General

Payload	5 kg
Reach	850 mm
Degrees of Freedom	6
Weight	20.6 kg
Repeatability	±0.1 mm
Power Supply	100-240 VAC, 50-60 Hz
Operating Voltage	24 VDC
Protection Rating	IP54
Programming Method	Polyscope graphical user interface
Operating Temperature	0°C to 50°C
Communication Interface	Ethernet
