Engine synchronization disable
Both the operating economy and comfort is increased
when the engines are operating at the same engine
speed (rpm). The synchronization function
automatically adjusts the engine speed (rpm) of the
starboard engine to that of the port engine.
The following conditions must be met for the function to
be activated:
1 The engine speed levers for both engines are in
(approximately) the same position.
2 The engine speed levers are in a forward position.
The synchronizer is disengaged when the conditions
are no longer met or if the engines reach maximum

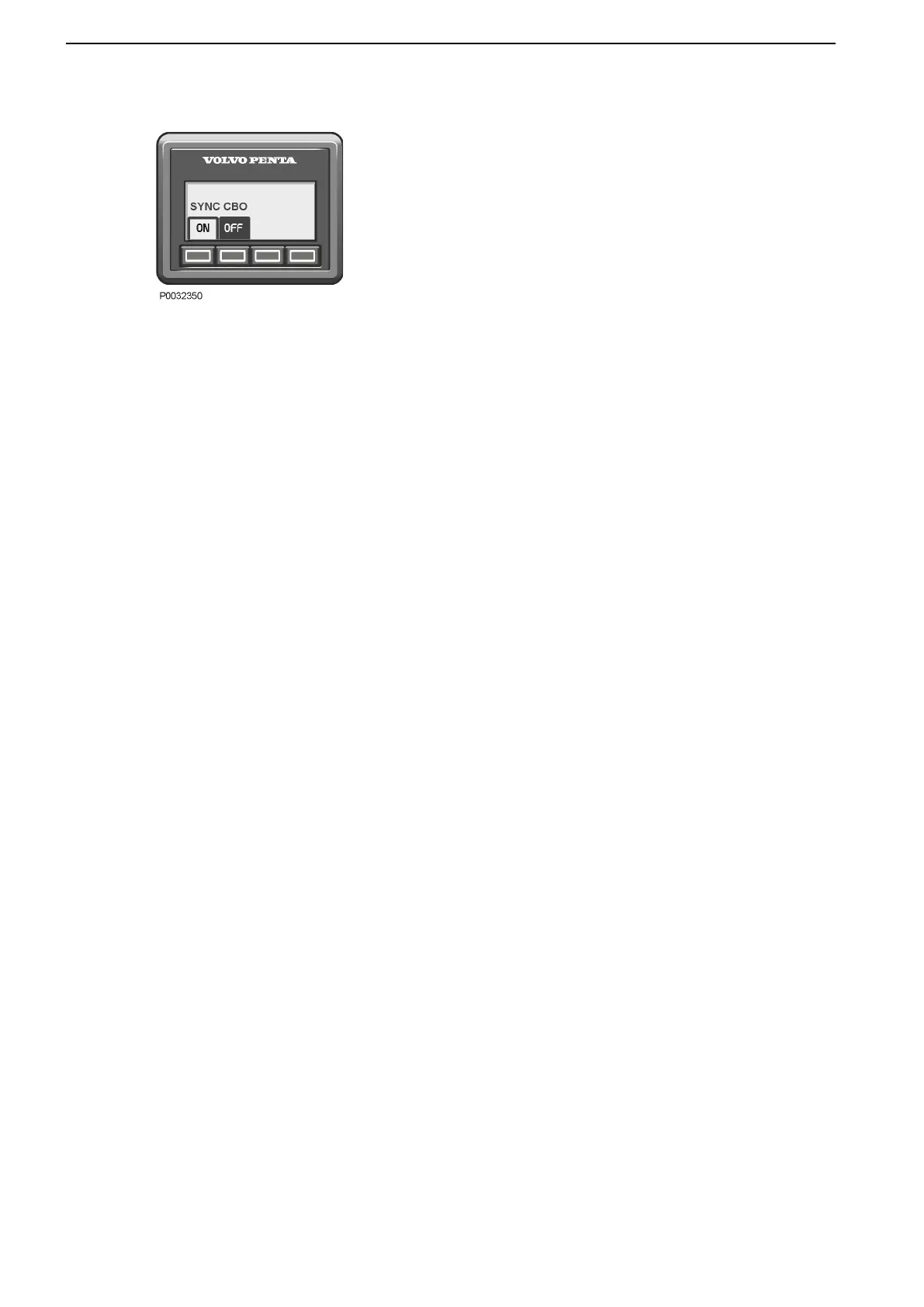

throttle. It is also possible to turn of the function through
the synchronization panel
CBO (Center Boost Only)
For triple installations, both starboard and center
engine automatically adjusts to the port engine.
When CBO is activated, the center engine is adjusted
to the engine with highest speed.
Operation
98 47712786 11-2022 © AB VOLVO PENTA
