Displays
Information Display

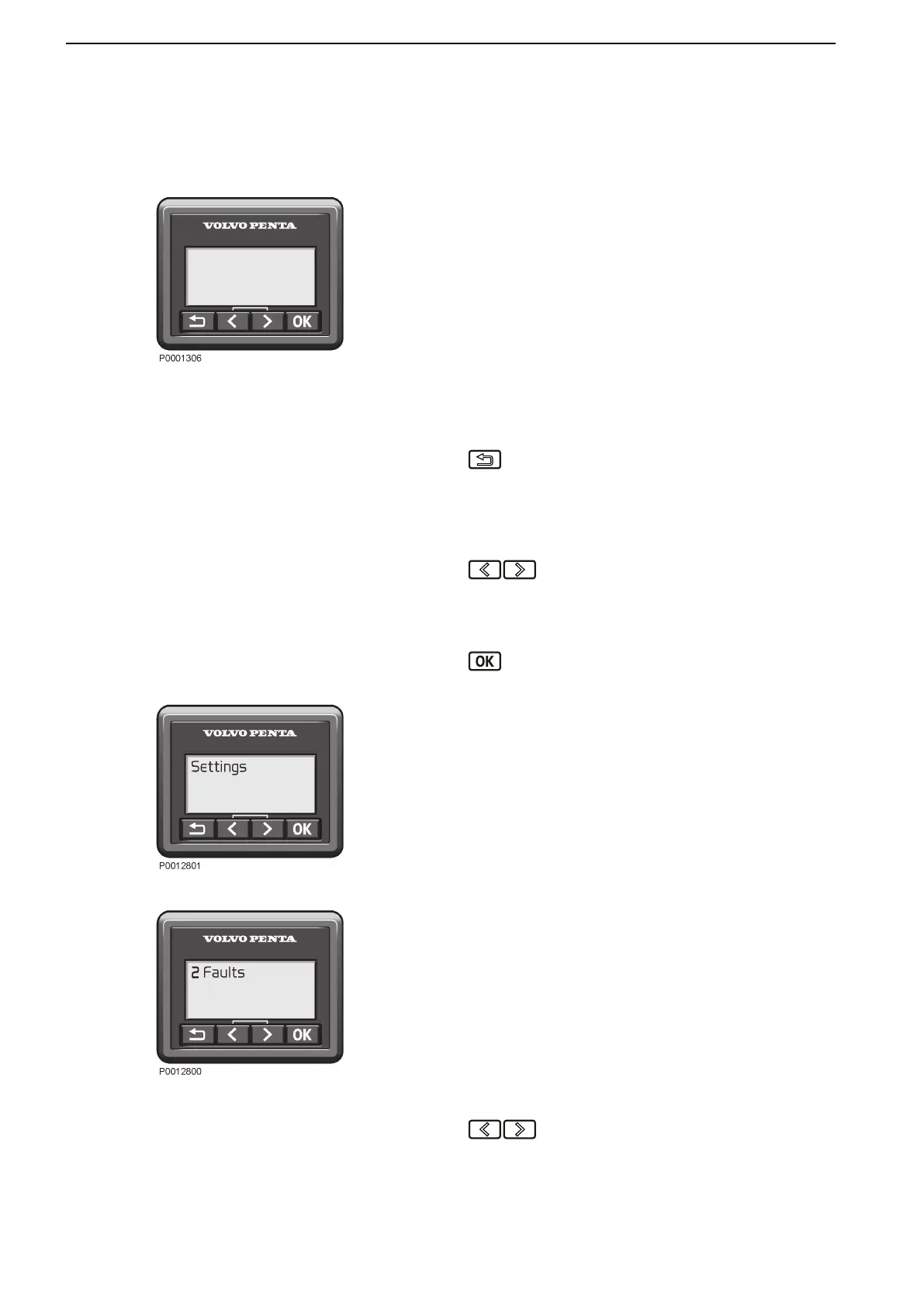

The information display shows engine and operational
information, messages and alarms.
There is one information display per driveline and helm
station if no 7" or larger screen is installed.
The information shown can be set up according to
personal preferences. The basic settings show:
•
Engine speed
•
Oil pressure
•
Coolant temp
•
Battery voltage
Press this button to return to the previous menu.
To navigate back to the main menu, hold the button
down for more than three seconds or press the button
repeatedly.
Press these buttons to navigate backwards and
forwards in the menus.
Hold down a button to scroll through a menu.
Press this button to confirm a selection.
Settings
Browse to the settings menu and press the OK button
to proceed to the submenu.
For further information about settings, refer to Settings
Menu, page 139.
Fault Messages
If the system discovers a fault, the word Fault and the
number of discovered faults, are shown on the display.
To see the what faults have been detected, press the
OK button.
For further information on how to handle fault
messages and recommended actions, refer to Fault
handling, page 103.
Backlighting
Display backlighting can be adjusted by pressing the
buttons simultaneously.
Instruments and Controls
30 47712786 11-2022 © AB VOLVO PENTA
