Adjusting the friction brake
Top mounted lever

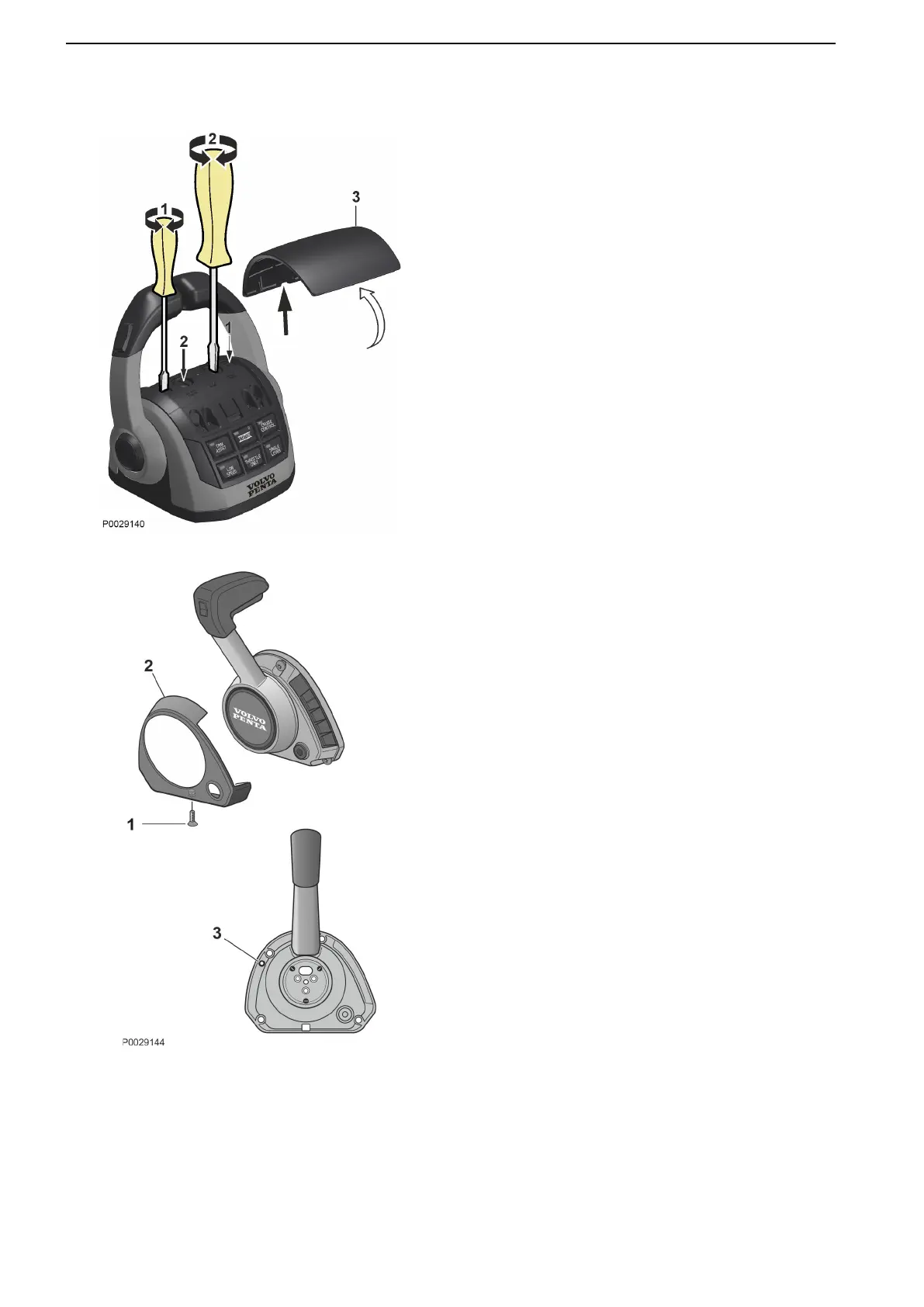

The control lever has a friction brake that can be
adjusted for lighter or stiffer lever movement.
Resistance in click mode can also be adjusted.
1 Switch off the engine.
2 Remove the cover (3).
3 Adjust the friction brake (1) and/or click mode (2) by
turning the screw clockwise for stiffer lever
movement, and counterclockwise for lighter lever
movement.
4 Replace the cover.
Side mounted lever
Adjust the resistance in the lever click mode.
1 Switch off the engine.
2 Unscrew the screw (1) and remove the cover (2).
3 Adjust the detention by turning the screw (3) with a
2.5 mm hex wrench. Turn the screw clockwise for
an increased detent , and counterclockwise to
decrease the detent.
4 Replace the cover.
