46
Crankshaft assembly
11

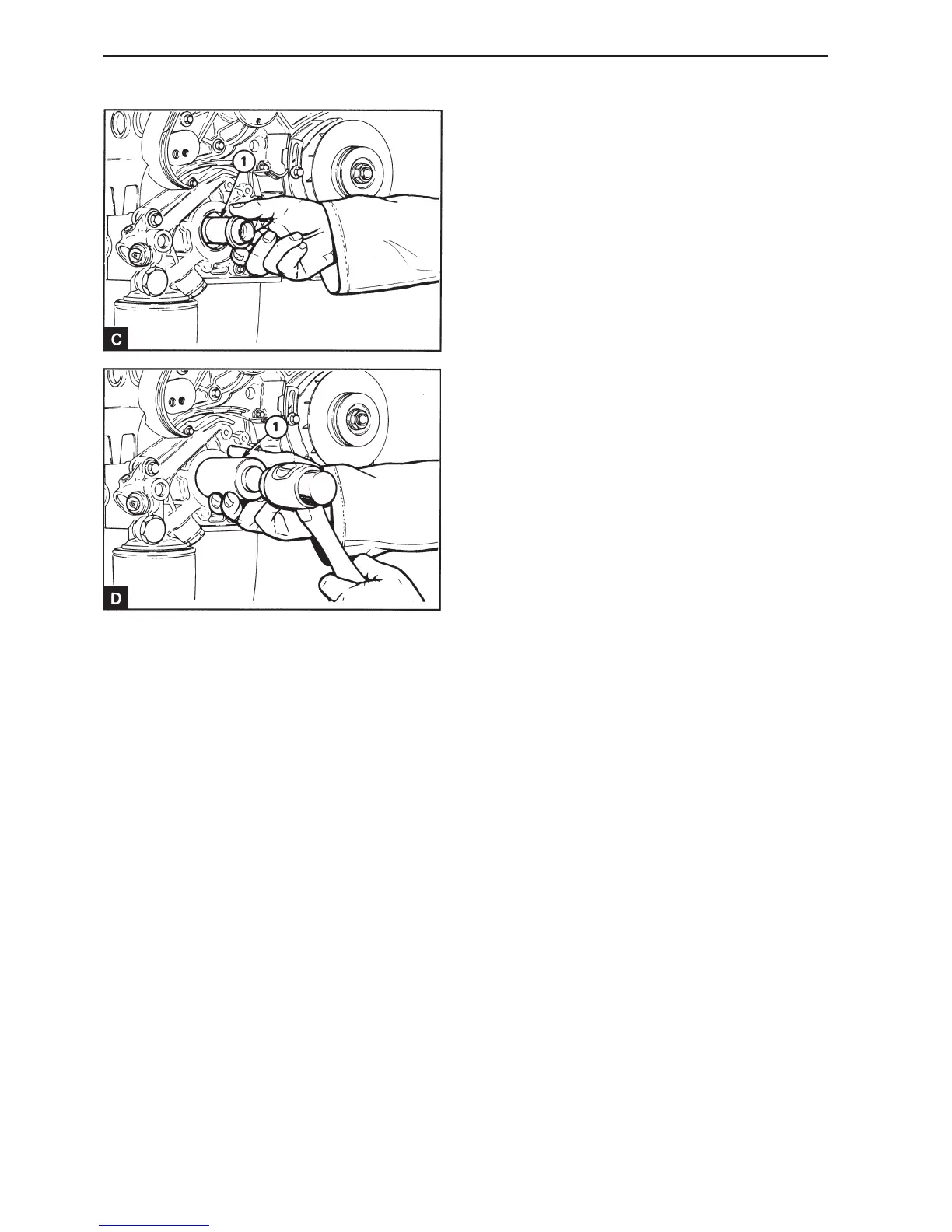

Install protective socket 885032 (C1) on the crank-
shaft. Lubricate the new sealing ring with fresh en-
gine oil. Insert the sealing ring in position over the
protective socket with the seal lip turned towards
the engine. Remove the protective sleeve. Use in-
stallation tool 885033 (D1) and a hammer with a soft
face to drive the sealing ring into the correct posi-
tion. The correct position for the sealing ring is
when the sealing ring front surface is 0.5 mm inside
the housing.
12
Install the key in the crankshaft and install the drive
pulley on the crankshaft, operation 15A-07. If the
brush seal is not installed in the cap for the timing
cover, install the crankshaft pulley, operation 14A-
01 or 14A-01B.
13
Install the timing belt and adjust the belt tension,
see section 15.
14
Remove the adjustment drifts and the pulley drifts.
Check the fuel injection pump adjustment, opera-
tions 17A-03.
15
Turn the crankshaft two revolutions to ensure that
there is nothing preventing free movement.
16
Install the cap for the timing cover, operation 15A-
01. If the brush seal is installed in the cap install the
crankshaft pulley, operation 14A-01A or 14A-01B.
17
Install the pulley for the water pump and the drive
belt for the generator, operation 22A-03.
18
Install the starter motor and connect the battery.
