Timing cover and drive
Timing cover inner, replace-
ment (15A-08)
Special tools: 885037, 885027, 885029
1
Disconnect the battery.
2
Remove the screw over the adjustment hole in the
camshaft cover. Turn the crankshaft until the ad-
justment hole in the front of the camshaft corre-
sponds with the hole in the cover. Install the adjust-
ment drifts 885037 in the camshaft and the flywheel.
3
Remove the starter motor.
4
Remove the crankshaft pulley, operation 14A-01A.
5
Remove the cap of the timing cover, operation 15A-
01.
6
Install the two screws (M6 x 50) through the smooth
holes in the fuel injection pump pulley and in the
pump bracket.
7
Remove the timing belt, operation 15A-04.
8
Remove the fuel injection pump pulley, operation
15A-05 and the camshaft pulley, operation 15A-06.
9

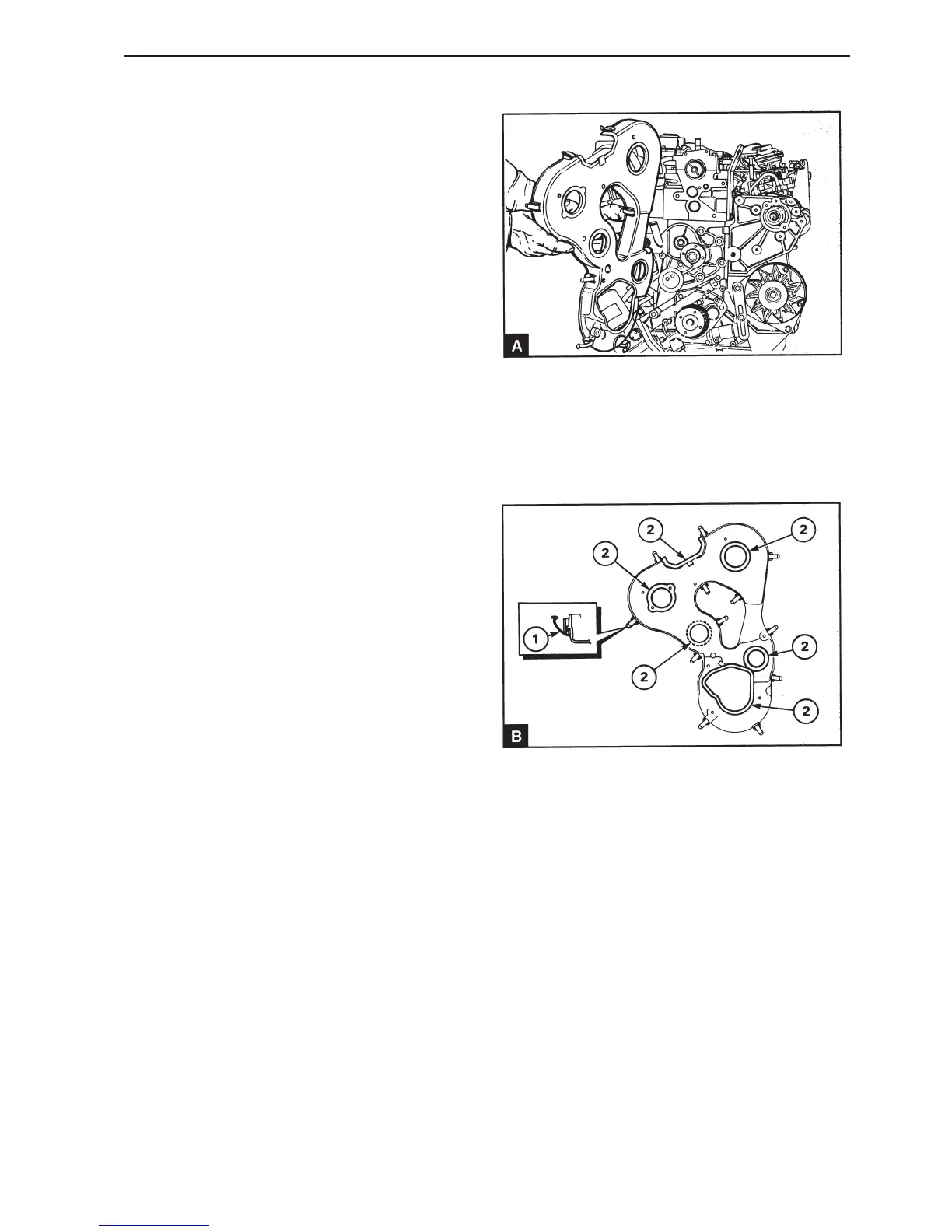

Unscrew the screws securing the timing cover to
the cylinder head, the cylinder block, the fuel injec-
tion pump bracket and the oil pump. Remove the
timing cover (A).
10
Check the timing cover for cracks and damage and
replace it if required. Check that all the clips are
correctly installed in the timing cover (B1).
11
Check that the mating surfaces of the timing cover
and engine are clean. Install the cover in position
and tighten with the mounting screws. Tighten the
screws to the correct torque in relation to the thread
dimension, see Workshop Manual “Technical Data”.
