Introduction

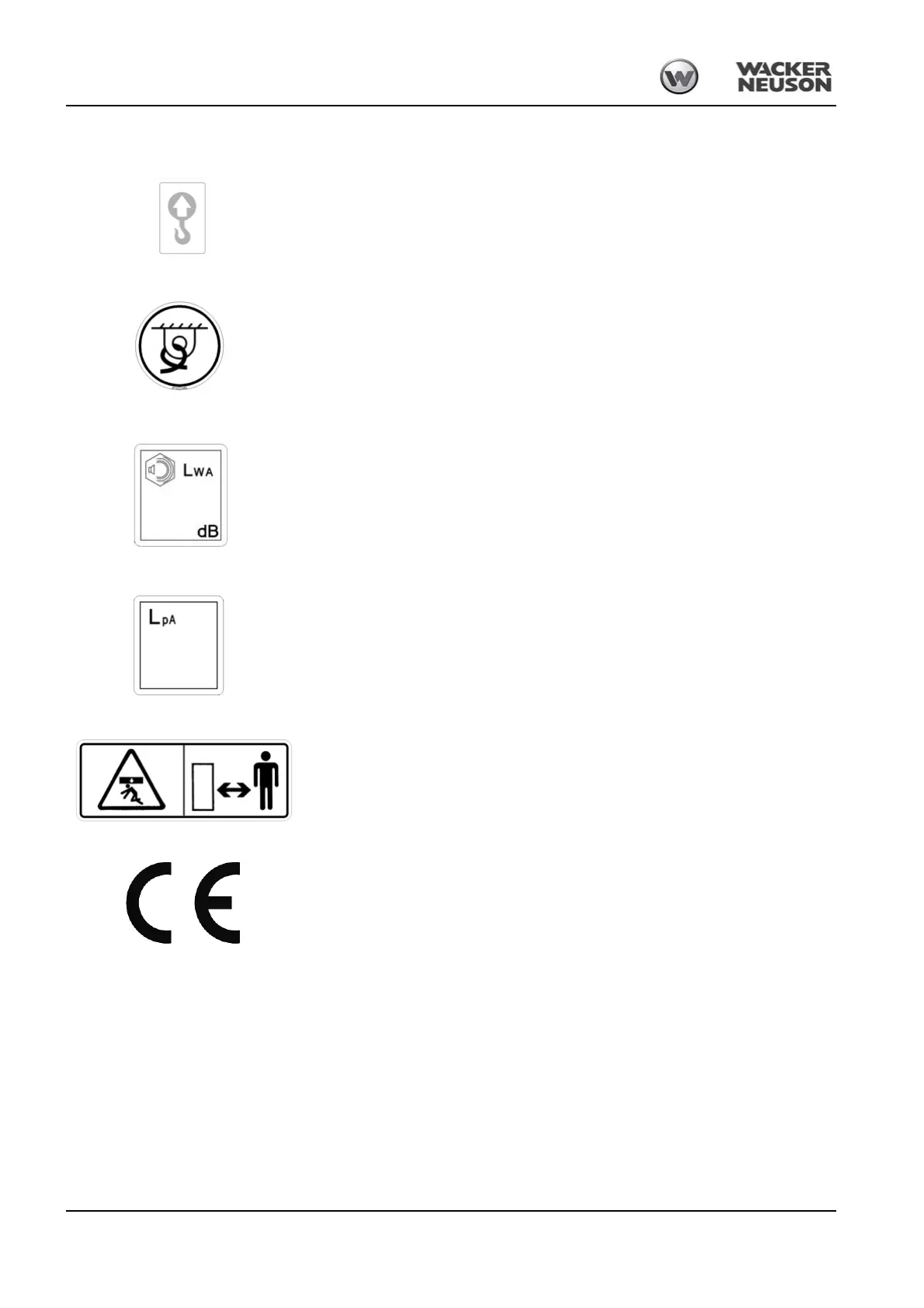

The following states signs and symbols which are not unequivocally comprehensible. They
do not contain explanatory text and are not explained in the following chapters.
Meaning
Machine is raised by the eye hooks
– see chapter Crane handling the machine on page 3-20
Location
On the chassis near the front and rear eye hooks
Meaning
Points for tying down the machine.
The eye hooks are used for tying down the machine during loading and transport.
– see chapter Tying down the machine on page 3-22
Location
On the chassis near the front and rear eye hooks.
Meaning
Noise levels produced by the machine.
L
WA
= sound power level
Other information – see chapter on page 6-35
Location
Protective plate on control stand
Meaning
Indication of driver-perceived sound pressure level.
L
Pa
= sound pressure level
Other information – see chapter on page 6-35
Location
Protective plate on control stand
Meaning
General indication of danger
This symbol alerts persons standing or working near the machine of an existing danger.
Location
On left and right of skip
Meaning
The CE mark means that the machine meets the requirements of the Machine Directive
and that the conformity procedure has been carried out. The machine meets all the health
and safety requirements of the Machine Directive.
Location
On the type label
Fig. 6: Eye hook label
Fig. 7: Label for points used for tying down the machine
Fig. 8: Noise level label
XX
Fig. 9: Label with indication of sound pressure
XX
Fig. 10: Danger label
Fig. 11: CE mark
