Operation
Dumping out the skip upwards (option)
Careful when handling the high-tip skip –
Danger of accidents!
☞ Do not raise or dump out the skip when driving
☞ Do not raise or dump out the skip on slopes or in an inclined position
☞ Place the machine on level and horizontal ground
☞ Dump out skipA upwards
☞ Pull control lever 1 backwards C
➥ Skip is raised
☞ Dump out skip D
☞ Push control lever 2 forwards F
➥ Skip dumps out
Emergency lowering of the skip
Emergency lowering of the skip –
Danger of crushing and injury!
☞ Stay clear of the skip
Emergency lowering of the skip is only possible with the help of two persons.
☞ Pull lever 2 backwards A during emergency lowering and keep it in this position
• Once the skip is fully dumped out
☞ Push the skip downwards by hand beyond pivot point B and at the same time, pull
lever 2 backwards A
☞ The skip is lowered by its own weight once it is beyond the pivot point.

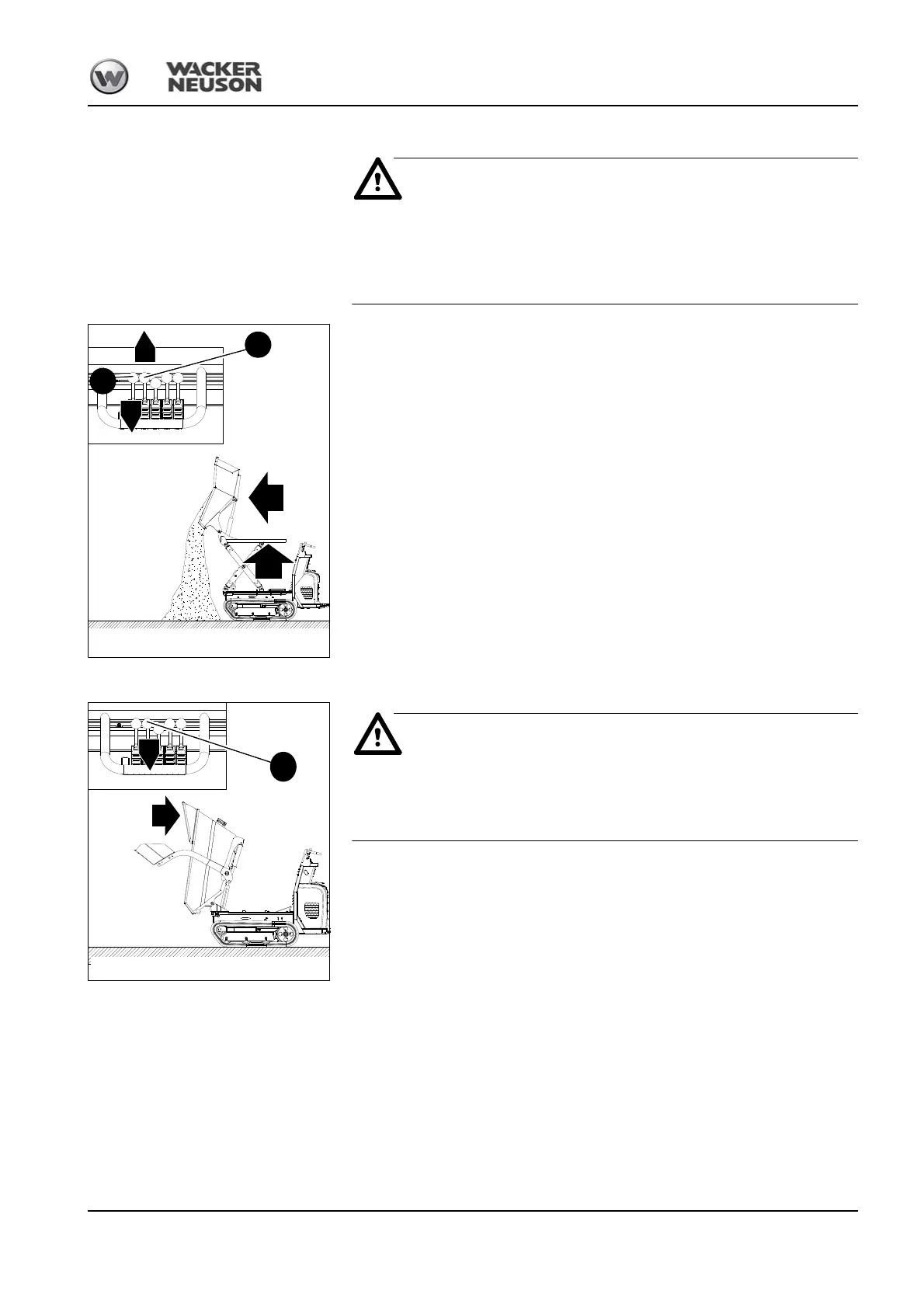

Fig. 63: Dumping out the skip upwards (option)
D
A
F
C
2
1
Fig. 64: Emergency lowering of the skip
2
B
A
