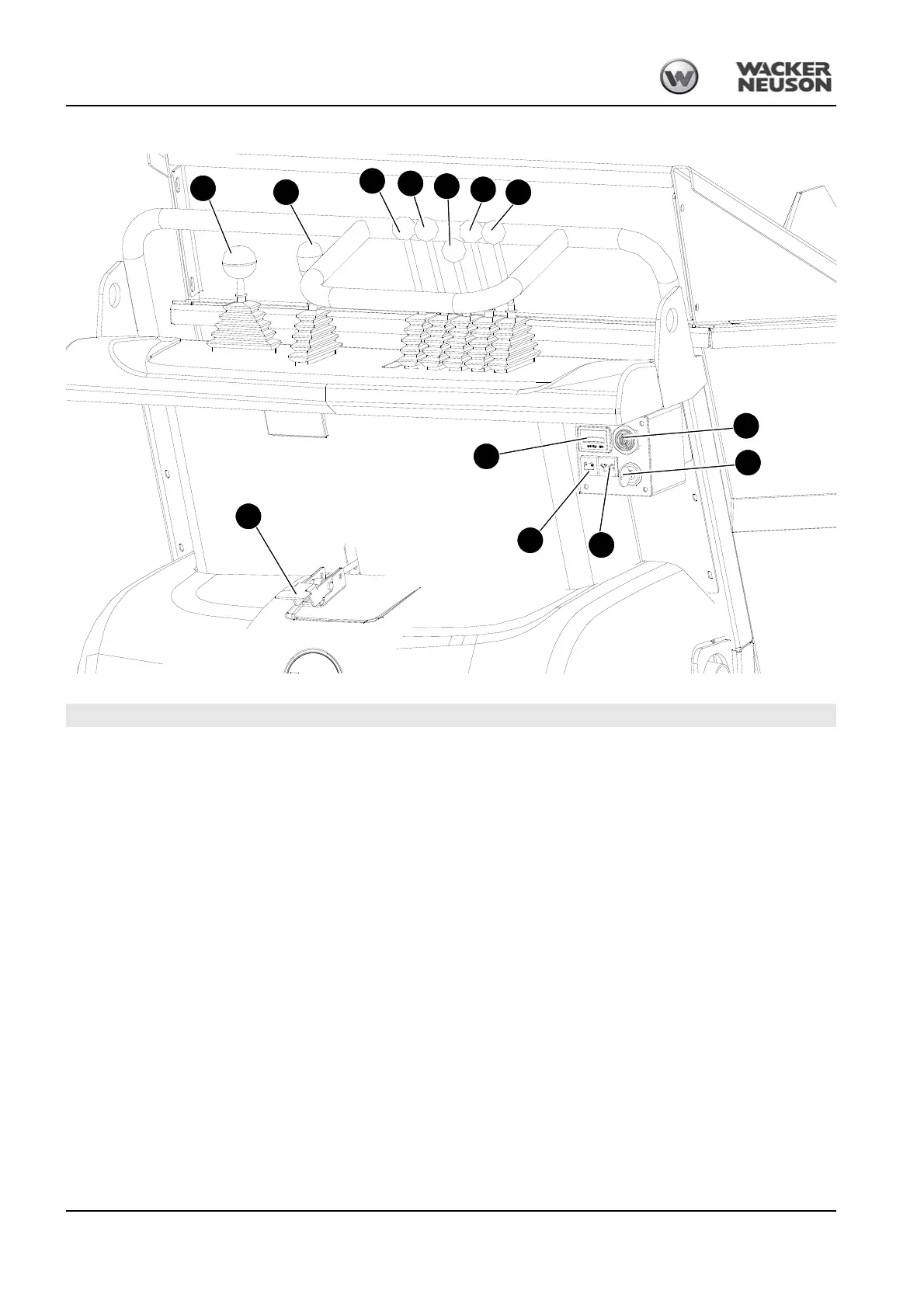

3.2 Control stand overview (model DT08-D skip and high-tip skip)
1
2
3
5
4
6
12
8
9
10
13
7
11
Pos.
Description For more information see page
1 Loader unit operation (option)/raise skip (option) ......................................................................................................................3-18
2 Skip operation ......................................................................................................................................................................3-17
3 Normal or high speed lever ....................................................................................................................................................3-13
4 Drive lever (left) ....................................................................................................................................................................3-13
5 Drive lever (right) ..................................................................................................................................................................3-13
6 Throttle
7 Auxiliary hydraulics (option)....................................................................................................................................................................
3-28
8 Hour meter
9 Ignition lock
10 Alternator charge function indicator light ....................................................................................................................................3-3
11 Engine oil pressure indicator light 3-3
12 Lock
13 Buzzer ...................................................................................................................................................................................................... 3-3
