Wacker Neuson E 2200 User Manual

Operation E 2200 / E 3000ES
34 wc_tx001667gb.fm

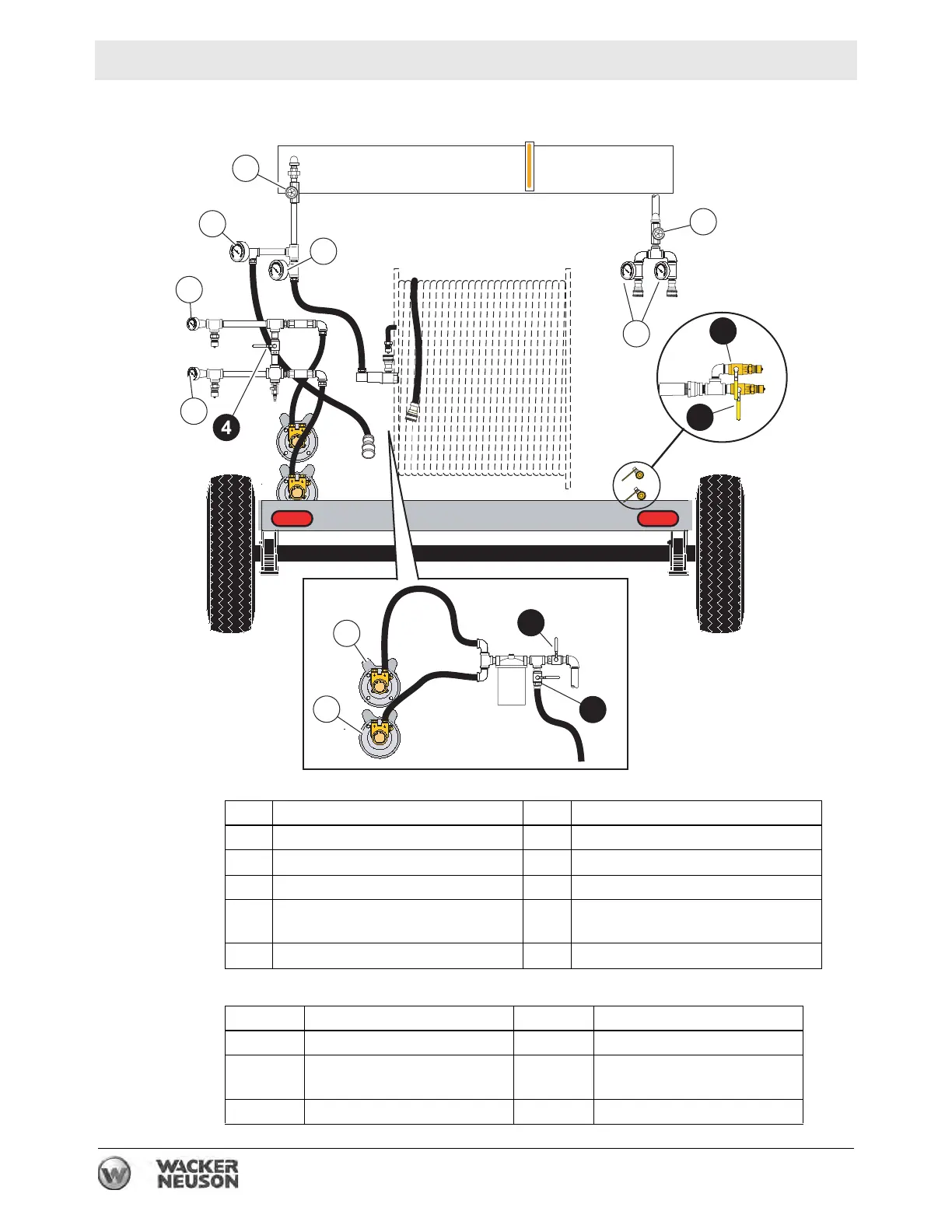

4.5 Pumps, Gauges, and Valves
Pumps and
Gauges
Valves
wc_gr007816
d
b
a
h
i
c
e
f
g
5
1
2
3
Ref. Description Ref. Description
a Return flow indicator f Pump 1
b Loop 1 return flow temperature g Pump 2
c Loop 2 return flow temperature h Auxiliary return flow indicator
d Loop 1 supply flow pressure i Auxiliary return flow temperature
(quantity 1 on E 3000ES)
e Loop 2 supply flow pressure — —
Valve # Description Valve # Description
1 Pump Pack supply 4 Cross connect valve
2 Pump suction valve 5 Pump Pack supply (not
included on E 3000ES)
3 HTF fill valve — —
