Burner Setup E 2200, E 3000ES
80 wc_tx001669gb.fm

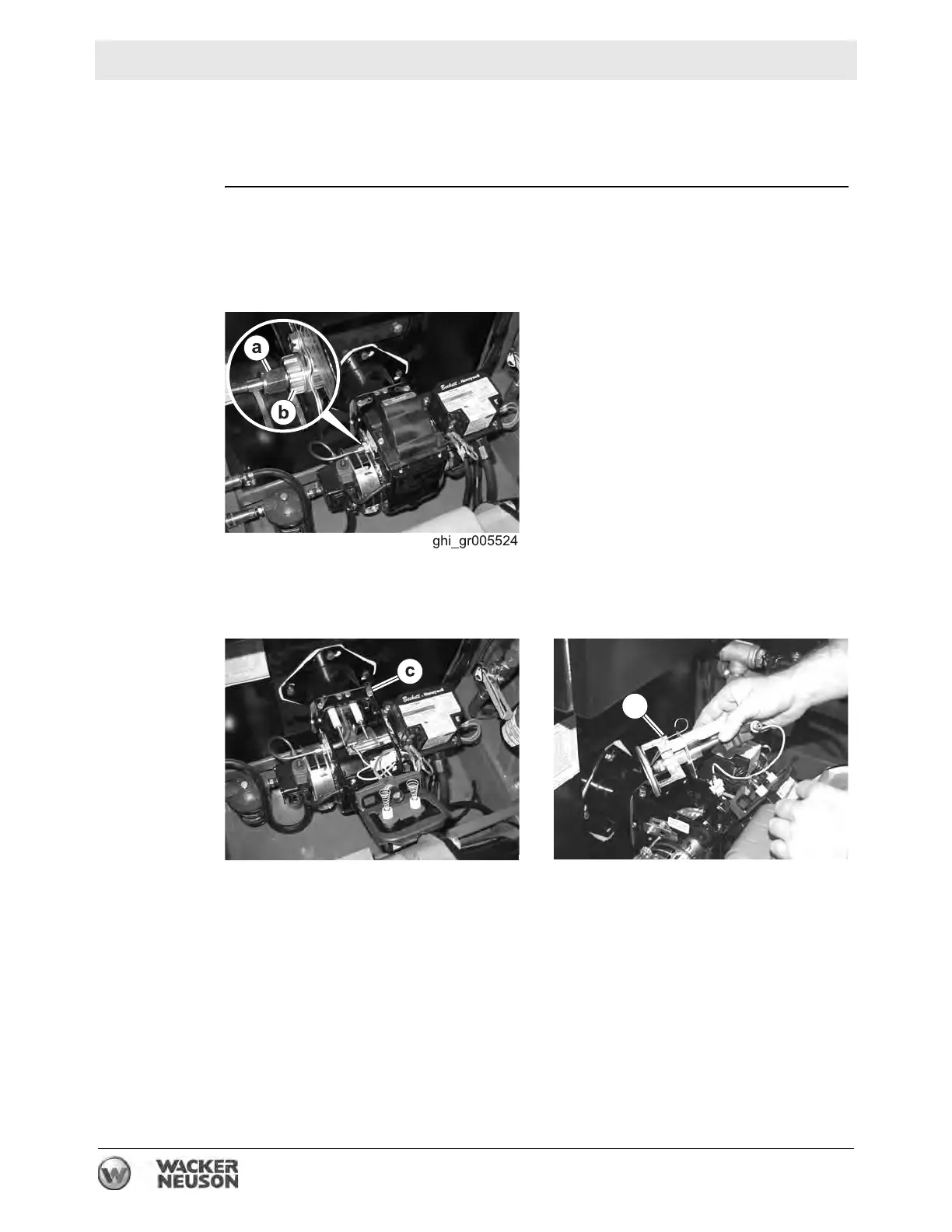

6.1 Adjusting the Burner Electrodes
Requirements
Power supplies disconnected
Measuring device
Procedure
Follow the procedure below to check the electrodes.
1. Shut down the machine and disconnect the power supplies.
2. Remove the copper fuel line (a) between the fuel pump and the burner housing.
Note: Only remove the fuel fitting closest to the burner housing.
3. Remove the splined nut (b) that is seated against the escutcheon plate.
NOTICE: Handle the splined nut with care. It is easily damaged.
4. Loosen tabs (c) and hinge back the igniter cover.
.
5. Disconnect the wiring to the electrode assembly.
6. Maneuver the electrode-nozzle assembly (d) up and out of the burner.
This procedure continues on the next page.
wc_gr008113
wc_gr008112
d
To Next Page
