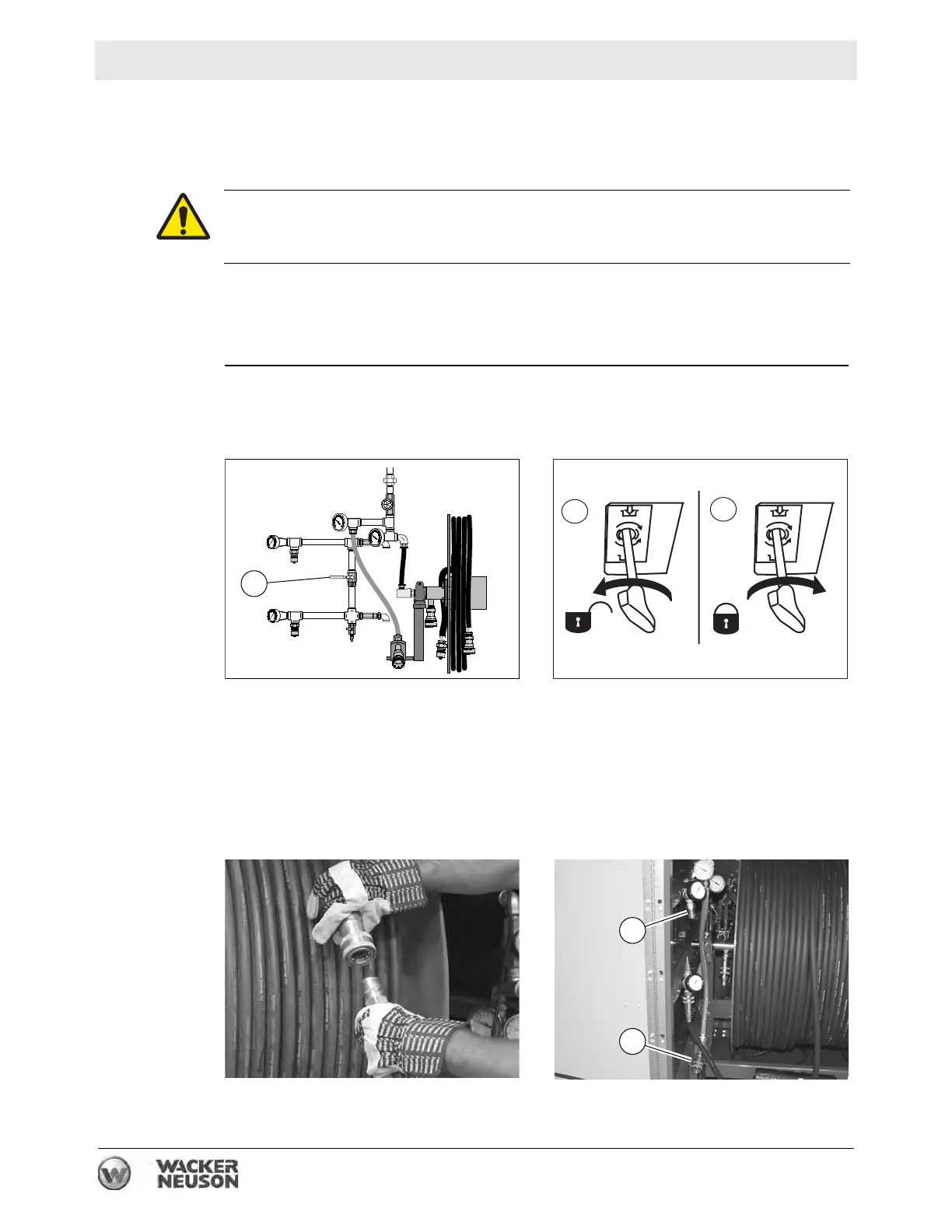

4.16 Positioning the Hoses and Operating the Machine
Prerequisites
“Pre-Starting” checks completed. See topic Pre-Starting Checks.
HTF preheated. See topic Preheating the HTF and topic Initiating HTF Flow.
NOTICE: This machine uses two hose loops during operation (curing, thawing,
heating). The hose loops must be disconnected from each other before operating
the machine. Do not turn on both pumps with the hoses connected to each other.
Unwind and
position the
hoses
Perform the procedure below to unwind and position the hoses.
Note: Unwind hose loop 1 with pump 1 turned on.
1. Close the cross connect valve (4).
2. Turn the hose reel brake T-handle counterclockwise (a) to release the brake.
3. Unwind hose loop 1 (position hose loop 1 in the application area while
unwinding) until the quick connect coupling that connects loop 1 with loop 2 is
exposed. Then, turn off pump 1.
4. Allow the pressure to drop to 0 psig.
5. Disconnect loop 1 from loop 2.
6. Connect loop 1 (male quick connect) to the return port (c).
CAUTION
Hoses may be very hot. You may be burned if proper precautions are not taken.
f Wear hand protection when handling hoses and hot components.
