Accessories E 2200, E 3000ES
68 wc_tx001668gb.fm
5.3 Connecting the HX 100 or HX 30 HEAT XCHANGER™
Requirements
Machine stopped
One HEAT XCHANGER (HX 100 or HX 30)
Hose: For runs longer than 12 m (40 ft), 2 pieces of 5/8-in. ID with quick-connect
fittings
Limitations

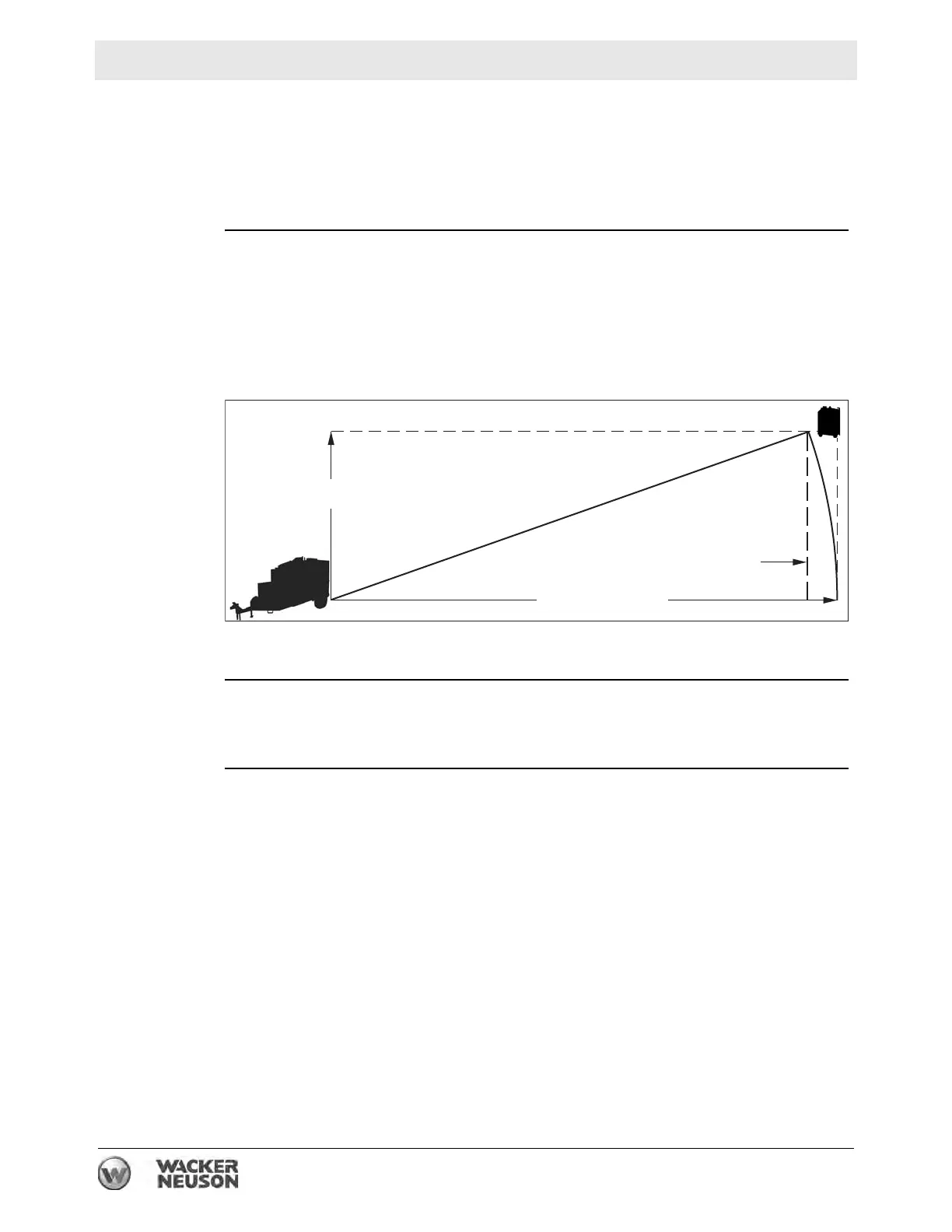

Maximum run (horizontal distance from HX to machine): 228 m (750 ft)
Maximum rise (vertical distance of HX above machine): 76 m (250 ft)
Maximum run at maximum rise: 215 m (707 ft)
Note: The farther an HX is positioned from the parent machine, the more heat will
be lost through the hose. This may affect HX performance.
NOTICE: Disconnect both surface heating hose loops before connecting the
HEAT XCHANGERS. The HEAT XCHANGERS require all HTF flow from both
pumps to perform at their rated capacity.
Procedure
Perform the procedure below to connect the HEAT XCHANGER to the machine.
1. Stop the parent machine temporarily.
2. Disconnect both surface heating hose loops from the machine before
connecting the HEAT XCHANGERS.
This procedure continues on the next page.
0 – 76 m (250 ft)
0 – 228 m (750 ft)
0 – 215 m (707 ft)
wc_gr008096
To Next Page
