Wacker Neuson E 2200 User Manual

Burner Setup E 2200, E 3000ES
86 wc_tx001669gb.fm

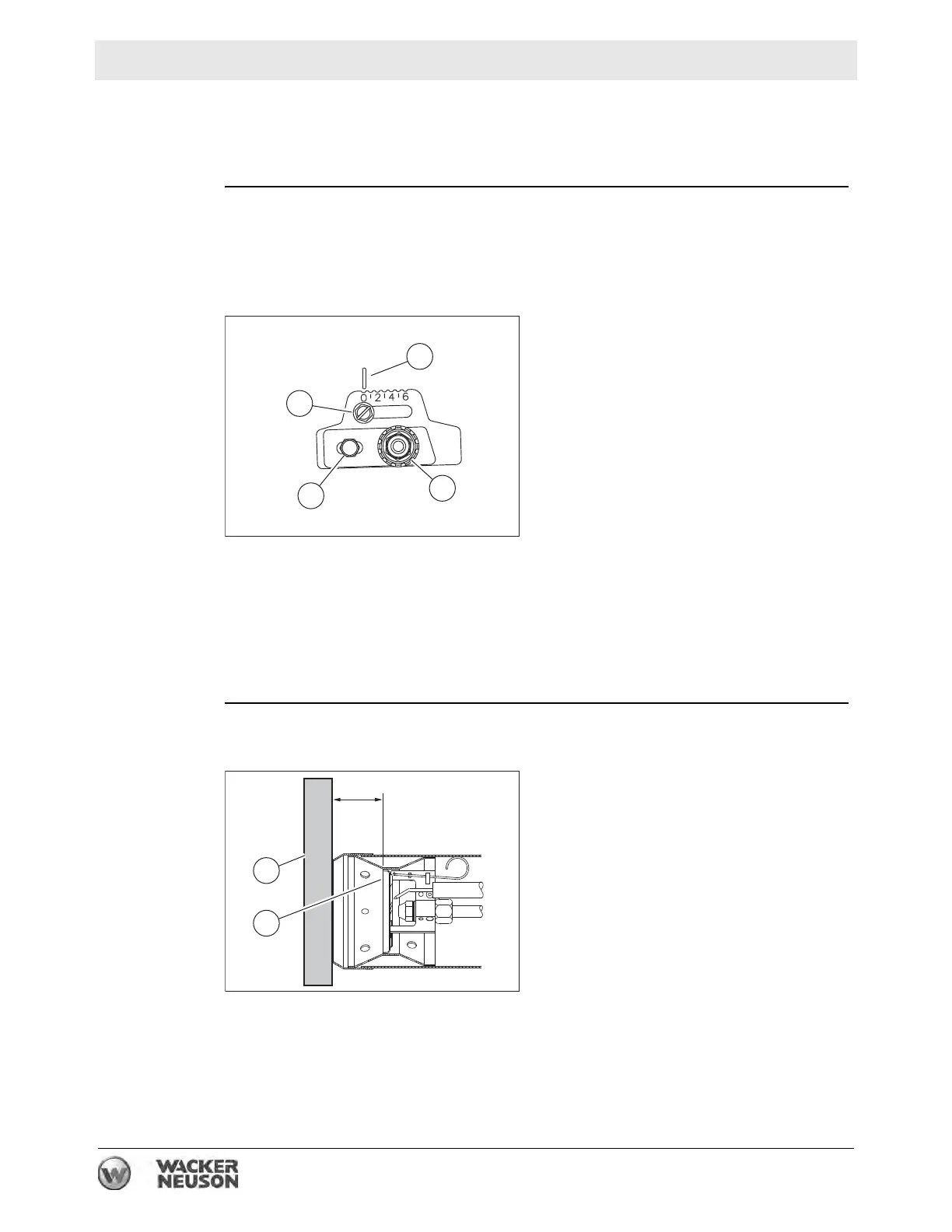

6.3 Setting the “Z” Distance on V1-Style Heads
Requirements  Burner removed from the machine
 T501 gauge or straight edge and measuring device
Preliminary
steps
Follow the procedure below to set the “Z” distance on V1-style heads.
1. Remove the burner from the machine.
2. Disconnect the copper fuel line from the nozzle assembly.
3. Loosen the splined nut
(a).
4. Loosen the hex head screw (b).
5. Loosen the acorn nut (c).
6. Move the head adjusting plate until “0” lines up with the indicator (d) on the
housing. Tighten the hex head screw (b).
7. Set the “Z” distance. See below.
“Z” distance Perform the procedure below to measure the “Z” distance.
1. Place a straight edge (x) on the end of the air tube.
2. Adjust the nozzle assembly until the distance between the end of the head (y)
and end of the air tube is 1-3/4 inches (44 mm).
3. Tighten the acorn nut.
This procedure continues on the next page.
wc_gr008105
a
c
b
d
1-3/4 in.
44 mm
wc_gr008103
x
y
