5.6 Combining the Machine with Two HHS and Two DPP (E 2200 only)
Requirements
Machine stopped
Two Hose Handling Systems (HHS)
Two Dual Pump Packs (DPP)
Two 2–1 adapters
One Auxiliary Pump Panel (APP). See topic Mounting the Auxiliary Pump Panel
Procedure
Perform the procedure below to connect two HHS and two DPP to the machine.
4. Unwind and position the hose of the parent machine as normal (x).
5. Connect both 2 – 1 adapters (a
1
and a
2
) to the return ports (b).
6. Position the Hose Handling Systems and the Dual Pump Packs near the
machine.
7. Connect the DPP1 supply hose (c) to accessory supply valve (1). Then, open
accessory supply valve (1).
HHS 1 Hose
Loop 1
1. Connect HHS hose loop 1 (h
1
) to adapter (a
1
).
2. Unwind the HHS hose loop 1 and position it within the application area.
3. Disconnect HHS hose loop 1 from HHS hose loop 2.
4. Connect HHS hose loop 1 to a discharge port (g
1
) of the DPP1.
HHS 1 Hose
Loop 2
1. Connect HHS hose loop 2 (h
2
) to adapter (a
1
).
2. Continue to unwind HHS hose loop 2 and place HHS hose loop 2 within the
application area.

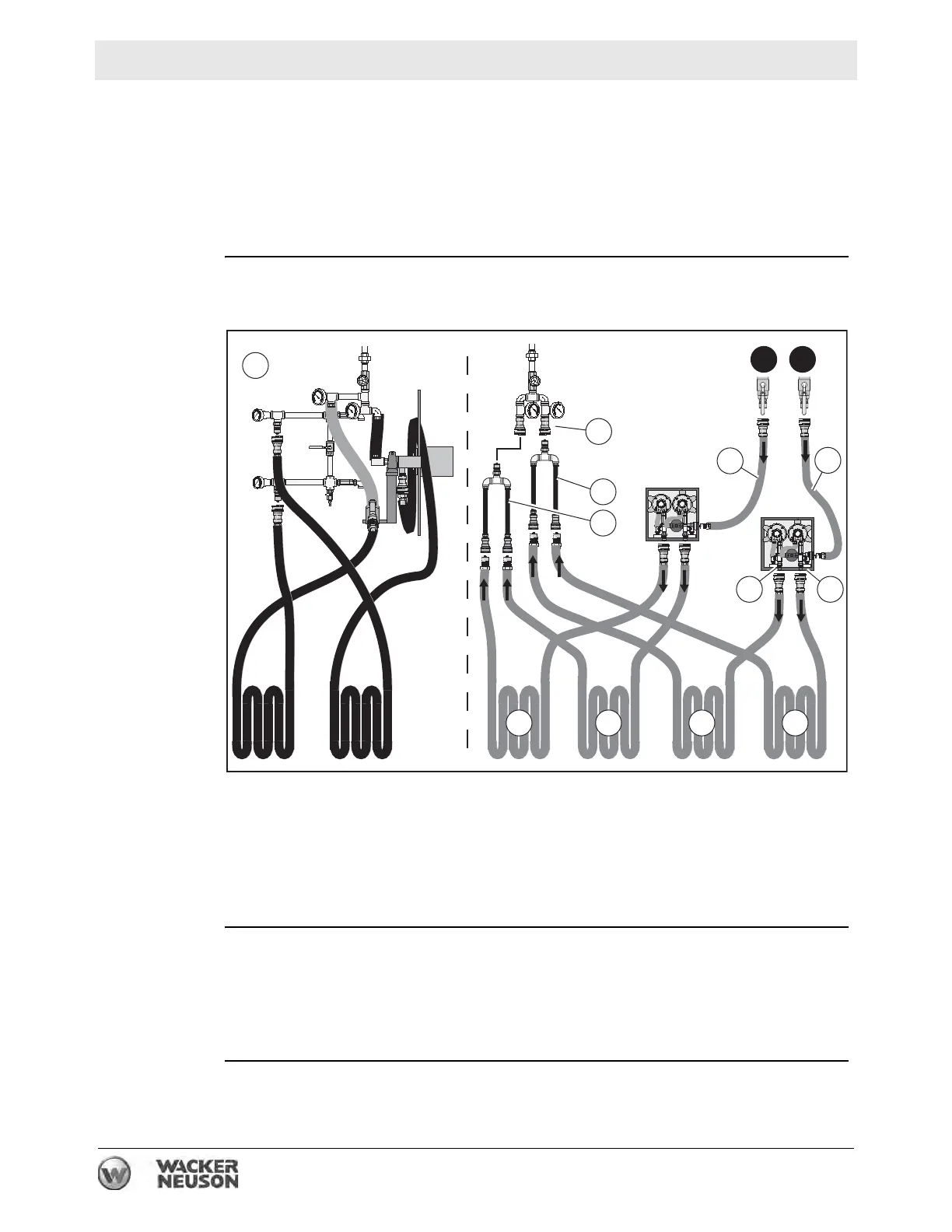

wc_gr008082
12
x
h
1
h
2
h
3
h
4
b
d
c
DPP1
DPP2
g
1
g
2
a
2
a
1
