Accessories E 2200, E 3000ES
72 wc_tx001668gb.fm

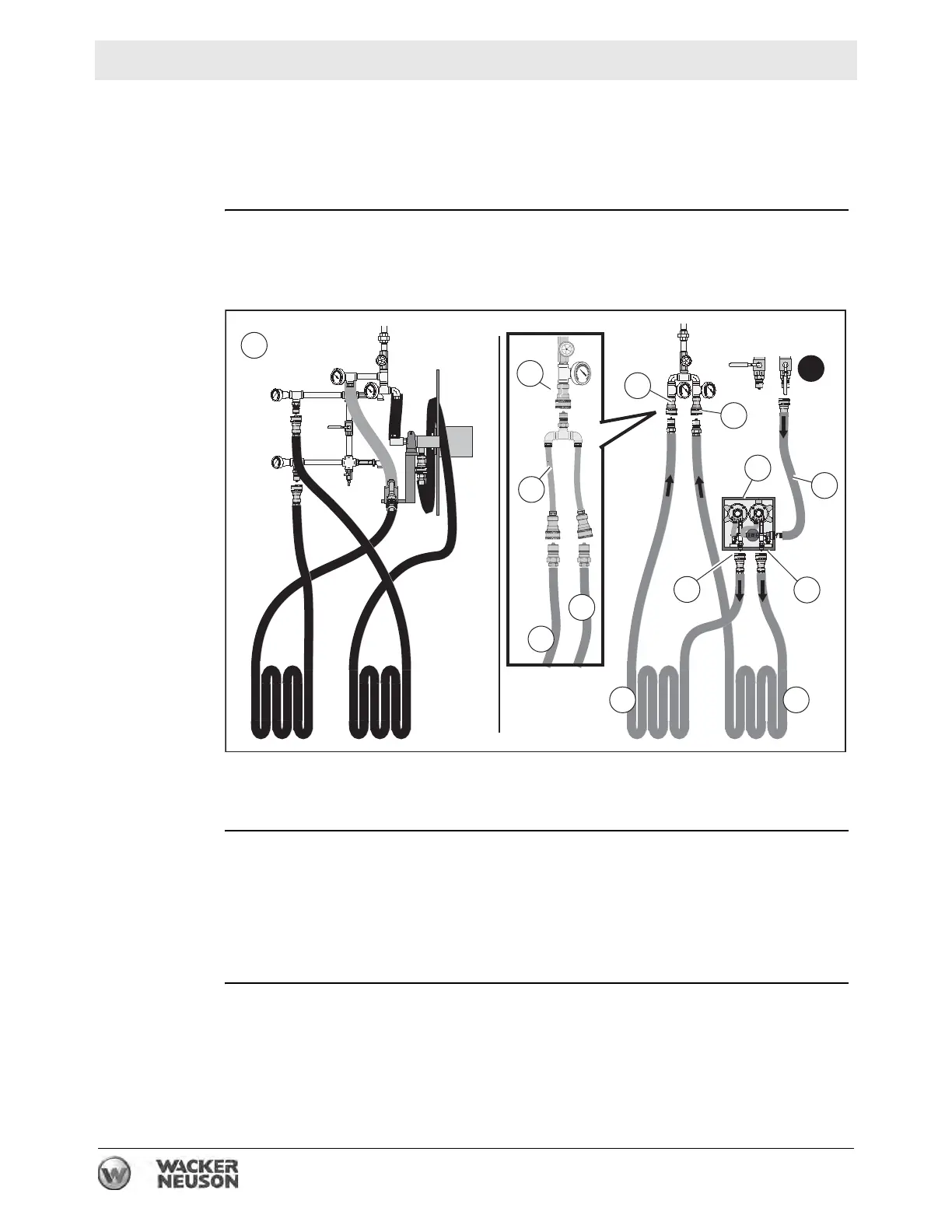

5.5 Combining the Machine with One HHS and One DPP
Requirements  Machine stopped
 Hose Handling System (HHS)
 Dual Pump Pack (DPP)
Procedure Perform the procedure below to connect an HHS and a DPP to the machine.
1. Unwind and position the hose of the parent machine as normal (x).
2. Position the HHS and the DPP (e) near the machine.
3. Connect the DPP supply hose (a) to accessory supply valve (1). Then, open
accessory supply valve (1).
HHS Hose
Loop 1
1. Connect HHS hose loop 1 (f
1
) to the accessory return line (c
1
). On E 3000ES
machines, use a 2–1 adapter (h).
2. Unwind HHS hose loop 1 and position it within the application area.
3. Disconnect HHS hose loop 1 from HHS hose loop 2.
4. Connect HHS hose loop 1 (f
1
) to a discharge port (g
1
) of the DPP.
HHS Hose
Loop 2
1. Connect HHS hose loop 2 (f
2
) to the other accessory return line (c
2
).
2. Continue to unwind HHS hose loop 2 and place HHS hose loop 2 within the
application area.
3. Remove hose loop 2 from the HHS and store the HHS in a secure location.
4. Connect HHS hose loop 2 (f
2
) to the other discharge port (g
2
) of the DPP.
wc_gr007819
1
x
f 1
c 1
c 1
c 2
f 2
g 1
g 2
a
e
h
E 3000ES
f 2
f 1
