6.2 Replacing the Burner Nozzle
Prerequisites  Power supplies disconnected
 Machine cool
Removal Follow the procedure below to remove the burner nozzle.
1. Disconnect the power supplies.
2. Remove the copper fuel line (a) between the fuel pump and the burner housing.
3. Remove the splined knob (b) that is seated against the escutcheon plate.
Note: Handle the splined knob with care. It is easily damaged.
4. Loosen tabs (c) and hinge back the igniter cover.
.
5. Disconnect the preheater wiring.
6. Maneuver the electrode-nozzle assembly (d) up and out of the burner.
This procedure continues on the next page.

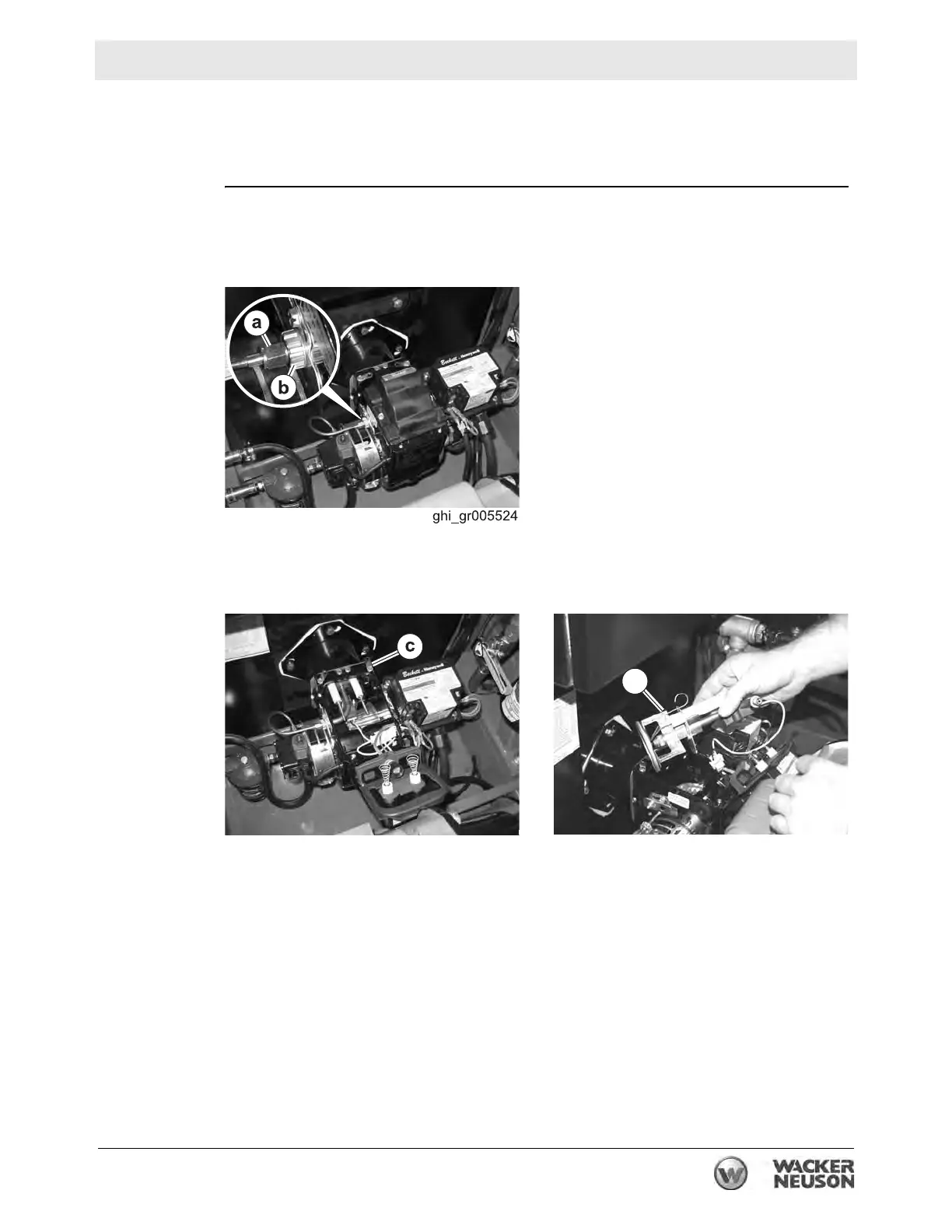

wc_gr008112
d
wc_gr008113
