Accessories E 2200, E 3000ES
66 wc_tx001668gb.fm
5.2 Connecting the HX 200 or HX 60 HEAT XCHANGER™
Requirements  Machine stopped
 One HEAT XCHANGER (HX 60 or HX 200)
 Hose: 2 pieces of 5/8-in. ID or 1-in. ID with quick-connect fittings

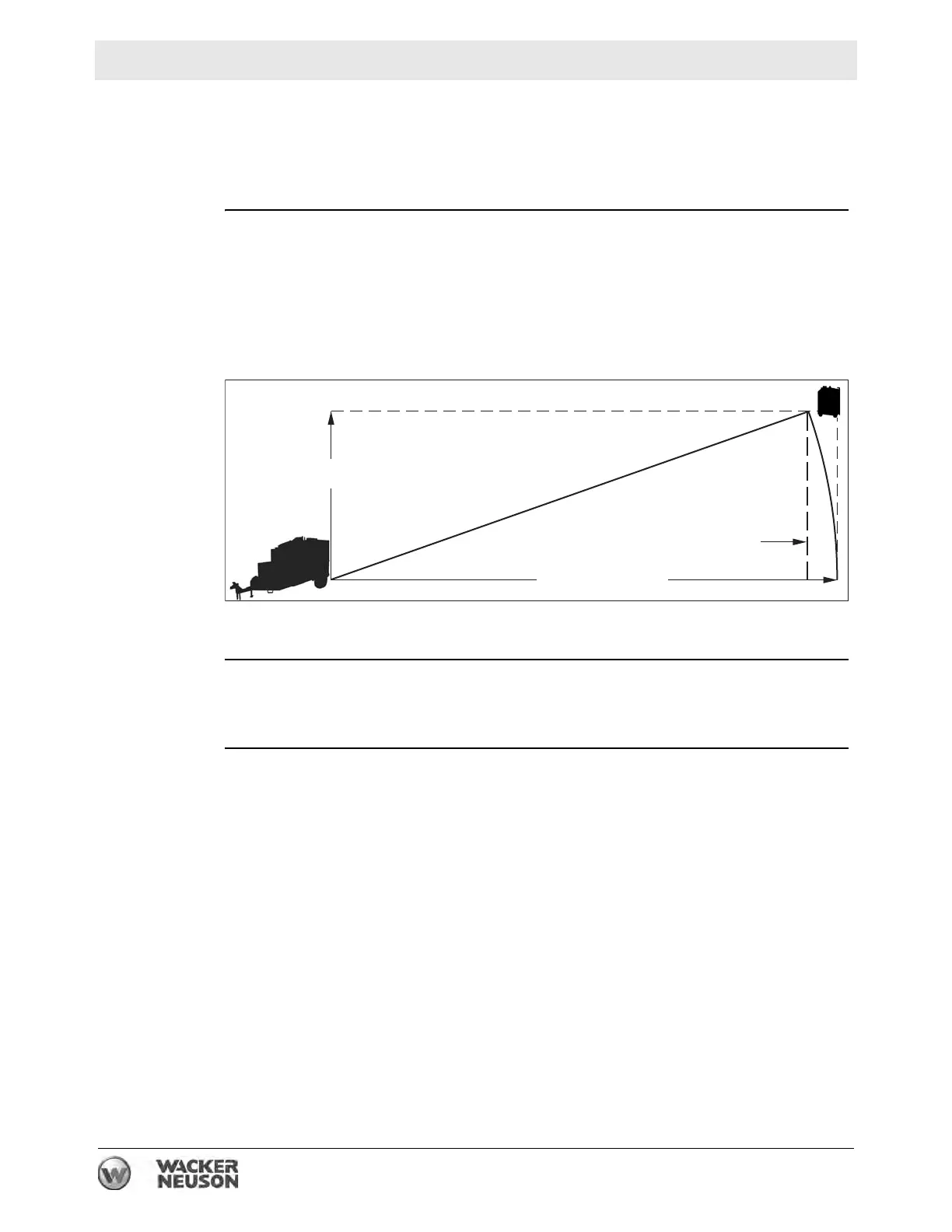

Limitations  Maximum run (horizontal distance from HX to machine): 228 m (750 ft)
 Maximum rise (vertical distance of HX above machine): 76 m (250 ft)
 Maximum run at maximum rise: 215 m (707 ft)
Note: The farther the HX is positioned from the parent machine, the more heat will
be lost through the hose. This may affect HX performance.
NOTICE: Disconnect both surface heating hose loops before connecting the
HEAT XCHANGER. The HEAT XCHANGER requires all HTF flow from both
pumps to perform at its rated capacity.
Procedure Perform the procedure below to connect the HEAT XCHANGER to the machine.
1. Stop the parent machine temporarily.
2. Disconnect both surface heating hose loops from the machine before
connecting the HEAT XCHANGER.
This procedure continues on the next page.
0 – 76 m (250 ft)
0 – 228 m (750 ft)
0 – 215 m (707 ft)
wc_gr008096
