Control Panel
Xerox WorkCentre 5016/5020 User Guide 23
<Paper Supply> button
The <Paper Supply> button has the following two functions.
Selecting a tray
Press this button to select a tray for a copy
job. The Machine Diagram (mimic) shows
you which tray is currently selected. Press
this button repeatedly until the desired tray
is lit on the Machine Diagram (mimic).
Changeover sequence:
Tray 1 & Tray 2 (Automatic Paper
Selection), Tray 1, Tray 2, Bypass Tray
Tray 1 & Tray 2 (Automatic Paper Selection)
The machine automatically selects paper that is loaded in either Tray 1 or Tray 2.
Note • This option is only available when using the Document Feeder for the machines that are
fitted with the optional Paper Tray 2.
• If the Automatic Paper Selection (menu number: 7) is enabled in the system settings, this
option is automatically selected when a document is loaded in the Document Feeder. For
information on the system settings, refer to "System Settings" (P.123).
Tray 1
Uses paper that is loaded in Tray 1.
Tray 2
Uses paper that is loaded in Tray 2.
Note • This option is only available when Paper Tray 2 (optional) is fitted on the machine.
Bypass Tray
Uses paper that is loaded in the Bypass Tray.
Entering the Paper Setting Mode
Hold down this button for four seconds to enter the Paper Setting Mode. After loading
paper in any trays, you must enter the Paper Setting Mode to specify the size and
orientation of the paper.
Once the machine enters the Paper Setting Mode, press the <Display Switch> button
to scroll through paper sizes.
Changeover sequence is shown below. It shows what appears in the Display followed
by an actual size of paper in parentheses.
Changeover sequence:
inch: 11L (8.5 x 11” LEF), 11 (8.5 x 11” SEF), 134 (8.5 x 13.4” SEF), A3 (A3 SEF),
A4L (A4 LEF), A4 (A4 SEF), b4 (B4 SEF), b5L (B5 LEF), b5 (B5 SEF),
55 (5.5 x 8.5” SEF), A5 (A5 SEF), 17 (11x 17” SEF), 14 (8.5 x 14” SEF),
13 (8.5 x 13” SEF)
mm: A4L (A4 LEF), A4 (A4 SEF), b4 (B4 SEF), b5L (B5 LEF), b5 (B5 SEF),
C8 (8K SEF), 16L (16K LEF), 16S (16K SEF), A5 (A5 SEF), 17 (11 x 17” SEF),
14 (8.5 x 14” SEF), 13 (8.5 x 13” SEF), 11L (8.5 x 11” LEF), 11 (8.5 x 11” SEF),
55 (5.5 x 8.5” SEF), A3 (A3 SEF)

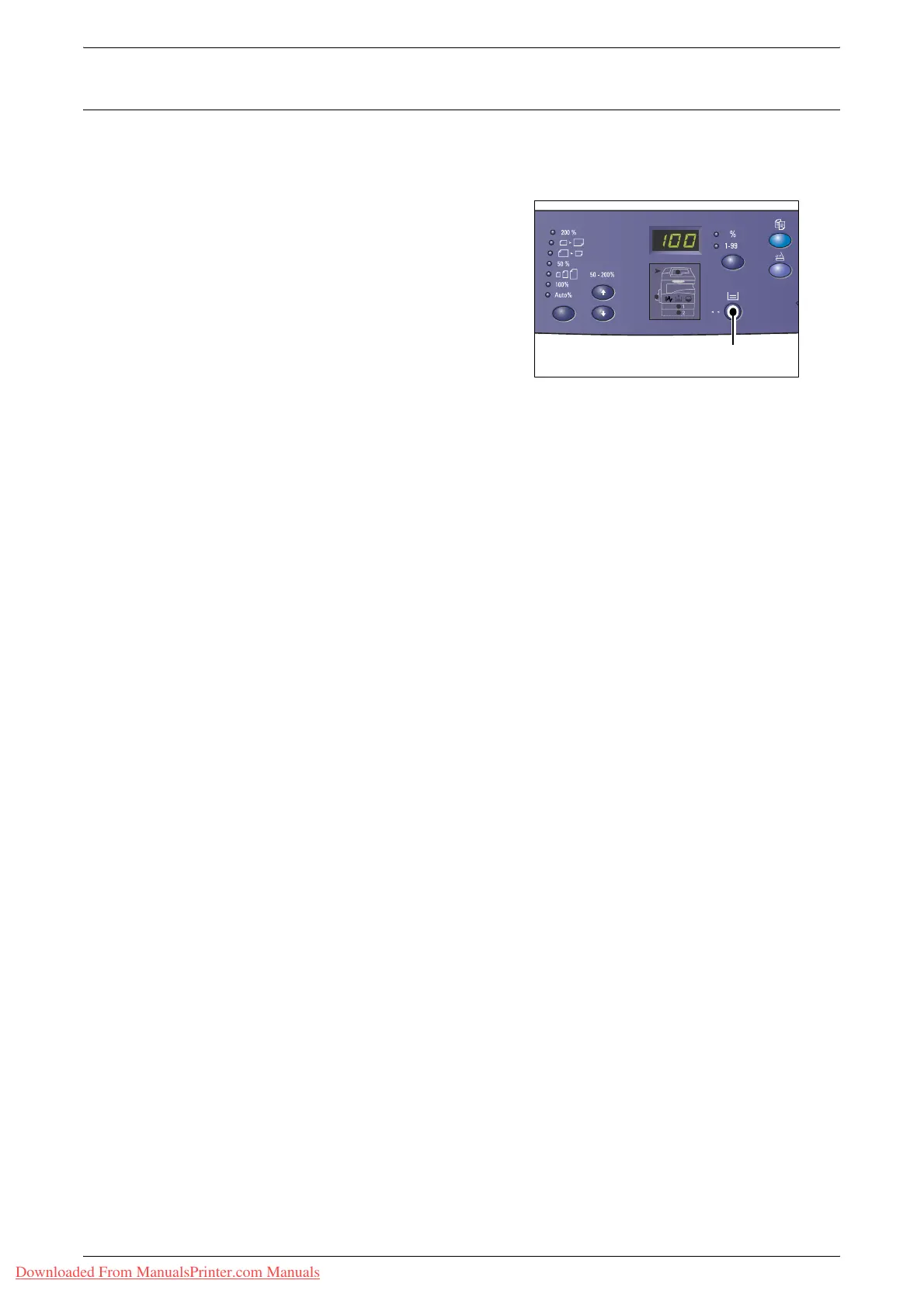

<Paper Supply>
button
