Stress state
of cable
◆ Do not "bend" or apply "tension" to the wire, especially the core of the signal line is
0.2mm or 0.3mm, very thin, so when wiring (using), do not make it too tight.
Processing
of
Connector
Part
For the connector part, please pay attention to the following items:
◆When connecting the connector, please make sure that there is no foreign matter such as
garbage or metal sheets in the connector.
◆When connecting the connector to the servo motor, it is necessary to connect the
connector from the side of the main circuit cable of the servo motor first, and the
grounding wire of the main cable must be connected reliably. If one side of the encoder
cable is connected first, the encoder may fail due to the potential difference between PE.
◆When wiring, please make sure that the pins are arranged correctly.
◆Connectors are made of resin. Do not apply shock to avoid damaging the connector.
◆When carrying out the operation under the condition that the cable remains connected, it
is necessary to grasp the main body of the servo motor. If only the cable is seized for
handling, it may damage the connector or pull the cable off.
◆If bending cable is used, full attention should be paid to the wiring operation and stress
should not be applied to the connector part. If the stress is applied to the connector part,
the connector may be damaged.

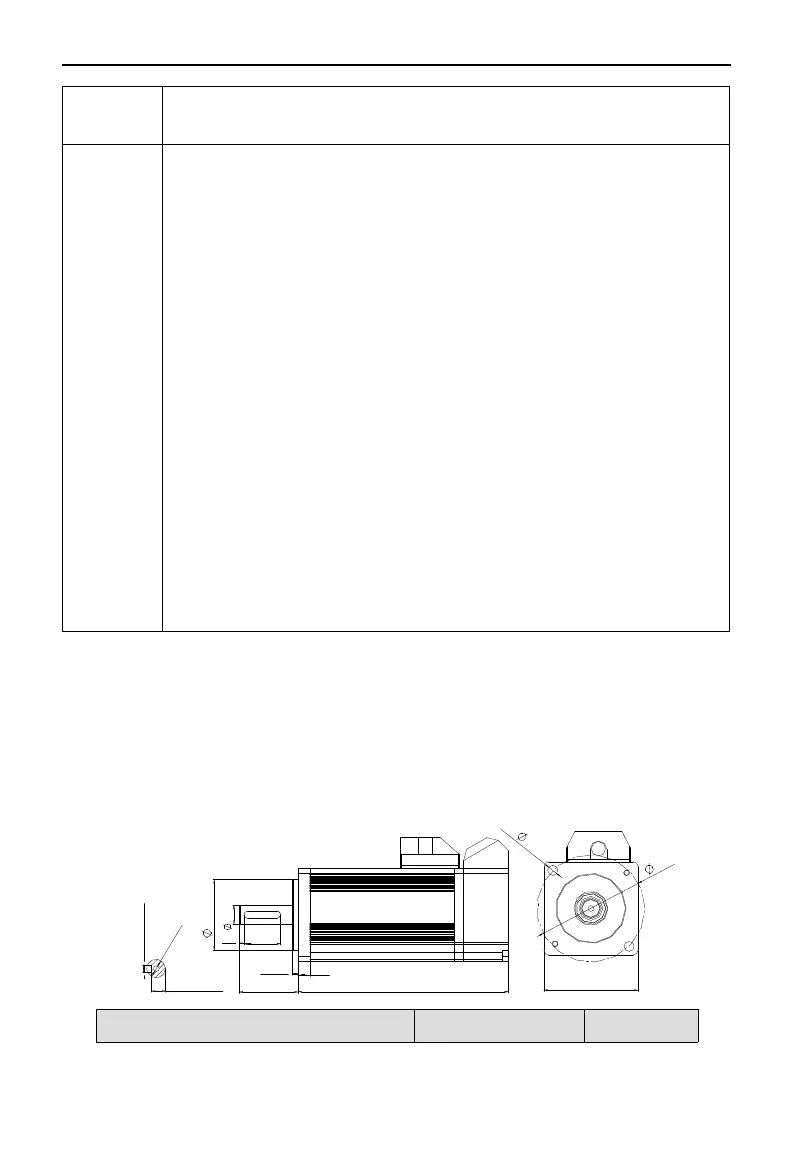

2-3.Servo motor dimension
40 series motor installation dimension Unit: mm
MS5 motor
