Digit data Display contents
Near signal width: P5-06
P5-40
Rotate
detection（/TGON）
When the motor speed is higher than the rotating speed, turn on the
lamp.
Rotation detection speed: P5-03 (unit: rpm)
2. short code display content

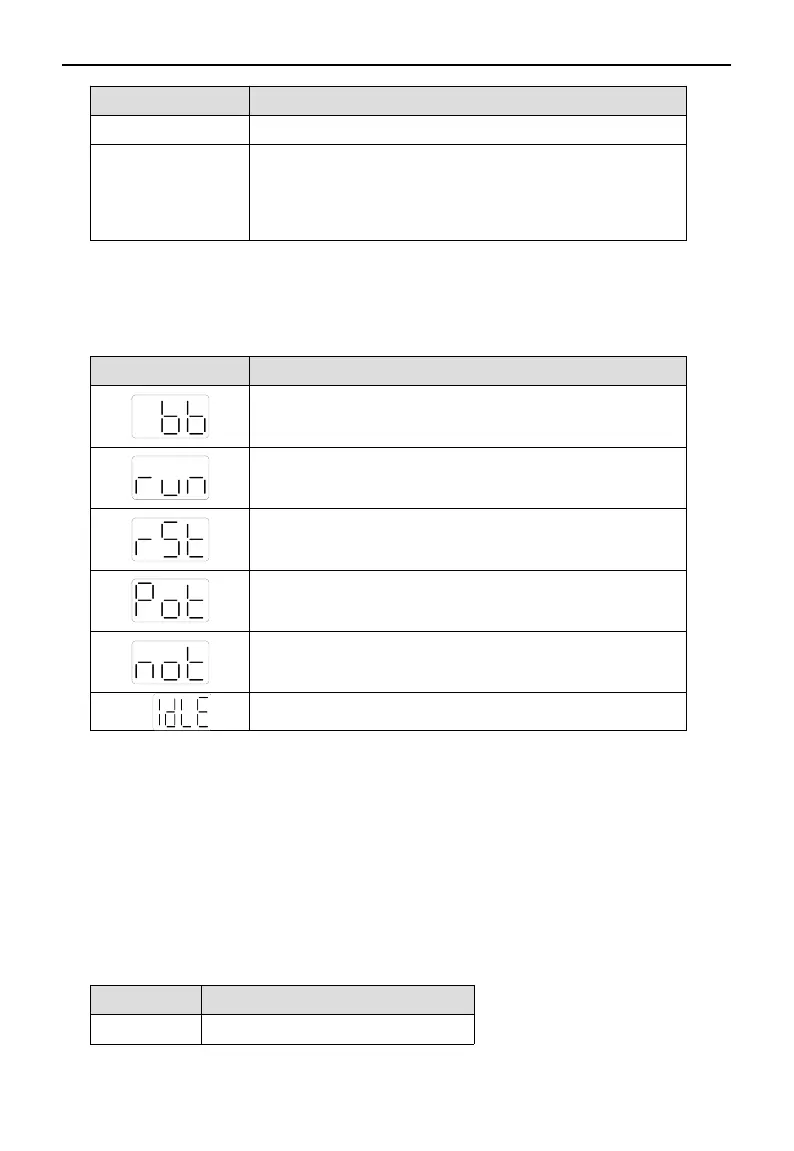

Short code Display contents
Standby status
Servo OFF status. (The motor is in a non-electrified state)
In operation
Servo enabling state. (The motor is on-line)
Need reset status
Servo needs to be re-energized
Forbidden forward drive state
P-OT ON status. Refer to Section 5.2.4, "Overrun Prevention".
Forbidden reversal drive state
N-OT ON status. Refer to Section 5.2.4, "Overrun Prevention".
Control mode 2 is vacant.
4-2.Servo parameters
4-2-1.PX-XX parameters
See Appendix parameters for details.
4-2-2.UX-XX monitoring parameters
See Appendix parameters for details.
4-2-3.FX-XX auxiliary function parameters
F0-XX
Function code Explanation
F0-00 Alarm clear
