Xinje DS5K Series User Manual

the action of large ring width is slow.

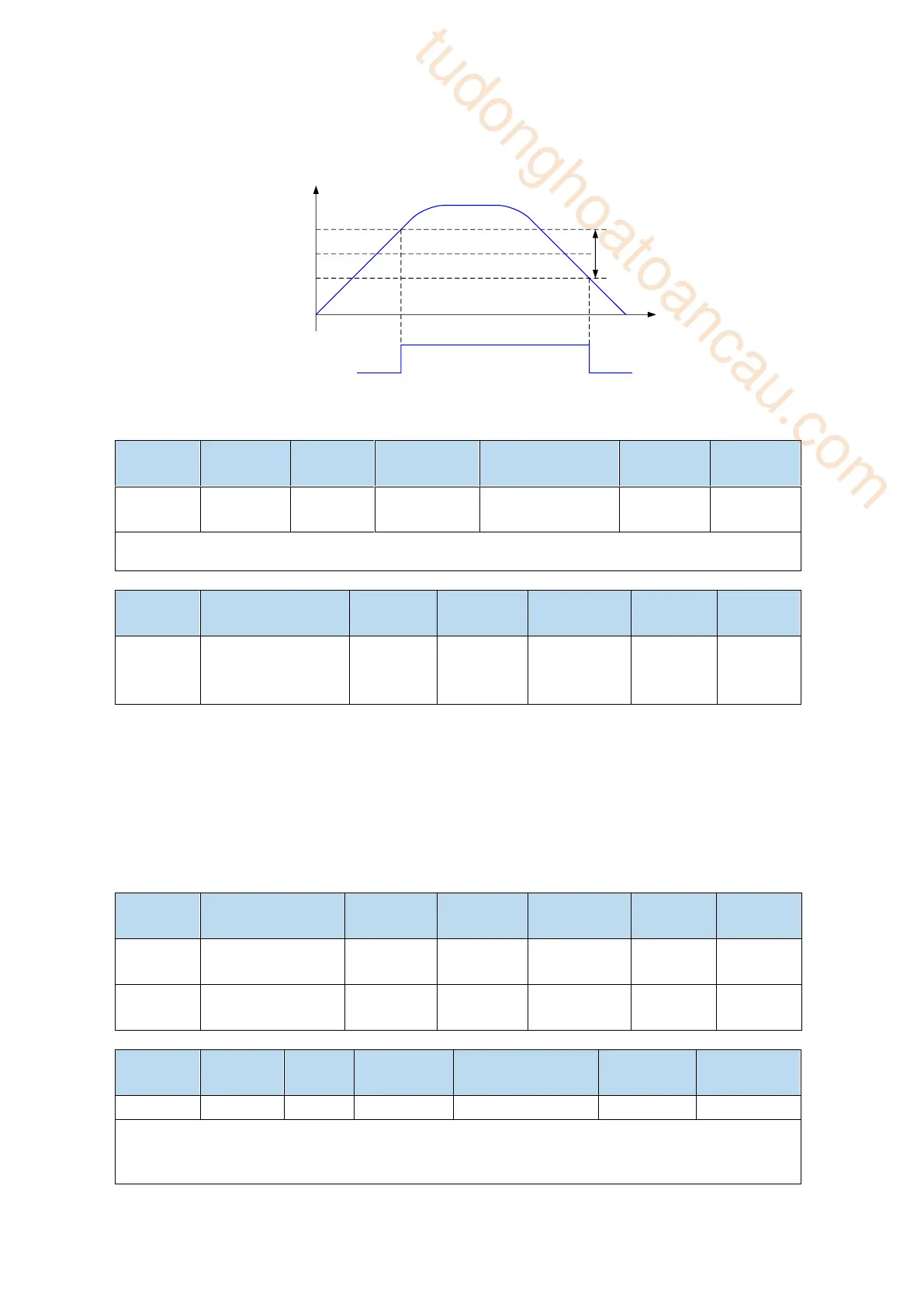

It should be noted that the rotation detection speed (P5-03), the same speed detection speed (P5-04), the
arrival detection speed (P5-05), all contain 10 rpm hysteresis. For example, the rotation detection speed
P5-03 is set to 50, and the rotation detection/TGON output port is SO3.
rpm
/TGON
60rpm
50rpm
40rpm
Ring
width
ON
OFFOFF
5.7.5.3 Same speed detection (/V-CMP)
Parameter
Signal
Default
setting
Suitable
mode
Meaning
Modify
Effective
P5-39
/V-CMP
n.0000
3, 4, 7
Same speed
detection
Anytime
At once
Defaulted is not distribute to the terminals. Range: 0000-0014. Distribute to output terminal through
P5-39. When it set to 0002, it means output from SO2.
Parameter
Meaning
Default
setting
Unit
Range
Modify
Effective
P5-04
Same speed
detection signal
width
50
rpm
0～10000
Anytime
At once
There is default 10rpm hysteresis loop, please refer to chapter 5-12-3 for hysteresis loop.
5.7.5.4 Warn output (/WARN)
Set the alarm output threshold, when the current speed is higher than the warning speed, output /
WARN.
Parameter
Meaning
Default
value
Unit
Range
Modify
Effective
P3-19
Forward warning
speed
Motor
related
rpm
0～65535
Servo bb
At once
P3-20
Reverse warning
speed
Motor
related
rpm
0～65535
Servo bb
At once
Parameter
Signal
Default
setting
Suitable
mode
Meaning
Modify
effective
P5-45
/WARN
n.0000
All
Warning output
Anytime
At once
1. No terminal output signal is assigned by default. The parameter range is 0000-0014, which is
allocated to other output terminals through parameter P5-45.
2. When a warning occurs, the servo unit only outputs the warning and will not be forced to set OFF.
